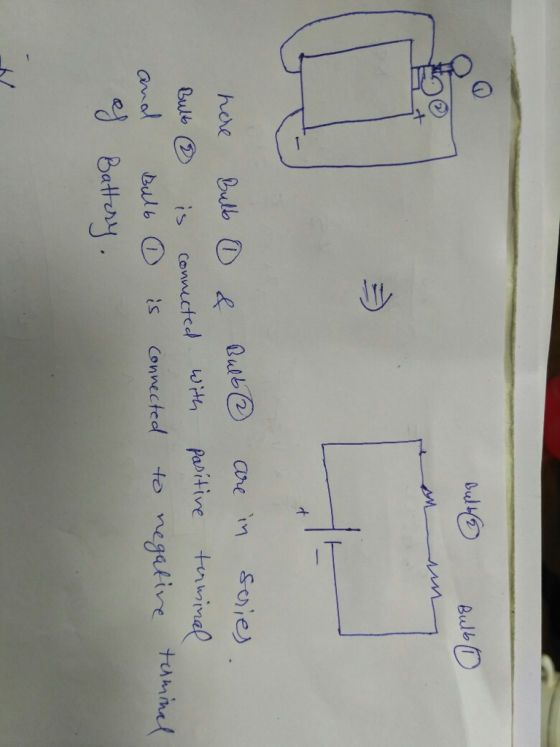

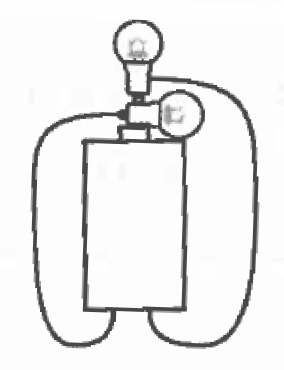

Draw the diagram of the electric curcuit.
Homework Answers
7. Draw a diagram of a proton and electron in a uniform electric field. Include electric...
7. Draw a diagram of a proton and electron in a uniform electric field. Include electric field lines for the external electric field and velocity vectors for both charges (the length of the velocity vector should imply magnitude of velocity
Draw and label a vector diagram for the electric field at pointA due to the...
Draw and label a vector diagram for the electric field at point
A due to the point charges. Find the magnitude and
direction of the net electric field at A. [magnitude
is 6.99x103N/C,
don’t forget direction]
On the diagram below, draw arrows starting at points A,B, and C to indicate the direction of the electric field produce...
On the diagram below, draw arrows starting at points A,B, and C
to indicate the direction of the electric field produced at each
point by the positive charge (represented by the ree dot).
On the diagram below, draw arrows starting at points A,B, and C to indicate the direction of the electric field produced at each point by the positive charge (represented by the green dot).
On the diagram below, draw arrows starting at points A, B, and C to indicate the direction of the electric field produc...
On the diagram below, draw arrows starting at points A, B, and C
to indicate the direction of the electric field produced at each
point by the negative charge (represented by the green dot).
On the diagram below, draw arrows starting at points A, B, and C to indicate the direction of the electric field produced at each point by the negative charge (represented by the green dot).
Draw and label a vector diagram for the electric field at point A (make sure you...
Draw and label a vector diagram for the electric field at point
A (make sure you have an arrow for each of the other charges, even
any that cancel). Calculate the magnitude and angle of
the net electric field at A. [1.22x109N/C,
60.6° (be sure to include, angle from what?]
11mm q2 13uC 55° 8.8mm 8.8mm 55 3 13uC 6.5mm11mm
sics II online lab: Electric Field & Electric Potennial 1. Given the charge diagram shown below,...
sics II online lab: Electric Field & Electric Potennial 1. Given the charge diagram shown below, draw the shape of an equipotential line of
Draw an impedance diagram for thr electric power system shown below showing all the impedances in...
Draw an impedance diagram for thr electric power system shown below showing all the impedances in per unit on a 100 MVA base. Choose 20 kV, as the voltage base for generator. The three-phase power and line ratings are given below. Calculate the short circuit current at bus No. 2.
Draw a diagram of the electric field between parallel plates. Take potential difference of 1000 volts...
Draw a diagram of the electric field between parallel plates. Take potential difference of 1000 volts over 4 centimeters. Find the electric field intensity. Find the charge density on the positive plate. Find the force on the proton or electron between the plates. When released from rest either particle has KE = 1000 eV at the opposite plate. Give the KE in Joules and find the speed of the electron. Find the speed of the proton. What would be the...
Please help me understand the science behind the "world's simplest electric train". 1) Draw a diagram...
Please help me understand the science behind the "world's simplest
electric train".
1) Draw a diagram illustrating
the key settings,including battery,magnet and tunnel
2) Explain what drives the train
to move, explain the role of the battery , magnet and tunnel
wires
3) what is the main physics
behind it? What kinds of principles underlying the movement of the
train? please connect explanations to diagram to help
understand.
SUPER GALKALINE 9704 LATIV We were unable to transcribe this image
draw and label each electric field vector acting on the bottom right corner (at the dot)...
draw and label each electric field vector acting on the bottom
right corner (at the dot) in the diagram below. then solve for the
magnitude and direction of the net electric field at this
point
4. Draw and label each electric field vector acting on the bottom right corner (at the dot) in the diagram below. Then solve for the magnitude and direction of the net electric field at this point. qi 4.0 nC 3.0 cm 4.0 cm 3 2.0...
7. Draw a diagram of a proton and electron in a uniform electric field. Include electric field lines for the external electric field and velocity vectors for both charges (the length of the velocity vector should imply magnitude of velocity
Draw and label a vector diagram for the electric field at point
A due to the point charges. Find the magnitude and
direction of the net electric field at A. [magnitude
is 6.99x103N/C,
don’t forget direction]
On the diagram below, draw arrows starting at points A,B, and C
to indicate the direction of the electric field produced at each
point by the positive charge (represented by the ree dot).
On the diagram below, draw arrows starting at points A,B, and C to indicate the direction of the electric field produced at each point by the positive charge (represented by the green dot).
On the diagram below, draw arrows starting at points A, B, and C
to indicate the direction of the electric field produced at each
point by the negative charge (represented by the green dot).
On the diagram below, draw arrows starting at points A, B, and C to indicate the direction of the electric field produced at each point by the negative charge (represented by the green dot).
Draw and label a vector diagram for the electric field at point
A (make sure you have an arrow for each of the other charges, even
any that cancel). Calculate the magnitude and angle of
the net electric field at A. [1.22x109N/C,
60.6° (be sure to include, angle from what?]
11mm q2 13uC 55° 8.8mm 8.8mm 55 3 13uC 6.5mm11mm
sics II online lab: Electric Field & Electric Potennial 1. Given the charge diagram shown below, draw the shape of an equipotential line of
Draw an impedance diagram for thr electric power system shown below showing all the impedances in per unit on a 100 MVA base. Choose 20 kV, as the voltage base for generator. The three-phase power and line ratings are given below. Calculate the short circuit current at bus No. 2.
Please help me understand the science behind the "world's simplest
electric train".
1) Draw a diagram illustrating
the key settings,including battery,magnet and tunnel
2) Explain what drives the train
to move, explain the role of the battery , magnet and tunnel
wires
3) what is the main physics
behind it? What kinds of principles underlying the movement of the
train? please connect explanations to diagram to help
understand.
SUPER GALKALINE 9704 LATIV We were unable to transcribe this image
draw and label each electric field vector acting on the bottom
right corner (at the dot) in the diagram below. then solve for the
magnitude and direction of the net electric field at this
point
4. Draw and label each electric field vector acting on the bottom right corner (at the dot) in the diagram below. Then solve for the magnitude and direction of the net electric field at this point. qi 4.0 nC 3.0 cm 4.0 cm 3 2.0...
