A 4.00 A current runs through a 12-gauge copper wire (diameter 2.05 mm) and through...
A 4.00 A current runs through a 12-gauge copper wire (diameter 2.05 mm) and through a...

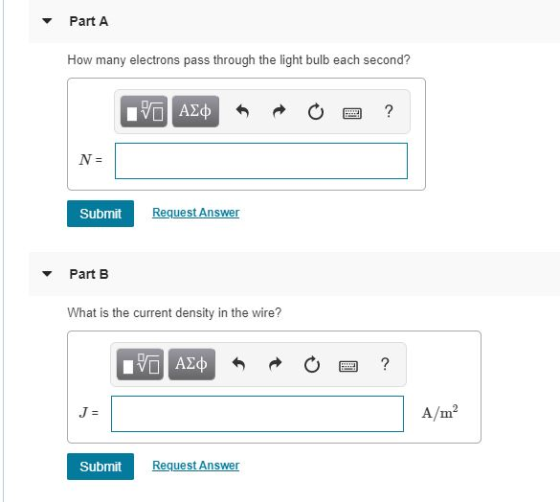

A 4.00 A current runs through a 12-gauge copper wire (diameter 2.05 mm) and through a light bulb. Copper has 8.5×1028 free electrons per cubic meter. a)How many electrons pass through the light bulb each second? b)What is the current density in the wire? c)At what speed does a typical electron pass by any given point in the wire?
A 5.00-Amp current runs through a 12 gauge - copper wire(diameter 2.05mm) and through a light...
A 5.00-Amp current runs through a 12 gauge - copper wire(diameter 2.05mm) and through a light bulb. Copper has 8.5*10^28 free electrons per cubic meter. A. How many electrons pass through the light bulb each second? B. What is the current density in the wire? C. At what speed does a typical electron pass by any given point in the wire? D. If you were to use wire of twice the diameter, which of the above answers would change? Would...
A current of 5A a runs through a 12 gauge copper wire (diameter 2.05mm) and a...
A current of 5A a runs through a 12 gauge copper wire
(diameter 2.05mm) and a light bulb. (A) how many electrons pass
through the bulb every second? (B) what is the current density in
the wire? (C) how quickly does a common electron pass through any
given point of the wire?
Una corriente de 5.00 A corre a través de un alambre de cobre de calibre 12 (diámetro, 2.05 mm) y de una bombilla. (a) ¿Cuántos electrones pasan por...
1- A 5.6 A current runs through copper wire of diameter 2.06 mm. Copper has 8.5...
1- A 5.6 A current runs through copper wire of diameter 2.06 mm. Copper has 8.5 × 1028 free electrons per cubic meter. At what speed does a typical electron pass by any given point in the wire? (Give your answer in scientific notation using m/s as unit) 2-Current passes through a solution of sodium chloride. In 0.8 s, 2.51 × 1016 Na+ ions arrive at the negative electrode and 3.95 × 1016 Cl- ions arrive at the positive electrode....
An 18-gauge copper wire (diameter 1.02 mm) carries a current with a current density of 1.40×106...
An 18-gauge copper wire (diameter 1.02 mm) carries a current with a current density of 1.40×106 A/m2 . Copper has 8.5×1028 free electrons per cubic meter Calculate the current in the wire Calculate the drift velocity of electrons in the wire.
A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 15.0 mA Part...
A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 15.0 mA Part A What is the potential difference across a 2.25 m length of the wire? EVO AED ? V Submit Request Answer Part B What would the potential difference in part A be if the wire were silver instead of copper, but all else was the same? IVO AED h ? V Submit Request Answer
A 14-gauge copper wire has a diameter of 1.684 mm. What magnitude current flows in amperes...
A 14-gauge copper wire has a diameter of 1.684 mm. What magnitude current flows in amperes when the drift velocity is 1.20 mm/s? (The density of free electrons in copper is 8.34 ✕ 1028 e−/m3.).) ____________ A
The figure shows wire section 1 of diameter D,-5.50R and wire section 2 of diameter D2-3.00R, connected by a tapered section. The wire is copper and carries a current. Assume that the current is unif...
The figure shows wire section 1 of diameter D,-5.50R and wire section 2 of diameter D2-3.00R, connected by a tapered section. The wire is copper and carries a current. Assume that the current is uniformly distributed across any cross-sectional area through the wire's width. The electric potential change Valong the length L-1.50 m shown in section 2 is 13.0 μν. The nurmber of charge carriers per unit volume is 820x 1028 m3. What is the drift speed of the conduction...
1. A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of...
1. A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of a 37.0 m long piece of such wire. (Use 1.72×10-8 Ωm for the resistivity of copper.) Use the formula for resistance remembering that the diameter is specified rather than the radius. 2. For safety, the National Electrical Code limits the allowable amount of current which such a wire may carry. When used in indoor wiring, the limit is 20.0 A for rubber insulated wire...
1.5*1020 electrons flow through a cross section of a 3.70 mm diameter iron wire in 4.00...
1.5*1020 electrons flow through a cross section of a 3.70 mm diameter iron wire in 4.00 s. The electron density of iron is n = 8.5*1028 m-3. What is the electron drift speed?
A current of 5A a runs through a 12 gauge copper wire
(diameter 2.05mm) and a light bulb. (A) how many electrons pass
through the bulb every second? (B) what is the current density in
the wire? (C) how quickly does a common electron pass through any
given point of the wire?
Una corriente de 5.00 A corre a través de un alambre de cobre de calibre 12 (diámetro, 2.05 mm) y de una bombilla. (a) ¿Cuántos electrones pasan por...
A 14.0 gauge copper wire of diameter 1.628 mm carries a current of 15.0 mA Part A What is the potential difference across a 2.25 m length of the wire? EVO AED ? V Submit Request Answer Part B What would the potential difference in part A be if the wire were silver instead of copper, but all else was the same? IVO AED h ? V Submit Request Answer
The figure shows wire section 1 of diameter D,-5.50R and wire section 2 of diameter D2-3.00R, connected by a tapered section. The wire is copper and carries a current. Assume that the current is uniformly distributed across any cross-sectional area through the wire's width. The electric potential change Valong the length L-1.50 m shown in section 2 is 13.0 μν. The nurmber of charge carriers per unit volume is 820x 1028 m3. What is the drift speed of the conduction...
