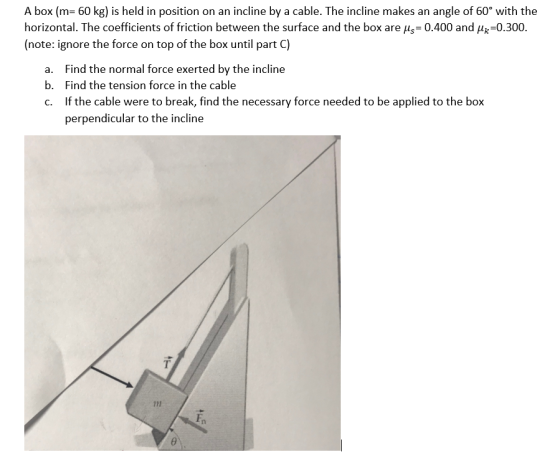

A box (m 60 kg) is held in position on an incline by a cable. The...

Question

Question

science physics

Answer 1

Answer #1

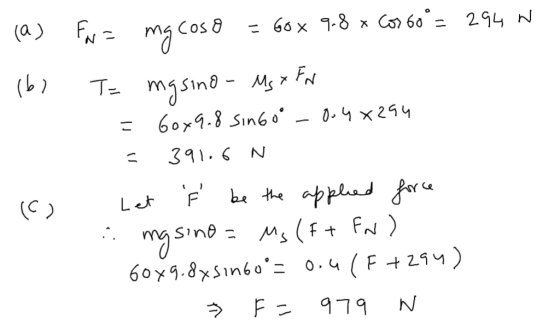

31.6 N F= 979 N

Answer 2

Similar Homework Help Questions

8. A box of mass m =22 kg is at rest on a ramp inclined at...

8. A box of mass m =22 kg is at rest on a ramp inclined at 45° to the horizontal. The coefficients of friction between the box and the ramp are Us = 0.78 and Uk = 0.65. (a) Determine the magnitude of the largest force that can be applied upward, parallel to the ramp, if the box is to remain at rest. (b) Determine the magnitude of the smallest force that can be applied onto the top of the...
A 12-kg box is released from the top of an incline that is 5.0m long and makes an angle of 40° to the horizontal

Problem 2:A 12-kg box is released from the top of an incline that is 5.0m long and makes an angle of 40° to the horizontal. A 60-N friction force impedes the motion of the box.a) What will be the acceleration of the box?b) How long will it take to reach the bottom of the incline?c) What is the coefficient of friction between box and incline?
A) A 50.0 kg box rests on a horizontal surface. The coefficients of static and kinetic...

A) A 50.0 kg box rests on a horizontal surface. The coefficients of static and kinetic friction between the box and the surface are 0.300 and 0.200, respectively. What is the friction force on the box if a horizontal 175 N push is applied to it? Explain. B) A horizontal force of 250 N is applied to the box. After the box moves a distance d from rest, the speed of the box is measured to be 6.4 m/s. use...

Two blocks slide down an incline angled at 30◦ above the horizontal, connected by a cable....

Two blocks slide down an incline angled at 30◦ above the horizontal, connected by a cable. The top block has a mass of m1 = 1 kg, and the bottom one has a mass of m2 = 2 kg. The coefficients of kinetic friction are µk1 = 0.2 (top block) and µk2 = 0.1 (bottom block). What is the tension in the cable that connects them? Please include force diagrams and components for forces where needed
An 18.0 kg box is released on a 30.0 ∘ incline and accelerates down the incline...

An 18.0 kg box is released on a 30.0 ∘ incline and accelerates down the incline at 0.300 m/s2 . a) Find the friction force impeding its motion. b) How large is the coefficient of friction?
Part 2 After reaching the top of the incline, the box of mass 1 kg is...

Part 2 After reaching the top of the incline, the box of mass 1 kg is released, and allowed to slide back down the hill of incline angle 0 20 At the halfway point, the surface of the incline becomes rough, and friction becomes important The coefficients of friction between the box and hill are μ-: 0.7 and μ.-0.5. 0 20 D. Draw a free body diagram for the object as it moves down the incline as it encounters the...

A box with a mass of 5.0 kg is sliding from rest down an incline plane...

A box with a mass of 5.0 kg is sliding from rest down an incline plane from the top of the plane. The incline is frictionless plane makes an angle of 20◦ with the horizontal and has a height of 2.0 m. At the bottom of the incline plane, the surface levels out to a horizontal surface with a kinetic coefficient of friction of 0.2. A spring with a spring constant of k = 10 N/m is located 5.0 m...
A 730 N force is applied to the 110 kg box. Determine the magnitude of the...

A 730 N force is applied to the 110 kg box. Determine the magnitude of the friction force F exerted by the horizontal sirface on the block. A 730 N force is applied to the 110 kg box. Determine the magnitude of the friction force F exerted by the horizontal surface on the block. 730 N 3 2 Mass = 110 kg Us = 0.65 MK =0.54
A box (mass 25.8 kg) sits on a rough incline that makes an angle α =...

A box (mass 25.8 kg) sits on a rough incline that makes an angle α = 28.1o with the horizontal. A massless string is tied to the box, runs parallel to the incline, passes over a massless, frictionless pulley, and is tied to mass M hanging on the other end. Assume μs = 0.455 is the coefficient of static friction between the box and the surface of the plane. Find the maximum value of M, in kg, for which this...
