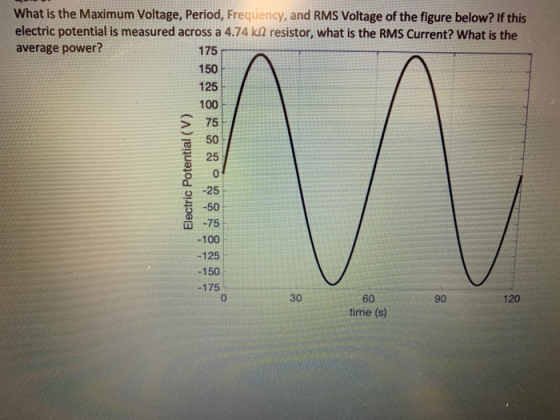

What is the Maximum Voltage, Period, Frequency, and RMS Voltage of the figure below? If this electric potential is measured a
Vmax- VRMS Period IRMS

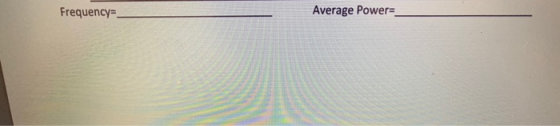

Frequency=_ Average Power
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

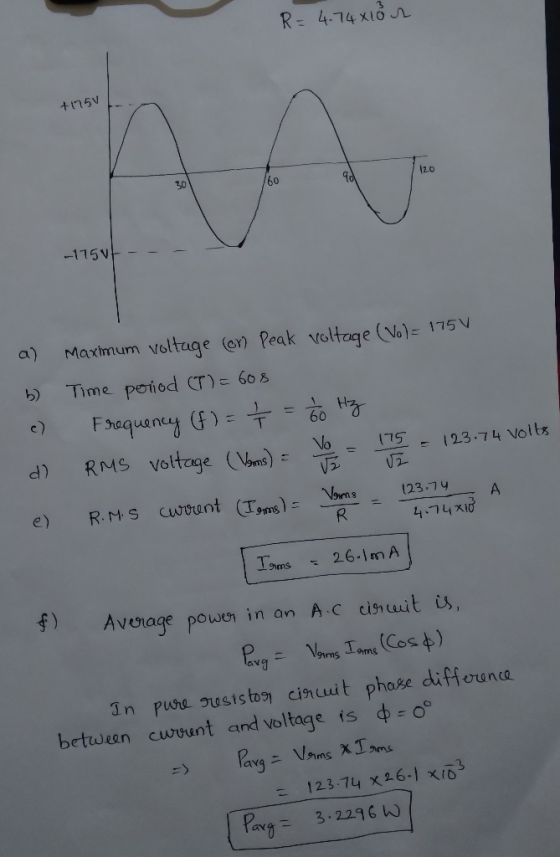

R = 4.74x10r +1750 160 -1750t - - a) b) c) d) e) Maximum voltage con Peak voltage (Vol= 175v. Time porod (T) = 608 Frequency

0 0
Add a comment
Know the answer?
Add Answer to:
What is the Maximum Voltage, Period, Frequency, and RMS Voltage of the figure below? If this...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An AC voltage source has a maximum voltage ?Vmax = 10M + 80 V connected to...

    An AC voltage source has a maximum voltage ?Vmax = 10M + 80 V connected to a resistor R = 10J – G ?. Find the rms voltage ?Vrms and the rms current Irms in the resistor.

  • A 2.04 kΩ resistor is connected to an AC voltage source with an rms voltage of...

    A 2.04 kΩ resistor is connected to an AC voltage source with an rms voltage of 115 V. Hint: Apply Ohm's law and the relationship between the maximum and rms values in an AC circuit a.) What is the maximum potential difference across the resistor (in V)? b.) What is the maximum current through the resistor (in A)? c.) What is the rms current through the resistor (in A)? d.) What is the average power dissipated by the resistor (in...

  • An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 5.4 uF capacitor and a 351 ohm resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the capacitor?...

  • An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.400 H inductor, a 5.30 ?F capacitor and a 251 ohm resistor. A.) What is the impedance of the circuit? B.) What is the rms current through the resistor? C.) What is the average power dissipated in the circuit? D.) What is the peak current through the resistor? E.) What is the peak voltage across the inductor F.) What is...

  • An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.350 H inductor, a 5.10 μF capacitor and a 306 Ω resistor. a. What is the impedance of the circuit? b. What is the rms current through the resistor? c. What is the average power dissipated in the circuit? d. What is the peak current through the resistor? e. What is the peak voltage across the inductor? f. What is...

  • Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is...

    Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is connected in series with a 0.700 H inductor, a 5.20 μF capacitor and a 401 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the...

  • An AC generator supplies an rms voltage of 240 V at 50.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 240 V at 50.0 Hz. It is connected in series with a 0.650 H inductor, a 4.70 μF capacitor and a 246 Ω resistor. a) What is the impedance of the circuit? b) What is the rms current through the resistor? c) What is the average power dissipated in the circuit? d) What is the peak current through the resistor? e) What is the peak voltage across the inductor? f) What is...

  • 1. Write an equation that describes voltage supplied by a wall outlet. (f = 60 Hz,...

    1. Write an equation that describes voltage supplied by a wall outlet. (f = 60 Hz, Vrms = 120 V) 2. What is the instantaneous voltage of a sine wave at half of a period? Describe Alternating Current (AC). Explain how resistors, capacitors, and inductors behave in an AC circuit. WRITEUP REQUIREMENTS Informal: Questions - 6 pts, Data Tables - 3 pts, Survey Questions from Syllabus - 1 pt INTRODUCTION V Up to this point, we have been using supply...

  • QUESTION 1 An AC voltage has a peak value of 2 V. What is the RMS value? (3 decimal places) QUEST...

    QUESTION 1 An AC voltage has a peak value of 2 V. What is the RMS value? (3 decimal places) QUESTION 2 A 2 Vp-p voltage is applied to a circuit that has three 1 kohm resistors in series. What is the total current (It) in rms milli amps QUESTION 3 A resistive circuit has three 100 ohm resistors in parallel. A 120 Vrms voltage is applied to the parallel circuit. What is the peak current through one resistor in...

  • What If the frequency is now 550 Hz, and the maximum voltage (not rms) is 300...

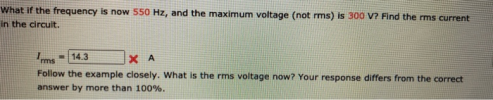

    What If the frequency is now 550 Hz, and the maximum voltage (not rms) is 300 V? Find the rms current in the circuit. Ims 14.3 ХА Follow the example closely. What is the rms voltage now? Your response differs from the correct answer by more than 100%.
