Homework Answers
Add Answer to:

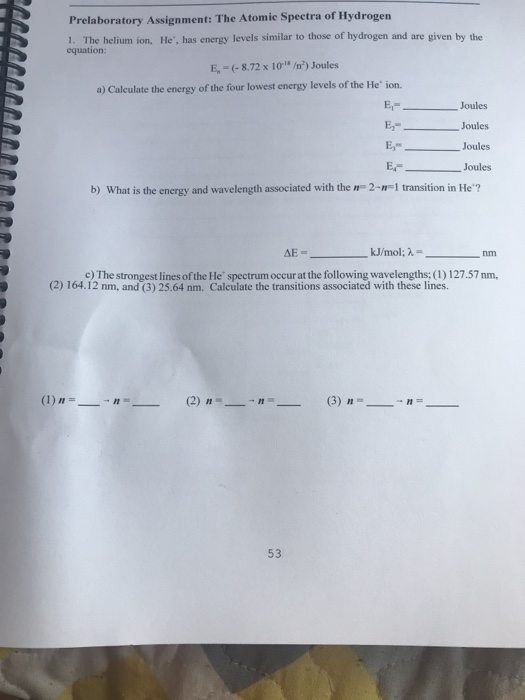

Prelaboratory Assignment: The Atomic Spectra of Hydrogen 1. The helium ion, He', has energy levels similar...
Data Report Sheet: The Atomic Spectra of Hydrogen A. Table 1: The Energy Levels of the...
Data Report Sheet: The Atomic Spectra of Hydrogen A. Table 1: The Energy Levels of the Hydrogen Atom Quantum Number, n Energy, kJ/mol Quantum Number, Energy, E, k/mol 1 -2.18x10/1--2.18x10J 2 -2.18x10"/2--5.45x10 B. Table 2. Calculation of Wavelengths Associated with Energy Transitions 2 1 3 4 5 E, -E, AE- 1.64 x 10J AE k.J/mol , nm thc/AE)- 121.5nm AE kJ/mol nm AE kJ/mol 3 , nm AE kJ/mol nm AE kJ/mol 5 7, nm 55 Table 3: Assignment of...
-obtain wavelengths for the hydrogen emission lines and then calculate the energy levels according to bohr's...
-obtain wavelengths for the hydrogen emission lines and then
calculate the energy levels according to bohr's theory
- determine wavelengths in nm associated with following
transitions of the H atom:
nf = 1 with ni = 2, 3, 4
nf = 2 with ni = 3, 4, 5
nf = 3 with ni = 4, 5, 6
Hydrogen יויויין יויויויויויויוי 400 500 600 700 Fig e: Hydrogen emission spectra for calculations 1 1 Rydberg Equation: -R, a n 1 1...
Name: Christina Gonzalez PARTI - Hydrogen, energy levels, and atomic line spectra Lab Worksheet - Atomic...
Name: Christina Gonzalez PARTI - Hydrogen, energy levels, and atomic line spectra Lab Worksheet - Atomic Theory 1.a) Electrons in an atom are more stable than free electrons. This is why the energy levels of electrons in atoms are negative (free electrons are defined as having an energy of zero). Calculate the energy of a hydrogen electron in the 4th shell, in J. b) Calculate this energy in kJ/mole. 2. Calculate the energy for n=1, 2, 3, and 5 as...
Lab Section: Experiment #11: The Atomic Spectrum of Hydrogen Advanced Study Assignment 1. Found in the...
Lab Section: Experiment #11: The Atomic Spectrum of Hydrogen Advanced Study Assignment 1. Found in the gas phase, the beryllium trication, Be has an energy level formula analogous to that of the hydrogen atom, since both species have only one electron. The energy levels of the Belon are given by the equation E, = -2100-kl/mole n = 1.2.3. - Calculate the energies in kl/mole for the four lowest energy levels of the Belon. a kl/mole kl/mole kJ/mole kl/mole b. One...
I was having trouble with some lab question on atomic emission spectra. Also answer the following...
I was having trouble with some lab question on atomic emission
spectra.
Also answer the following questions about your observations: Are the lines present in the hydrogen spectrum the same lines predicted by the Bohr model the atom? Which lines, if any, are missing? Why might there be lines missing? Compare the spectral lines from your unknown substance to the other spectra you observed. Based on these comparisons, what is the identity of the unknown substance? Are there any general...
Advance Study Assignment: The Atomic Spectrum of Hydrogen 1. Found in the gas phase, the beryllium...
Advance Study Assignment: The Atomic Spectrum of Hydrogen 1. Found in the gas phase, the beryllium trication (triply charged positive, or +3, ion). Bet, has an energy level formula analogous to that of the hydrogen atom, since both species have only one electron. The en- ergy levels of the Beion are given by the equation 21001 E =-- 2 kJ/mole kJ/mole n=1, 2, 3.... - a. Calculate the energies in kJ/mole for the four lowest energy levels of the Be'...
Activity 26-5. Atomic spectra [Accompanies Section 26-5] A certain type of atom (not hydrogen) has three...
Activity 26-5. Atomic spectra [Accompanies Section 26-5] A certain type of atom (not hydrogen) has three energy levels numbered 1, 2, and 3, as shown in the upper illustration. There are three possible transitions between these levels that lead to emission of a photon: 3 → 1, 3 → 2, and 2 → 1. The lower illustration shows the emission spectrum from a gas of these atoms. There are three emission lines, A, B, and C. (a) Rank the photons...
Please help with this chemistry lab question ATOMIC EMISSION SPECTROSCOPY ADVANCED STUDY ASSIGNMENT Name Section Date...
Please help with this chemistry lab question
ATOMIC EMISSION SPECTROSCOPY ADVANCED STUDY ASSIGNMENT Name Section Date This assignment MUST be completed before the laboratory period begins. Wavelength values for the hydrogen emission spectrum are required for the experiment. A few answers have been provided for you. You may wish to verify some of these to ensure that your calculation methods and signifcant digits are correct. 1. Calculate energy values for the first SIX hydrogen energy levels usings En =-RH/n--(2.179 x10-18J/n2...
The Bohr model can be applied to singly ionized helium He+ (Z = 2). Using this...
The Bohr model can be applied to singly ionized helium
He+ (Z = 2). Using this model, consider the
series of lines that is produced when the electron makes a
transition from higher energy levels into the = 4 level. Some of
the lines in this series lie in the visible region of the spectrum
(380−750 nm). What are the values of for the energy levels
from which the electron makes the transitions corresponding to
these lines?
We were unable...
Part 1: Calculating the Energy Levels of the Hydrogen Atom In 1886 Balmer showed that the...
Part 1: Calculating the Energy Levels of the Hydrogen Atom In 1886 Balmer showed that the lines in the spectrum of the hydrogen atom had wavelengths that could be expressed by a rather simple equation. Bohr, in 1913, explained the spectrum on a theoretical basis with his famous model of the hydrogen atom. Energy levels for the hydrogen atom can be calculated from the following equation: E = -1312.04/n2 Using this equation, calculate the energies of the ten lowest levels...
Data Report Sheet: The Atomic Spectra of Hydrogen A. Table 1: The Energy Levels of the Hydrogen Atom Quantum Number, n Energy, kJ/mol Quantum Number, Energy, E, k/mol 1 -2.18x10/1--2.18x10J 2 -2.18x10"/2--5.45x10 B. Table 2. Calculation of Wavelengths Associated with Energy Transitions 2 1 3 4 5 E, -E, AE- 1.64 x 10J AE k.J/mol , nm thc/AE)- 121.5nm AE kJ/mol nm AE kJ/mol 3 , nm AE kJ/mol nm AE kJ/mol 5 7, nm 55 Table 3: Assignment of...
-obtain wavelengths for the hydrogen emission lines and then
calculate the energy levels according to bohr's theory
- determine wavelengths in nm associated with following
transitions of the H atom:
nf = 1 with ni = 2, 3, 4
nf = 2 with ni = 3, 4, 5
nf = 3 with ni = 4, 5, 6
Hydrogen יויויין יויויויויויויוי 400 500 600 700 Fig e: Hydrogen emission spectra for calculations 1 1 Rydberg Equation: -R, a n 1 1...
Name: Christina Gonzalez PARTI - Hydrogen, energy levels, and atomic line spectra Lab Worksheet - Atomic Theory 1.a) Electrons in an atom are more stable than free electrons. This is why the energy levels of electrons in atoms are negative (free electrons are defined as having an energy of zero). Calculate the energy of a hydrogen electron in the 4th shell, in J. b) Calculate this energy in kJ/mole. 2. Calculate the energy for n=1, 2, 3, and 5 as...
Lab Section: Experiment #11: The Atomic Spectrum of Hydrogen Advanced Study Assignment 1. Found in the gas phase, the beryllium trication, Be has an energy level formula analogous to that of the hydrogen atom, since both species have only one electron. The energy levels of the Belon are given by the equation E, = -2100-kl/mole n = 1.2.3. - Calculate the energies in kl/mole for the four lowest energy levels of the Belon. a kl/mole kl/mole kJ/mole kl/mole b. One...
I was having trouble with some lab question on atomic emission
spectra.
Also answer the following questions about your observations: Are the lines present in the hydrogen spectrum the same lines predicted by the Bohr model the atom? Which lines, if any, are missing? Why might there be lines missing? Compare the spectral lines from your unknown substance to the other spectra you observed. Based on these comparisons, what is the identity of the unknown substance? Are there any general...
Advance Study Assignment: The Atomic Spectrum of Hydrogen 1. Found in the gas phase, the beryllium trication (triply charged positive, or +3, ion). Bet, has an energy level formula analogous to that of the hydrogen atom, since both species have only one electron. The en- ergy levels of the Beion are given by the equation 21001 E =-- 2 kJ/mole kJ/mole n=1, 2, 3.... - a. Calculate the energies in kJ/mole for the four lowest energy levels of the Be'...
Please help with this chemistry lab question
ATOMIC EMISSION SPECTROSCOPY ADVANCED STUDY ASSIGNMENT Name Section Date This assignment MUST be completed before the laboratory period begins. Wavelength values for the hydrogen emission spectrum are required for the experiment. A few answers have been provided for you. You may wish to verify some of these to ensure that your calculation methods and signifcant digits are correct. 1. Calculate energy values for the first SIX hydrogen energy levels usings En =-RH/n--(2.179 x10-18J/n2...
The Bohr model can be applied to singly ionized helium
He+ (Z = 2). Using this model, consider the
series of lines that is produced when the electron makes a
transition from higher energy levels into the = 4 level. Some of
the lines in this series lie in the visible region of the spectrum
(380−750 nm). What are the values of for the energy levels
from which the electron makes the transitions corresponding to
these lines?
We were unable...
Part 1: Calculating the Energy Levels of the Hydrogen Atom In 1886 Balmer showed that the lines in the spectrum of the hydrogen atom had wavelengths that could be expressed by a rather simple equation. Bohr, in 1913, explained the spectrum on a theoretical basis with his famous model of the hydrogen atom. Energy levels for the hydrogen atom can be calculated from the following equation: E = -1312.04/n2 Using this equation, calculate the energies of the ten lowest levels...
