Homework Answers
Add Answer to:
It’s statics please I need clear answer quickly. Thanks

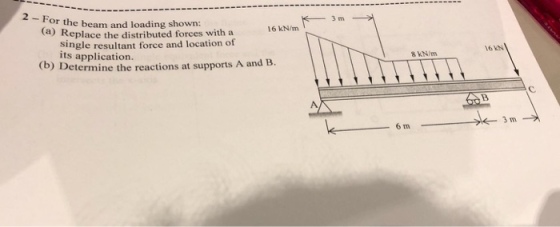

2 or the beam and loading shown:...
Problems 67 For the beam and loading shown, determine (a) the mag- 6 and and location...
Problems 67 For the beam and loading shown, determine (a) the mag- 6 and and location of the resultant of the distributed load, (b) the 66 ae andlocation reactions at the beam supports 200 lb/ft Parabolas 100 lb/ft 12 ft 6 ft
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D....
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D. la) Replace the distributed loads in Figure 1 by an equivalent resultant force and locate its location with respect to A. {2 + 3 marks 1b) Calculate the reactions at supports A and D. {2 marks 1c) Calculate the shear force and bending moment at point C. {4 marks) 15 kN/m 6 kN/m D B q 3.0 m 3.0 m 3.0 m Figure 1
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK Given the beam and the external loading shown below, if L12m, w1700 N/m and w2 1,280 N/m, calculate: the magnitude and location of the equivalent resul...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK Given the beam and the external loading shown below, if L12m, w1700 N/m and w2 1,280 N/m, calculate: the magnitude and location of the equivalent resultant force (a single equivalent force, for the whole loading block, NOT two equivalent forces from dividing into rectangular and triangular stress blocks). the reactions at the beam supports. W2 Units Resultant force FrNumber tolerance 1 N, magnitude only) Uni Location Xbar Number (tolerance 0.1 m, measured from...
The beam below is subjected to a distributed load as shown in the figure. Replace the...
The beam below is subjected to a distributed load as shown in the figure. Replace the loading by a single resultant force and specify the location of the force measured from the pin support on the left. Draw the resultant system. Find the magnitude of the support reactions.
i need the answer quickly fast as you can Q5: Using force method, determine the reactions...
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
A beam with simple supports as shown below has external loading of three point loads and...
A beam with simple supports as shown below has external loading of three point loads and two different uniformly distributed loads. For this beam: a. Calculate reactions at points C and D b. Derive the equations (only), as a function of x, of both Shear Force and Bending Moment between points C and D only c. Construct complete Shear Force (V) and Bending Moment (M) diagrams for the entire beam, and graph them on the lines shown below. Make sure...
2.4 kN/m Problem No. 1 (25%): 2 kN/m y = kx 3.0 KN 300 For the...
2.4 kN/m Problem No. 1 (25%): 2 kN/m y = kx 3.0 KN 300 For the beam and loading shown, determine (a) the magnitude and location of the resultant of the distributed load (b) the reactions at the beam supports (Fig. 1). B A 0.6 m 1.2 m - 0.8 m 2.4 m —- - 10 ml Fig. 1
please this question quickly ? please important Problem 1 In the loaded beam shown in figure:...
please this question quickly ? please important
Problem 1 In the loaded beam shown in figure: a) Calculate the support reactions at A and I. b) Determine the shear force (V) and bending moment (M) values at the section passing through point G. 24 kN 12 kN/m 6 kN/m kN.m_ 2.4 m 2 m 1 ml ml mlm 2 m 2.4 m
Please answer both if possible, thank you! 18 kN/m 12 kN/m 6 kN/m Fn = 300...
Please answer both if possible, thank you!
18 kN/m 12 kN/m 6 kN/m Fn = 300 N 12.AN/TITTTTTT6kN/m 0.5 m Fc = 225N 3 m .-3 m . 6 m Fig. for Q.2 0.5 m Fig. for Q.1 1. Two forces are acting on Point A along the direction as shown. Convert each force into Cartesian vector form. Show the various steps of your calculation. Then determine the magnitude and coordinate direction angles of the resultant. 15 Points 2. Replace...
Statics Answer ASAP Make sure the work is clear Thank you 2. The beam shown is...
Statics
Answer ASAP
Make sure the work is clear
Thank you
2. The beam shown is supported by a pin at point A and a roller at point B. Draw the free-body diagram and determine the reactions at each support. 5 kips 4 kips 6 kips 3'-0" 7-0 6'-0 4'-0" L = 20-0"
Problems 67 For the beam and loading shown, determine (a) the mag- 6 and and location of the resultant of the distributed load, (b) the 66 ae andlocation reactions at the beam supports 200 lb/ft Parabolas 100 lb/ft 12 ft 6 ft
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D. la) Replace the distributed loads in Figure 1 by an equivalent resultant force and locate its location with respect to A. {2 + 3 marks 1b) Calculate the reactions at supports A and D. {2 marks 1c) Calculate the shear force and bending moment at point C. {4 marks) 15 kN/m 6 kN/m D B q 3.0 m 3.0 m 3.0 m Figure 1
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK Given the beam and the external loading shown below, if L12m, w1700 N/m and w2 1,280 N/m, calculate: the magnitude and location of the equivalent resultant force (a single equivalent force, for the whole loading block, NOT two equivalent forces from dividing into rectangular and triangular stress blocks). the reactions at the beam supports. W2 Units Resultant force FrNumber tolerance 1 N, magnitude only) Uni Location Xbar Number (tolerance 0.1 m, measured from...
The beam below is subjected to a distributed load as shown in the figure. Replace the loading by a single resultant force and specify the location of the force measured from the pin support on the left. Draw the resultant system. Find the magnitude of the support reactions.
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
A beam with simple supports as shown below has external loading of three point loads and two different uniformly distributed loads. For this beam: a. Calculate reactions at points C and D b. Derive the equations (only), as a function of x, of both Shear Force and Bending Moment between points C and D only c. Construct complete Shear Force (V) and Bending Moment (M) diagrams for the entire beam, and graph them on the lines shown below. Make sure...
2.4 kN/m Problem No. 1 (25%): 2 kN/m y = kx 3.0 KN 300 For the beam and loading shown, determine (a) the magnitude and location of the resultant of the distributed load (b) the reactions at the beam supports (Fig. 1). B A 0.6 m 1.2 m - 0.8 m 2.4 m —- - 10 ml Fig. 1
please this question quickly ? please important
Problem 1 In the loaded beam shown in figure: a) Calculate the support reactions at A and I. b) Determine the shear force (V) and bending moment (M) values at the section passing through point G. 24 kN 12 kN/m 6 kN/m kN.m_ 2.4 m 2 m 1 ml ml mlm 2 m 2.4 m
Please answer both if possible, thank you!
18 kN/m 12 kN/m 6 kN/m Fn = 300 N 12.AN/TITTTTTT6kN/m 0.5 m Fc = 225N 3 m .-3 m . 6 m Fig. for Q.2 0.5 m Fig. for Q.1 1. Two forces are acting on Point A along the direction as shown. Convert each force into Cartesian vector form. Show the various steps of your calculation. Then determine the magnitude and coordinate direction angles of the resultant. 15 Points 2. Replace...
Statics
Answer ASAP
Make sure the work is clear
Thank you
2. The beam shown is supported by a pin at point A and a roller at point B. Draw the free-body diagram and determine the reactions at each support. 5 kips 4 kips 6 kips 3'-0" 7-0 6'-0 4'-0" L = 20-0"
