Homework Answers
Add Answer to:

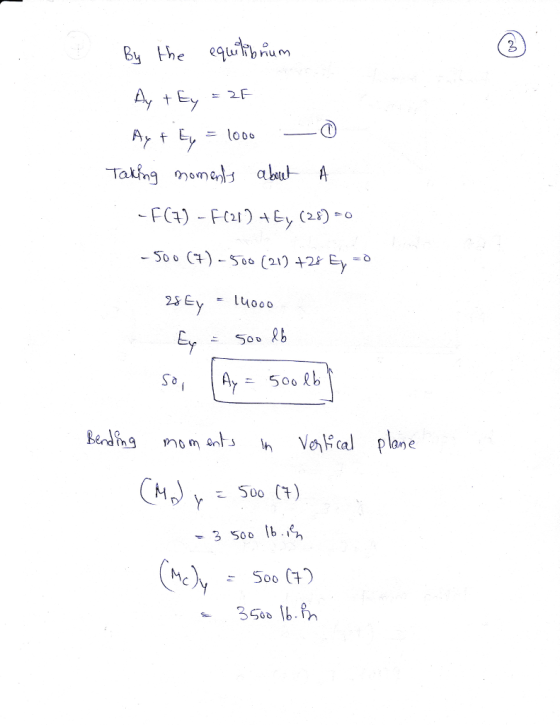

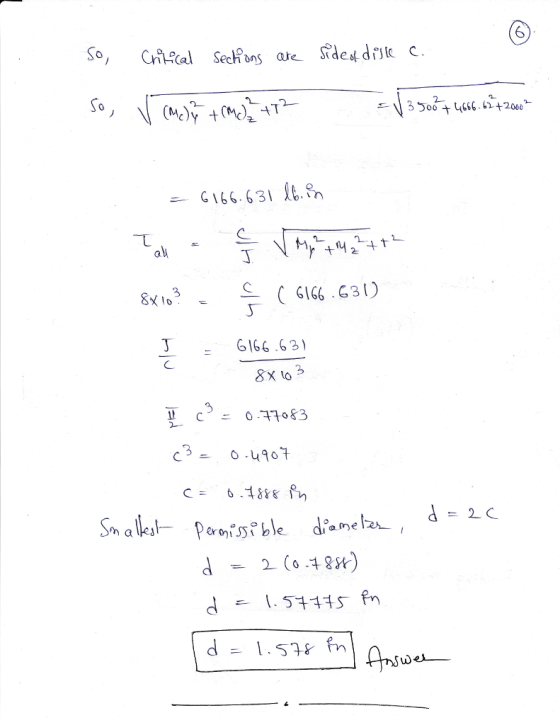

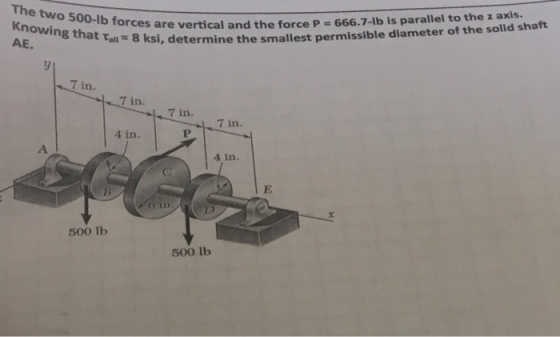

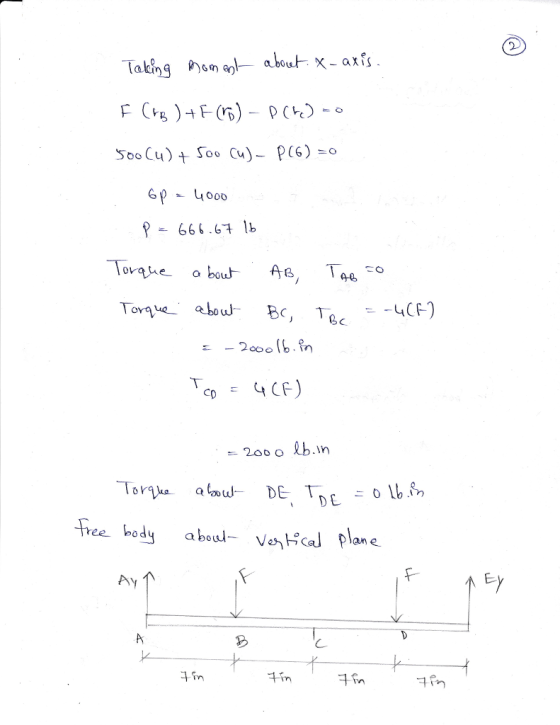

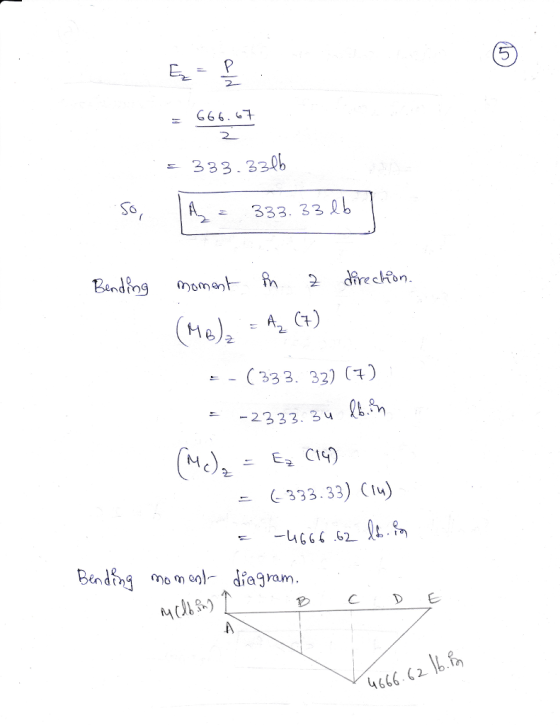

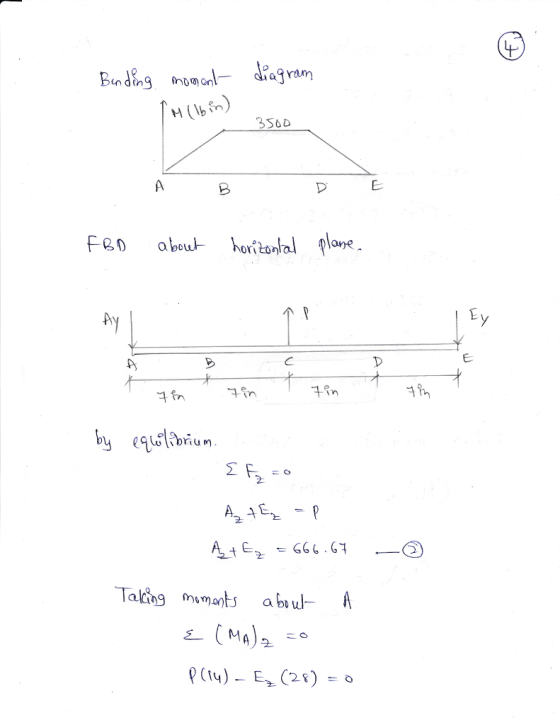

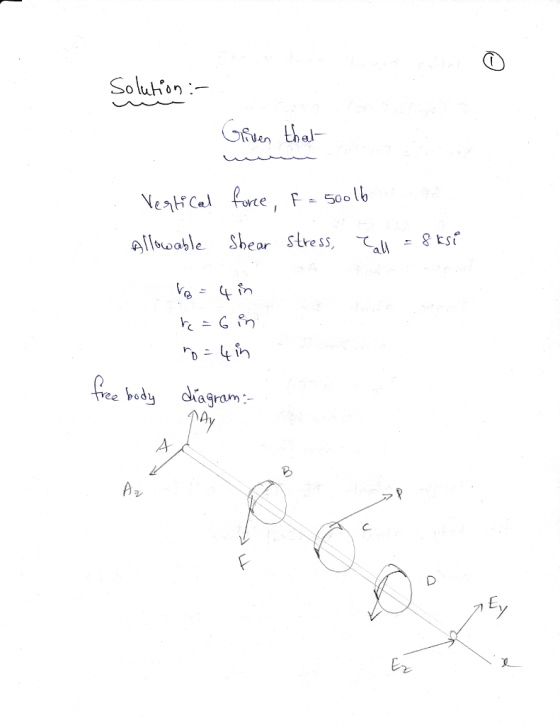

The two 500-lb forces are vertical and the force P 666.74b is parallel to the z...
The solid shaft AE rotates at 600 rpm and transmits 60 hp from the motor Mto...
The solid shaft AE rotates at 600 rpm and transmits 60 hp from the motor Mto machine tools connected to gears Gand H. Knowing that Tall = 7.2 ksi and that 40 hp is taken off at gear G and 20 hp is taken off at gear H, determine the smallest permissible diameter of shaft AE. (Round the final answer to three decimal places.) 6 in 3 in СЕ 4 in The smallest permissible diameter of shaft AE is
6 in. 8 in 8.22 Assuming that the magnitudes of the forces applied to disks A...
6 in. 8 in 8.22 Assuming that the magnitudes of the forces applied to disks A and C are, respectively, P, = 1080 lb and P, = 810 lb, and using the expres- sions given in Prob. 8.21, determine the values of ty and tx in a section (a) just to the left of B. (b) just to the left of C. 8.23 The solid shaft AB rotates at 720 rpm and transmits 50 kW from the motor M to...
00 Several forces are applied to the pipe assembly shown. Knowing that Q = 230 lb...
00 Several forces are applied to the pipe assembly shown. Knowing that Q = 230 lb and that the pipe has inner and outer diameters equal to 1.61 in. and 1.90 in., respectively, determine the normal and shearing stresses at point Hand point K. (Round the final answers to decimal places.) 10 points eBook 150 lb Hint 10 in Print 150 lb References 6 in 50 lb The normal stress at point His The shearing stress at point His The...
Required information A steel tank is to be positioned in an excavation. The magnitude of P,...
Required information A steel tank is to be positioned in an excavation. The magnitude of P, = 610 lb. PI 30 Determine by trigonometry the magnitude and direction of the smallest force P for which the resultant R of the two forces applied at A is vertical The magnitude of the smallest force P is Ib and the direction is (Click to select)
The crowbar is subjected to a vertical force of P-26 lb at it takes a force...
The crowbar is subjected to a vertical force of P-26 lb at it takes a force of F 17o lb at the ca to puil the nail out. The crowbar contacts the board at point A. (Figure 1) and negative value if the Express your answer using three significant figures. Enter positive value if the moment is moment is clockwise. Mp Ib-in Part B Find the moment of the force F about point A Express your ans er using three...
130 points) 3D Equilibrium. A vertical force of 50 lb acts on the crankshaft. Determine the...
130 points) 3D Equilibrium. A vertical force of 50 lb acts on the crankshaft. Determine the horizontal equilibrium force P that must be applied to the handle and the x, y, z components of reactions at the journal bearing A and thrust bearing B. Recall that in journal bearings, the shaft is free to move within the support but thrust bearings restrict translation along the shaft. The bearings are properly aligned and exert only force reactions on the shaft. Complete...
<Homework Assignment 32 Problem 11.45 2012 Review The shaft is supported by journal bearings at A and B that exert force components only in the and z directions. 4 in. F-200 lb 250 lb 4 in. F 4 in. in. in F 8 in. 50 lb in. ▼ Part A If the allowable normal stress for the shaft is allow - 19 ksi, determine the smallest diameter of the shaft. Use the maximum distortion energy theory of failure. Express your...
Pulley Diameter = 800 mm Base Plate Diameter = 1200 mm Shaft Mounted Wheel Axial force...
Pulley Diameter = 800 mm Base Plate Diameter = 1200 mm Shaft Mounted Wheel Axial force F2 along the shaft axis Belt connected to motor with tension force F Figure 1. Side View Belt Bearing A. Bearing B FR = 2 kN --- - - - - - - - - - - > ---- 500 mm 500 mm 500 mm F1 = 500 N 'Fw = 1 kN Figure 2. The design of a fatigue test machine for car...
Answer must match one of the given options cular shaft has an outside diameter of 12...
Answer must match one of the given options
cular shaft has an outside diameter of 12 in. and an inside diameter of 4 in. The shatis in equilibrium when the indicated loads and torque are applied f the asial load P s 186,000 lb, determine the principal stresses and overall maximum shear stress at point A, which is on the side of the shaft Use coordinate axis X in the direction of force P and axis y in the direction...
To determine the maximum shear force that can be applied to two shafts of varying cross sections: a solid square shaft and a hollow square shaft.
Learning Goal: To determine the maximum shear force that can be applied to two shafts of varying cross sections: a solid square shaft and a hollow square shaft. The two square cross sections shown below (Figure 1) are each subjected to a vertical shear force, V. The side length of each cross section is s = 6.75 in and the side length of the hollowed-out portion of the second cross section is r = 4.00 in. The maximum allowable shear stress in...
The solid shaft AE rotates at 600 rpm and transmits 60 hp from the motor Mto machine tools connected to gears Gand H. Knowing that Tall = 7.2 ksi and that 40 hp is taken off at gear G and 20 hp is taken off at gear H, determine the smallest permissible diameter of shaft AE. (Round the final answer to three decimal places.) 6 in 3 in СЕ 4 in The smallest permissible diameter of shaft AE is
6 in. 8 in 8.22 Assuming that the magnitudes of the forces applied to disks A and C are, respectively, P, = 1080 lb and P, = 810 lb, and using the expres- sions given in Prob. 8.21, determine the values of ty and tx in a section (a) just to the left of B. (b) just to the left of C. 8.23 The solid shaft AB rotates at 720 rpm and transmits 50 kW from the motor M to...
00 Several forces are applied to the pipe assembly shown. Knowing that Q = 230 lb and that the pipe has inner and outer diameters equal to 1.61 in. and 1.90 in., respectively, determine the normal and shearing stresses at point Hand point K. (Round the final answers to decimal places.) 10 points eBook 150 lb Hint 10 in Print 150 lb References 6 in 50 lb The normal stress at point His The shearing stress at point His The...
Required information A steel tank is to be positioned in an excavation. The magnitude of P, = 610 lb. PI 30 Determine by trigonometry the magnitude and direction of the smallest force P for which the resultant R of the two forces applied at A is vertical The magnitude of the smallest force P is Ib and the direction is (Click to select)
The crowbar is subjected to a vertical force of P-26 lb at it takes a force of F 17o lb at the ca to puil the nail out. The crowbar contacts the board at point A. (Figure 1) and negative value if the Express your answer using three significant figures. Enter positive value if the moment is moment is clockwise. Mp Ib-in Part B Find the moment of the force F about point A Express your ans er using three...
130 points) 3D Equilibrium. A vertical force of 50 lb acts on the crankshaft. Determine the horizontal equilibrium force P that must be applied to the handle and the x, y, z components of reactions at the journal bearing A and thrust bearing B. Recall that in journal bearings, the shaft is free to move within the support but thrust bearings restrict translation along the shaft. The bearings are properly aligned and exert only force reactions on the shaft. Complete...
<Homework Assignment 32 Problem 11.45 2012 Review The shaft is supported by journal bearings at A and B that exert force components only in the and z directions. 4 in. F-200 lb 250 lb 4 in. F 4 in. in. in F 8 in. 50 lb in. ▼ Part A If the allowable normal stress for the shaft is allow - 19 ksi, determine the smallest diameter of the shaft. Use the maximum distortion energy theory of failure. Express your...
Pulley Diameter = 800 mm Base Plate Diameter = 1200 mm Shaft Mounted Wheel Axial force F2 along the shaft axis Belt connected to motor with tension force F Figure 1. Side View Belt Bearing A. Bearing B FR = 2 kN --- - - - - - - - - - - > ---- 500 mm 500 mm 500 mm F1 = 500 N 'Fw = 1 kN Figure 2. The design of a fatigue test machine for car...
Answer must match one of the given options
cular shaft has an outside diameter of 12 in. and an inside diameter of 4 in. The shatis in equilibrium when the indicated loads and torque are applied f the asial load P s 186,000 lb, determine the principal stresses and overall maximum shear stress at point A, which is on the side of the shaft Use coordinate axis X in the direction of force P and axis y in the direction...
