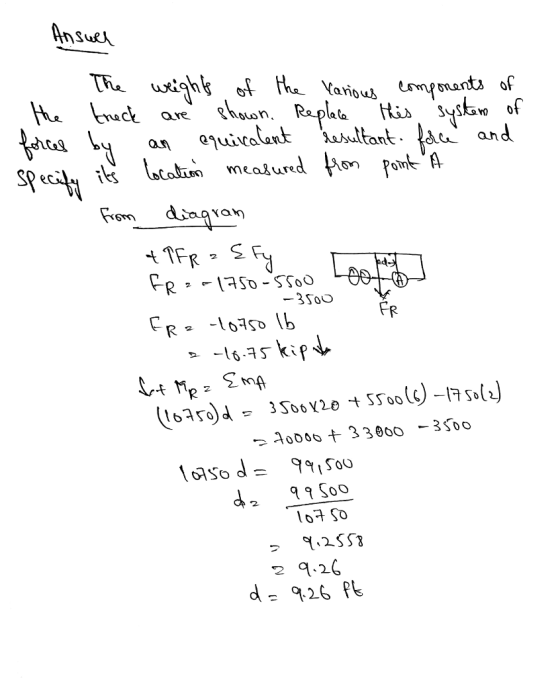

4-114. The weights of the various components of the truck are shown. Replace this system of...
Replace the loading system by an equivalent resultant force and specify where the resultant's line of...
Replace the loading system by an equivalent resultant force and specify where the resultant's line of action intersectects a vertical line along member AP, measured from A. 1500 lb 180 lb/ft 100 lb/ft Р 70 lb/ft - 650 11 C 22B 1900 1b-ft 234 Inf 124 30 ft A2
Replace the loading system by an equivalent resultant force and a couple moment acting at point...
Replace the loading system by an equivalent resultant force and a couple moment acting at point A. 3 ft 6 ft 53.13º 10 lb 12 lb 4 ft 30 lb-ft 5 ft 8 lb 12 513 lb
3* Question #2 (5 pts): In the figure at right, replace the forces and couple acting...
3* Question #2 (5 pts): In the figure at right, replace the forces and couple acting on the structural member shown with an equivalent force-couple system at point G. Use the following values: Fi -100 lb, F 90 lb, F-120 lb, and C- 200 lb-ft.
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple m...
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
I want clear answer and (do Step 1 and Step 2) Replace the forces acting on...
I
want clear answer and (do Step 1 and Step 2)
Replace the forces acting on the beam by an equivalent resultant force and couple moment acting at point A. 200 lb 50 lb _3ft 3 ft 3ft30 3100lb Given: A 2-D force system with geometry Find: FRA: MRA Solution: Step : Sum all the x and y components of the forces to find FRA. Step 2: Find and sum all the moments resulting from moving each force component to...
Spring 2018 ROY G. PERRY COLLEGE OF ENGINEERING Name PRAIRIE VIEW A&M UNIVERSITY Class Roster Number...
Spring 2018 ROY G. PERRY COLLEGE OF ENGINEERING Name PRAIRIE VIEW A&M UNIVERSITY Class Roster Number 4. Replace the loading by an equivalent resultant force and specify its location on the beam, measured from point B 15 Points 1600 Ib/tt 000 lb/ft 12 ft 9 ft
110 lb L 31 M d 45 lb M = 191 lb.in F = 31 lb...
110 lb L 31 M d 45 lb M = 191 lb.in F = 31 lb a = 57 deg L = 11 in d = 6.5 in Replace the shown forces and couples by an equivalent force couple system at point. Specify the magnitude and the direction of the resultant force measured counter-clockwise from the positive y axis. Answer:
| 10 lb y F L ВІ M 45 lb M = 144 lb.in F =...
| 10 lb y F L ВІ M 45 lb M = 144 lb.in F = 25 lb a = 52 deg L = 14 in d = 6.7 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis.
Replace the loading system by an equivalent resultant force and specify where the resultant's line of action intersectects a vertical line along member AP, measured from A. 1500 lb 180 lb/ft 100 lb/ft Р 70 lb/ft - 650 11 C 22B 1900 1b-ft 234 Inf 124 30 ft A2
Replace the loading system by an equivalent resultant force and a couple moment acting at point A. 3 ft 6 ft 53.13º 10 lb 12 lb 4 ft 30 lb-ft 5 ft 8 lb 12 513 lb
3* Question #2 (5 pts): In the figure at right, replace the forces and couple acting on the structural member shown with an equivalent force-couple system at point G. Use the following values: Fi -100 lb, F 90 lb, F-120 lb, and C- 200 lb-ft.
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
I
want clear answer and (do Step 1 and Step 2)
Replace the forces acting on the beam by an equivalent resultant force and couple moment acting at point A. 200 lb 50 lb _3ft 3 ft 3ft30 3100lb Given: A 2-D force system with geometry Find: FRA: MRA Solution: Step : Sum all the x and y components of the forces to find FRA. Step 2: Find and sum all the moments resulting from moving each force component to...
Spring 2018 ROY G. PERRY COLLEGE OF ENGINEERING Name PRAIRIE VIEW A&M UNIVERSITY Class Roster Number 4. Replace the loading by an equivalent resultant force and specify its location on the beam, measured from point B 15 Points 1600 Ib/tt 000 lb/ft 12 ft 9 ft
110 lb L 31 M d 45 lb M = 191 lb.in F = 31 lb a = 57 deg L = 11 in d = 6.5 in Replace the shown forces and couples by an equivalent force couple system at point. Specify the magnitude and the direction of the resultant force measured counter-clockwise from the positive y axis. Answer:
| 10 lb y F L ВІ M 45 lb M = 144 lb.in F = 25 lb a = 52 deg L = 14 in d = 6.7 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis.
