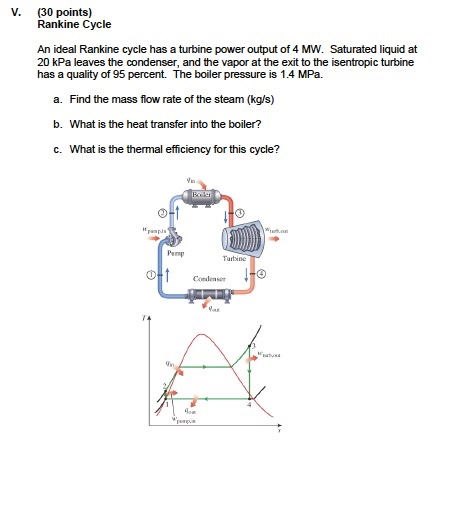

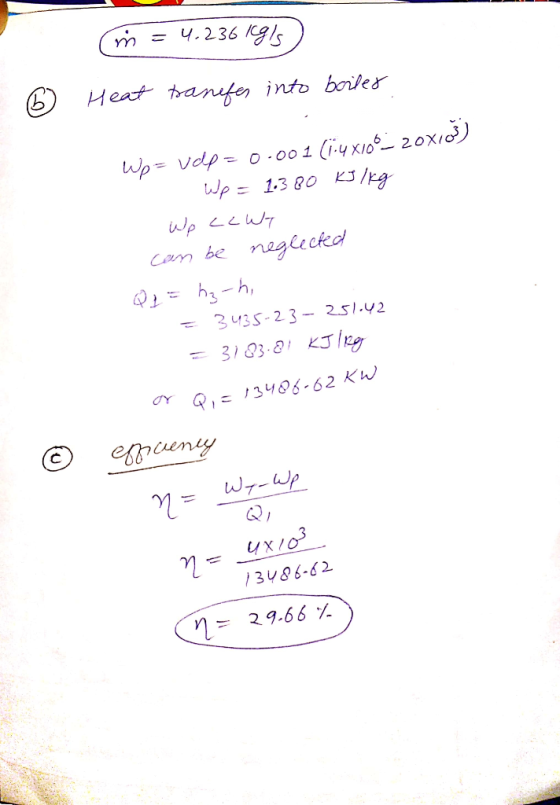

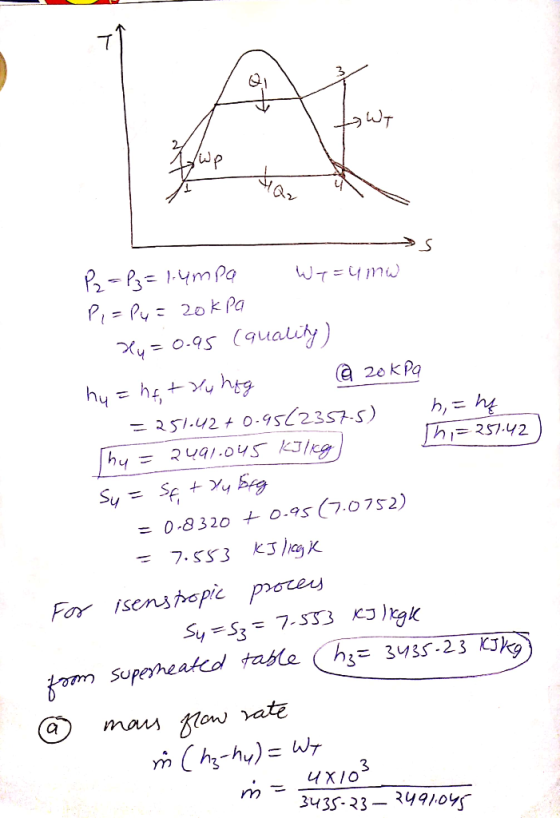

(30 points) Rankine Cycle An ideal Rankine cycle has a turbine power output of 4 MW....
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
Steam is the working fluid in a simple, ideal Rankine cycle. Saturated vapor enters the turbine...
Steam is the working fluid in a simple, ideal Rankine cycle. Saturated vapor enters the turbine at 8 MPa and saturated liquid exits the condenser at a pressure of 8 kPa. The net power output of the cycle is 100 MW. Determine for the cycle: i. Thermal efficiency ii. Back work ratio iii. Mass flow-rate of the steam in kg/h iv. Rate of heat transfer to the working fluid as it passes through the boiler in MW v. Rate of...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 550°C and the low-pressure turbine at 1 MPa and 550°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 80 percent, and that of the pump is 95 percent. Show the cycle on a T-s diagram with respect...
Consider a steam power plant which operates on the simple ideal Rankine cycle (shown in the...
Consider a steam power plant which operates on the simple ideal
Rankine cycle (shown in the next page), where the boiler pressure
is 3 MPa and the condenser saturation temperature is 50°C. The
temperature at the exit of the boiler is 500°C. Water leaves the
condenser as a saturated liquid. The mass flow rate through each
component is 15 kg/s. Calculate:
1. The power output of the steam power plant
2. The thermal efficiency of the steam power plant
Now,...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 500°C and the low-pressure turbine at 1 MPa and 500°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 74 percent and that of the pump is 95 percent. Determine the quality (or temperature, if superheated) of the...
Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters...
Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Assume an isentropic efficiency of 85 percent for both the turbine and the pump. (a) the quality of the steam at the turbine exit (b) the thermal efficiency of the cycle (c) the mass flow rate of the steam.
thermodynamic 2. A ste am power plant operates on an ideal regenerative Rankine cycle. Steam enters...
thermodynamic
2. A ste am power plant operates on an ideal regenerative Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is condensed in the condenser at 10 kPa. Steam is extracted from the turbine at 0.5 MPa to heat the feedwater in an open feedwater heater. Water leaves the feedwa ter heater as a saturated liquid. The plant has a net power output of 150 MW. Show the cycle on a T-s dingram, and determine (a)...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in the condenser and at a pressure of 4.5 MPa in the evaporator. The liquid leaving the condenser is a saturated mixture with quality x-0.8. The mass flow rate of steam in the cycle is 1.5 kg/s. Plot the cycle on power-generation cycle using steam (a) T-s diagram for steam; and determine (b) What is the maximum temperature (°C) of this Rankine cycle (c) the...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 8...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 8 MPa, 700°C and the turbine exit pressure is 8 kPa. Saturated liquid enters the pump at 8 kPa. The heat transfer rate to the working fluid in the steam generator is 24 MW. The isentropic turbine efficiency is 88%, and the isentropic pump efficiency is 82%. Cooling water enters the condenser at 18°C and exits at 36°C with no significant change in pressure. Determine...
Thermodynamics 1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 va...
Thermodynamics
1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 vapor is fed into the turbine of the same turbine. The condenser of this turbine is operated at 8 kPa. The mass flowrate of the H20 in this cycle is 7.2x103 kg/min. Draw the path of this process on T-s diagram. Estimate the thermal efficiency...
Consider a steam power plant which operates on the simple ideal
Rankine cycle (shown in the next page), where the boiler pressure
is 3 MPa and the condenser saturation temperature is 50°C. The
temperature at the exit of the boiler is 500°C. Water leaves the
condenser as a saturated liquid. The mass flow rate through each
component is 15 kg/s. Calculate:
1. The power output of the steam power plant
2. The thermal efficiency of the steam power plant
Now,...
thermodynamic
2. A ste am power plant operates on an ideal regenerative Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is condensed in the condenser at 10 kPa. Steam is extracted from the turbine at 0.5 MPa to heat the feedwater in an open feedwater heater. Water leaves the feedwa ter heater as a saturated liquid. The plant has a net power output of 150 MW. Show the cycle on a T-s dingram, and determine (a)...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in the condenser and at a pressure of 4.5 MPa in the evaporator. The liquid leaving the condenser is a saturated mixture with quality x-0.8. The mass flow rate of steam in the cycle is 1.5 kg/s. Plot the cycle on power-generation cycle using steam (a) T-s diagram for steam; and determine (b) What is the maximum temperature (°C) of this Rankine cycle (c) the...
Thermodynamics
1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 vapor is fed into the turbine of the same turbine. The condenser of this turbine is operated at 8 kPa. The mass flowrate of the H20 in this cycle is 7.2x103 kg/min. Draw the path of this process on T-s diagram. Estimate the thermal efficiency...
