Sketch the transfer characteristic for the circuit below for +V = |-V1 = 15 V, Ri= 10 k 2, R2 = 10 k 2. R3 = 150 k 2. R4 = 3.

engineering Electrical-Engineering

Answer 1

Answer #1

If you have any doubt ask in the comment section below.

Connected the circuit in the multisim and attached the output below.

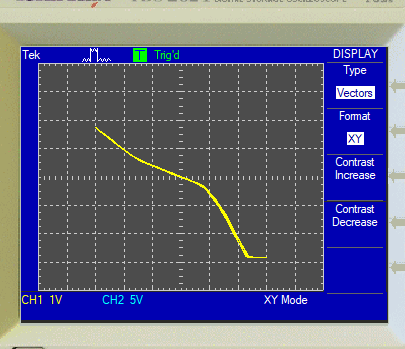

When the input is sinusoidal the transfer characteristics is attached below.

when the input is DC voltage the transfer characteristics is attached below.
