Homework Answers
Add Answer to:

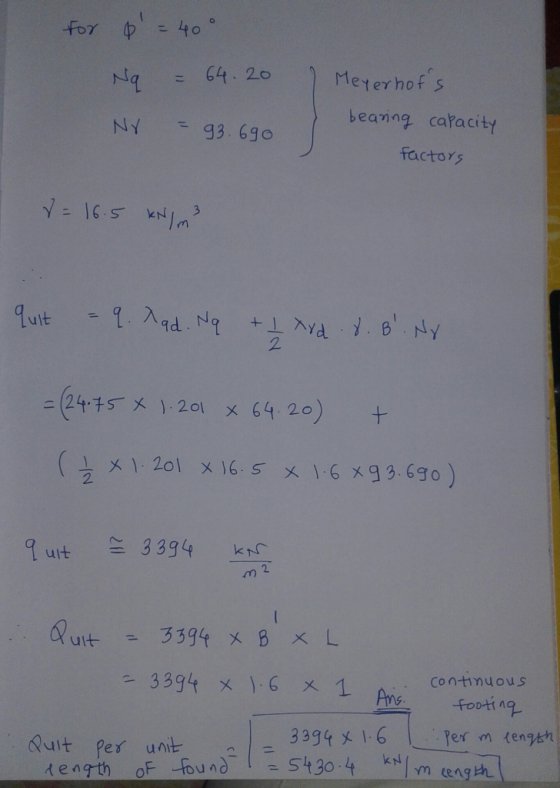

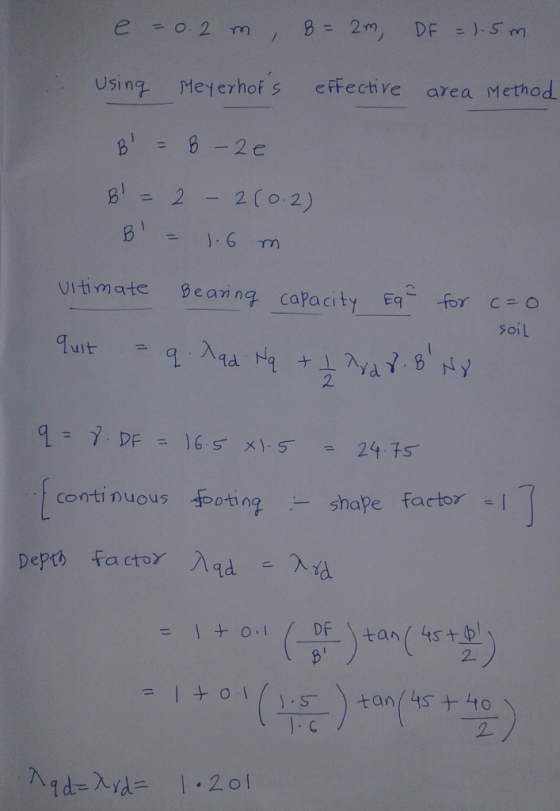

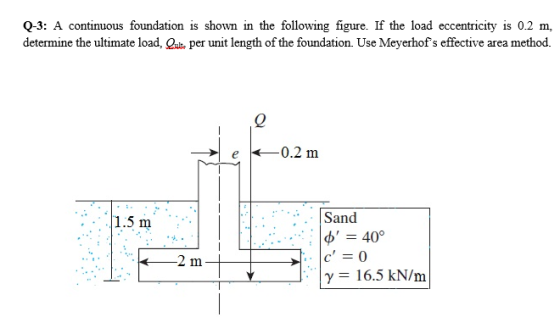

Q-3: A continuous foundation is shown in the following figure. If the load eccentricity is 0.2...
Q6. An eccentrically loaded foundation is shown in figure below. Use FS of 4 and determine...
Q6. An eccentrically loaded foundation is shown in figure below. Use FS of 4 and determine the maximum allowable load that the foundation can carry. Use Meyerhof's effective area method (Eccentricity in one direction ? 17 kN/m3 c'=0 ?' = 30° only) e = 0.15 m 1.0 m all 1.5m× 1.5m Centerline
For 2 continuous foundation was constructed with 3.6 m apart (center to center) on a sand...
For 2 continuous foundation was constructed with 3.6 m apart (center to center) on a sand soil with Q' = 40° and y = 19 kN/m3. The width of each foundation is 3 m and it was placed at depth of 1.5 m. Determine the allowable bearing capacity (Use F.S =3).
Help please! Problem 2 Figure 2 shows a continuous footing a) Determine the ultimate bearing capacity...
Help please!
Problem 2 Figure 2 shows a continuous footing a) Determine the ultimate bearing capacity () if H 1.5 m b) At what maximum value of H/B will the clay layer not have any effect on the ultimate bearing capacity ( of the foundation. Sand 1.2 m 1 18 kN/m3 φ' = 40° B=2m Clay30 kN/m2 Figure 2
A 2 m wide continuous foundation carrying a 260 kN/m wall load is placed at a...
A 2 m wide continuous foundation carrying a 260 kN/m wall load is placed at a depth of 1.0 m in sand where the unit weight is 19.0 kN/m3 and (N)so is 32. Assuming Poisson's ratio of 0.15, estimate the settlement of the foundation. Use the procedure outlined in Section 9.7. 9.15
14.13 The final answer 14.3 Foundation engineering 143 A driven closed-ended pipe pile is shown in...
14.13
The final
answer
14.3 Foundation engineering 143 A driven closed-ended pipe pile is shown in Figure 14.40. a. Find the ultimate point load. b. Determine the ultimate frictional resistance, Q use K-1.4 and 8-0.6 c. Calculate the allowable load of the pile; use FS- 4 ncrete pile 20 m long with a cross section of 381 mm x 381 mm is fully ubook3rdEd(chpd-14)%2og.pdf Chapter 14 Deep Foundations-Piles and Drilled Shafts Sand -16 kN/m 6m Sand -184AN 30 ti m...
Solve for q max, min, and intermediate bearing pressure at the bottom of the foundation
solve for q max, min, and intermediate bearing
pressure at the bottom of the foundation
. pressure at the bottom of the foundation, a. 14 kPa b. 19kPa c. 13 kPa d. 15 kPa [for Nos. 33 to 40] A 1.5-m square, 0.6-m deep footing is subjected to a concentric vertical load of 160 kN and an overturning moment of 30 kN-m that acts at 45° angle from the side of the footing (i.e. it acts diagonally across the top...
A group pile in clay is shown in the figure below. Determine the maximum vertical load...
A group pile in clay is shown in the figure below. Determine the maximum vertical load Qg can be applied if the allowable consolidation settlement of the pile group is set to be 0.2 m. Use the 2: 1 stress distribution method to estimate the average effective stress in the clay layer. Qg 3 m Sand Groundwater ? table 15.72 kN/m3 Sand 3 m Ysat 18.55 kN/m2 2.5 m x 3 m Group plan 15 mNormally consolidated clay 185 nn...
Q3. A square column foundation, the following are given: a. The column load is 600 kN,...
Q3. A square column foundation, the following are given: a. The column load is 600 kN, D, 1.5 m, g 16.5 kN/m, f = 36°, and c' 0. b. The column load is 100 kips, D 3 ft, g - 105 lb/ft', f- 16°, and c' 300 lb/ft. Compute the minimum footing width required to maintain a factor of safety of 2.5 against a bearing capacity failure with Terzaghi's Method
An eccentrically loaded (one-way eccentricity) square foundation, given: B = 5 ft, L = 5 ft,...
An eccentrically loaded (one-way eccentricity) square foundation, given: B = 5 ft, L = 5 ft, Df = 4 ft, e = 0.5 ft, γt = 110 pcf, c’=0 and ϕ’ = 30°. Note the ground water table is at great depth below the footing. Calculate the general bearing capacity to determine the maximum allowable load that the foundation can carry using Meyerhof’s effective area method for a FS of 3.
Problem 3: 40 points) A square foundation was decided to be constructed to support the load...
Problem 3: 40 points) A square foundation was decided to be constructed to support the load of a column in a residential building construction project located in Claremont, CA. During the site investigation, only sandy soil (c'= 0) was encountered. The ground water was observed at the depth 1.2m from ground level. Obtained samples were tested in the lab and the internal friction angle of the soil was found to be equal to 30°. The unit weight of the soil...
Q6. An eccentrically loaded foundation is shown in figure below. Use FS of 4 and determine the maximum allowable load that the foundation can carry. Use Meyerhof's effective area method (Eccentricity in one direction ? 17 kN/m3 c'=0 ?' = 30° only) e = 0.15 m 1.0 m all 1.5m× 1.5m Centerline
For 2 continuous foundation was constructed with 3.6 m apart (center to center) on a sand soil with Q' = 40° and y = 19 kN/m3. The width of each foundation is 3 m and it was placed at depth of 1.5 m. Determine the allowable bearing capacity (Use F.S =3).
Help please!
Problem 2 Figure 2 shows a continuous footing a) Determine the ultimate bearing capacity () if H 1.5 m b) At what maximum value of H/B will the clay layer not have any effect on the ultimate bearing capacity ( of the foundation. Sand 1.2 m 1 18 kN/m3 φ' = 40° B=2m Clay30 kN/m2 Figure 2
A 2 m wide continuous foundation carrying a 260 kN/m wall load is placed at a depth of 1.0 m in sand where the unit weight is 19.0 kN/m3 and (N)so is 32. Assuming Poisson's ratio of 0.15, estimate the settlement of the foundation. Use the procedure outlined in Section 9.7. 9.15
14.13
The final
answer
14.3 Foundation engineering 143 A driven closed-ended pipe pile is shown in Figure 14.40. a. Find the ultimate point load. b. Determine the ultimate frictional resistance, Q use K-1.4 and 8-0.6 c. Calculate the allowable load of the pile; use FS- 4 ncrete pile 20 m long with a cross section of 381 mm x 381 mm is fully ubook3rdEd(chpd-14)%2og.pdf Chapter 14 Deep Foundations-Piles and Drilled Shafts Sand -16 kN/m 6m Sand -184AN 30 ti m...
solve for q max, min, and intermediate bearing
pressure at the bottom of the foundation
. pressure at the bottom of the foundation, a. 14 kPa b. 19kPa c. 13 kPa d. 15 kPa [for Nos. 33 to 40] A 1.5-m square, 0.6-m deep footing is subjected to a concentric vertical load of 160 kN and an overturning moment of 30 kN-m that acts at 45° angle from the side of the footing (i.e. it acts diagonally across the top...
A group pile in clay is shown in the figure below. Determine the maximum vertical load Qg can be applied if the allowable consolidation settlement of the pile group is set to be 0.2 m. Use the 2: 1 stress distribution method to estimate the average effective stress in the clay layer. Qg 3 m Sand Groundwater ? table 15.72 kN/m3 Sand 3 m Ysat 18.55 kN/m2 2.5 m x 3 m Group plan 15 mNormally consolidated clay 185 nn...
Q3. A square column foundation, the following are given: a. The column load is 600 kN, D, 1.5 m, g 16.5 kN/m, f = 36°, and c' 0. b. The column load is 100 kips, D 3 ft, g - 105 lb/ft', f- 16°, and c' 300 lb/ft. Compute the minimum footing width required to maintain a factor of safety of 2.5 against a bearing capacity failure with Terzaghi's Method
Problem 3: 40 points) A square foundation was decided to be constructed to support the load of a column in a residential building construction project located in Claremont, CA. During the site investigation, only sandy soil (c'= 0) was encountered. The ground water was observed at the depth 1.2m from ground level. Obtained samples were tested in the lab and the internal friction angle of the soil was found to be equal to 30°. The unit weight of the soil...
