Please answer this question step by step correctly parts a, b, and c so I can understand it. I'm having trouble understanding VISUALIZATION OF DYNAMICAL SYSTEMS. For each part, determine all the equilibrium points by hand. Then, PLOT THE VECTOR FIELD AND THE PHASE PORTRAIT. From the phase portrait, determine stability(stable ISL, locally or globally asymptotically stable, or unstable) of EACH EQUILIBRIUM POINT. PLEASE ANSWER ALL THE PARTS. Here is the rest of the question. This is due tomorrow.

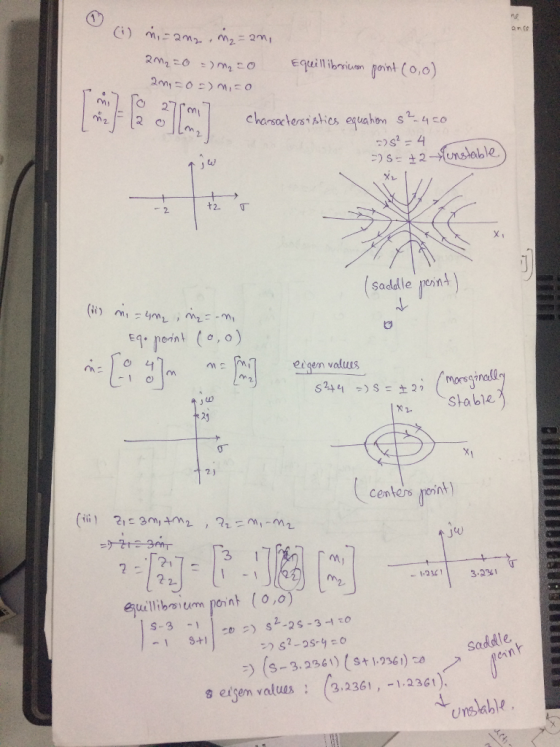

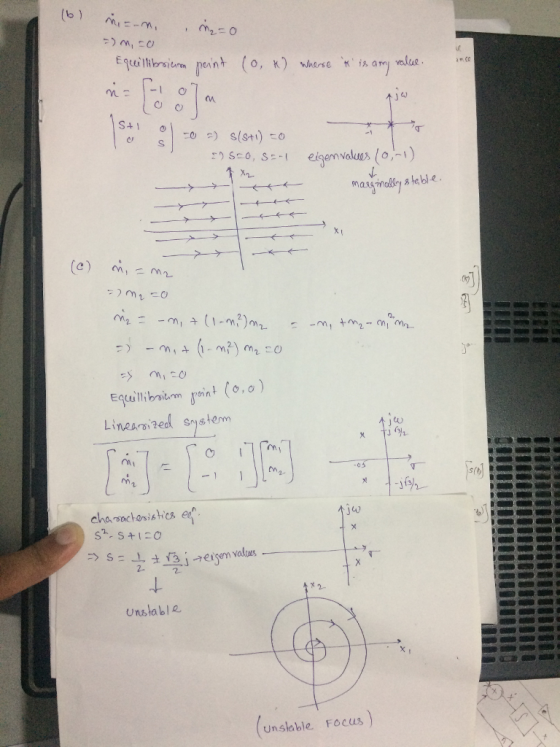

![1. [25 points] Visualization of dynamical systems. For each of the following autonomous dynamical sys- tems, determine all the equilibrium points by hand. Then, plot the vector field and the phase portrait. From the phase portrait, determine the stability (stable ISL, locally or globally asymptotically stable, or unstable) of each equilibrium point.](http://img.homeworklib.com/questions/0ef5abb0-5163-11eb-a7fa-2fc4f8de34bb.png?x-oss-process=image/resize,w_560)

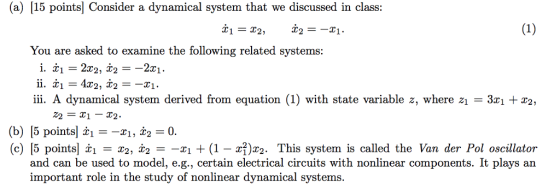

![(a) 15 points] Consider a dynamical system that we discussed in class: You are asked to examine the following related systems: ii. A dynamical system derived from equation (1) with state variable z, where z1 3 2, 22 = X1-X2. (b) [5 points -r1, i2-0. (c) [5 points| x1 = χ2, χ2 =-r1 + (1-z?)x2. This system is called the Van der Pol oscillator and can be used to model, e.g., certain electrical circuits with nonlinear components. It plays ain important role in the study of nonlinear dynamical systems.](http://img.homeworklib.com/questions/0f635b50-5163-11eb-b1c7-a5ab3564e0a8.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Please answer this question step by step correctly parts
a, b, and c so I can...
please solve this
nd the critical points and phase portrait of the given autonomous rst-order differential equation. Classify each critical point as asymptotically stable, unstable, or semi-stable. By hand, sketch typical solution curves in the regions in the xy-plane determined by the graphs of the equilibrium solutions(a) dy/dx= y2-y3(b) dy/dx=(y-2)4
1. (This is problem 5 from the second assignment sheet, reprinted here.) Consider the nonlinear system a. Sketch the ulllines and indicate in your sketch the direction of the vector field in each...
1. (This is problem 5 from the second assignment sheet, reprinted here.) Consider the nonlinear system a. Sketch the ulllines and indicate in your sketch the direction of the vector field in each of the regions b. Linearize the system around the equilibrium point, and use your result to classify the type of the c. Use the information from parts a and b to sketch the phase portrait of the system. 2. Sketch the phase portraits for the following systems...
1 Sec. 8.1 8.2 Homework For each of the following systems, find all critical points (b)...
1
Sec. 8.1 8.2 Homework For each of the following systems, find all critical points (b) find the linearization at each critical point and determine the type and stability of each critical point (c) draw a phase portrait confirming the type and stability of all critical points (1) / - (2+)(y-*) V = (4-1)y + r) (2) 1-1- (4) 2 - 1 - ry (5) x = (1-1-y) V-(3--20) Bonus computational work (use technology!) 1. Uee pplane to plot the...
Please show all work and answer all the questions so I can learn how to do it on my own. Thank yo...
Please show all work and answer all the questions so I can learn
how to do it on my own. Thank you in advance.
(GM,PM,wcg,wepl-margin(sys) computes the gain margin GM, the phase margin PM, and the associated frequencies weg and wep. They can also be read from the Bode plot. G(s) R(s) EX G(s)- (s +10(s+1)2 Questions Draw the Bode plot when K-1, find the gain margin, and determine the closed-loop stability. (b) Convert the gain margin to a normal...
Please provide step by step details for the answers from parts (a) and (b). Thumps up...
Please provide step by step details for the answers from parts
(a) and (b). Thumps up for a well explain and sketch answer.
50000 5. (12 pts) Consider the transfer function T (s) = 7 (1+1000) a. Use hand calculations (show all your work) to obtain asymptotic equations for all regions of the Bode magnitude response of the system. Sketch (by hand) the Bode magnitude plot indicating the slope of the various segments. b. Analyze the system phase response and...
1. (20 points) Let (a) Determine and plot the equilibrium points and nullclines of the system....
1. (20 points) Let
(a) Determine and plot the equilibrium points and nullclines of
the system.
(b) Show the direction of the vector field between the
nullclines
(c) Sketch some solution curves starting near, but not on, the
equilibrium point(s).
(d) Label each equilibrium point as stable or unstable depending on
the behavior of the
solutions nearby, and describe the long-term behavior of all of the
solutions.
Please show all work and answer ASAP!! 5) Consider the epidemic model x' = -3.cy -0.5.0...
Please show all work and answer
ASAP!!
5) Consider the epidemic model x' = -3.cy -0.5.0 + 0.5 y' = 3.cy - 1.5y Find all the equilibrium points and determine their type and stability type. Show the equilibrium points on the (x,y)-plane and sketch the phase portrait near each equilibrium showing the direction of trajectories. For saddles/nodes show the eigenvectors; for spirals determine the direction of rotation.
Consider the nonlinear System of differential equations di dt dt (a) Determine all critical points of the system (b) For each critical point with nonnegative x value (20) i. Determine the linearised...
Consider the nonlinear System of differential equations di dt dt (a) Determine all critical points of the system (b) For each critical point with nonnegative x value (20) i. Determine the linearised system and discuss whether it can be used to approximate the ii. For each critical point where the approximation is valid, determine the general solution of iii. Sketch by hand the phase portrait of each linearised system where the approximation behaviour of the non-linear system the linearised system...
Please answer all parts or dont answer any of them. Analyzing Models step(sys,t) impulse(sys,t) Isim(sys,u,t) Time...
Please answer all parts or dont answer any of them.
Analyzing Models step(sys,t) impulse(sys,t) Isim(sys,u,t) Time response for step input Time response for impulse input Time response for arbitrary input the system G6)55+6 EX Plot the responses o (a) step input, (b) impulse input; (c) sin(2/) ANS Poles and Zeros p-pole(sys) z-zero(sys) EX Find the poles and zcros for the following system Computes the poles p of the LTI model sys (p is a column vector). Returns the zeros of...
Can I please get full working and explanations for each step for this past exam question. Both parts (a) and (b) and (c)...
Can I please get full working and explanations for each step for
this past exam question. Both parts (a) and (b) and (c). Thanks
will up-vote
Question B1 The isomerisation shown below has an equilibrium constant of K = 0.74 k1 trans-Co(en)2(H2O)OH) k1 cis-Co(en)2(H2O)(OH)2 The kinetics of the reaction was followed and it was found that a plot of the natural log of the concentration of the cis isomer ('cis') minus its equilibrium concentration (In([cis]- [cis]eq) versus time gave a...
1. (This is problem 5 from the second assignment sheet, reprinted here.) Consider the nonlinear system a. Sketch the ulllines and indicate in your sketch the direction of the vector field in each of the regions b. Linearize the system around the equilibrium point, and use your result to classify the type of the c. Use the information from parts a and b to sketch the phase portrait of the system. 2. Sketch the phase portraits for the following systems...
1
Sec. 8.1 8.2 Homework For each of the following systems, find all critical points (b) find the linearization at each critical point and determine the type and stability of each critical point (c) draw a phase portrait confirming the type and stability of all critical points (1) / - (2+)(y-*) V = (4-1)y + r) (2) 1-1- (4) 2 - 1 - ry (5) x = (1-1-y) V-(3--20) Bonus computational work (use technology!) 1. Uee pplane to plot the...
Please show all work and answer all the questions so I can learn
how to do it on my own. Thank you in advance.
(GM,PM,wcg,wepl-margin(sys) computes the gain margin GM, the phase margin PM, and the associated frequencies weg and wep. They can also be read from the Bode plot. G(s) R(s) EX G(s)- (s +10(s+1)2 Questions Draw the Bode plot when K-1, find the gain margin, and determine the closed-loop stability. (b) Convert the gain margin to a normal...
Please provide step by step details for the answers from parts
(a) and (b). Thumps up for a well explain and sketch answer.
50000 5. (12 pts) Consider the transfer function T (s) = 7 (1+1000) a. Use hand calculations (show all your work) to obtain asymptotic equations for all regions of the Bode magnitude response of the system. Sketch (by hand) the Bode magnitude plot indicating the slope of the various segments. b. Analyze the system phase response and...
1. (20 points) Let
(a) Determine and plot the equilibrium points and nullclines of
the system.
(b) Show the direction of the vector field between the
nullclines
(c) Sketch some solution curves starting near, but not on, the
equilibrium point(s).
(d) Label each equilibrium point as stable or unstable depending on
the behavior of the
solutions nearby, and describe the long-term behavior of all of the
solutions.
Please show all work and answer
ASAP!!
5) Consider the epidemic model x' = -3.cy -0.5.0 + 0.5 y' = 3.cy - 1.5y Find all the equilibrium points and determine their type and stability type. Show the equilibrium points on the (x,y)-plane and sketch the phase portrait near each equilibrium showing the direction of trajectories. For saddles/nodes show the eigenvectors; for spirals determine the direction of rotation.
Consider the nonlinear System of differential equations di dt dt (a) Determine all critical points of the system (b) For each critical point with nonnegative x value (20) i. Determine the linearised system and discuss whether it can be used to approximate the ii. For each critical point where the approximation is valid, determine the general solution of iii. Sketch by hand the phase portrait of each linearised system where the approximation behaviour of the non-linear system the linearised system...
Please answer all parts or dont answer any of them.
Analyzing Models step(sys,t) impulse(sys,t) Isim(sys,u,t) Time response for step input Time response for impulse input Time response for arbitrary input the system G6)55+6 EX Plot the responses o (a) step input, (b) impulse input; (c) sin(2/) ANS Poles and Zeros p-pole(sys) z-zero(sys) EX Find the poles and zcros for the following system Computes the poles p of the LTI model sys (p is a column vector). Returns the zeros of...
Can I please get full working and explanations for each step for
this past exam question. Both parts (a) and (b) and (c). Thanks
will up-vote
Question B1 The isomerisation shown below has an equilibrium constant of K = 0.74 k1 trans-Co(en)2(H2O)OH) k1 cis-Co(en)2(H2O)(OH)2 The kinetics of the reaction was followed and it was found that a plot of the natural log of the concentration of the cis isomer ('cis') minus its equilibrium concentration (In([cis]- [cis]eq) versus time gave a...
