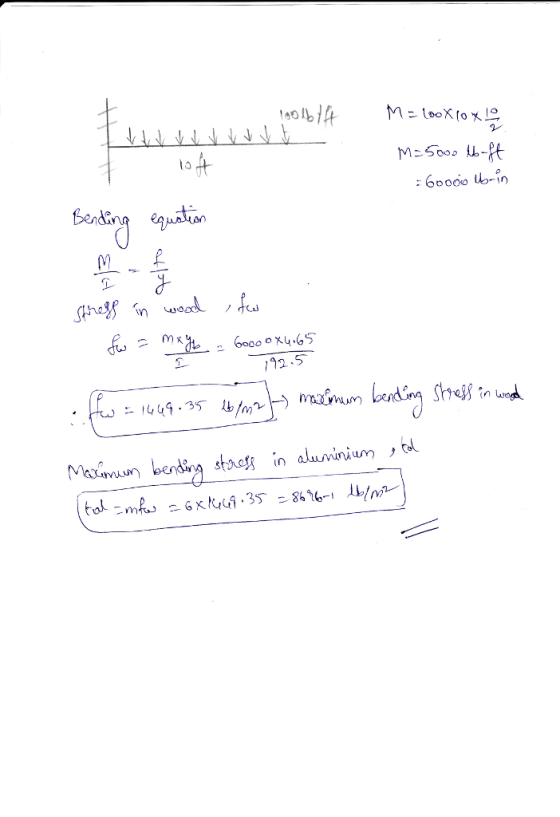

100 lb/tht A cantilever beam 10 ft long carries a uniformly distributed load of w 100...
A simply supported composite beam 3 m long carries a uniformly distributed load of intensity q= 30 kN/m (see figure)
A simply supported composite beam 3 m long carries a uniformly distributed load of intensity q= 30 kN/m (see figure). The beam is constructed of a wood member, 100 mm wide by 150 mm deep, and is reinforced on its lower side by a steel plate 8 mm thick and 100 mm wide. (a) Find the maximum bending stresses σw and σs, in the wood and steel, respectively, due to the uniform load if the moduli of elasticity are Ew =...
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. De...
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. Determine (a) the maximum horizontal shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress BC MB Answers: ksi ƠC,ma,- (b) ksi ƠT,max= (c)
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed...
A cantilever wood beam with a span of L = 21 ft
supports a linearly distributed load with maximum intensity of
w0 = 250 lb/ft. The allowable bending stress of
the wood is 1.70 ksi. If the aspect ratio of the solid rectangular
cross section is specified as h/b = 0.50,
determine the minimum width b that can be used for the
beam.
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed load...
The maximum shear force in a cantilever beam of length "L ft" with uniformly distributed load...
The maximum shear force in a cantilever beam of length "L ft" with uniformly distributed load throughout "w lb/ft"?
Chapter 8, Supplemental Question 067 (Go Tutorial) The simply supported beam shown carries a uniformly distributed...
Chapter 8, Supplemental Question 067 (Go Tutorial) The simply supported beam shown carries a uniformly distributed load of w 28 kN/m on overhang BC. The beam is constructed of a Southern pine [E 12 GPa] timber that is reinforced on its upper surface by a steel [E-200 GPa] plate as shown. The beam spans are LAB-4.5 m and Lec-1.25 m. The wood beam has dimensions of bw-230 mm and dw-310 mm. The steel plate dimensions are bs - 245 mm...
A rectangular beam of width unity and length 2L carries a uniformly distributed load of q lb/ft. ...
A rectangular beam of width unity and length 2L carries a
uniformly distributed load of q lb/ft. Shear forces V support the
beam at both ends. List the six boundary conditions for this beam
the stresses must satisfy using the following stresses:
t1D5 (6x1x2 -4x2) 2
t1D5 (6x1x2 -4x2) 2
A) Two uniformly distributed loads of w=3100 lb/ft act on the simply supported beam shown in Figu...
a) Two uniformly distributed loads of w=3100 lb/ft act on the
simply supported beam shown in Figure A. The beam spans are a=6.8
ft and L=16.0 ft. The beam cross section shown in Figure B has
dimensions of b1=17.75 in., d1=6.00 in., b2=10.75 in., and d2=10.25
in. Calculate the maximum tensile and compressive bending stresses
produced in segment BC of the beam.
.uri ะ!! Apua -CENG TS.rvicu: s.. O ColkaguulEnginuu.. WileyPLUS pot, Mechanics of Materials: An Integrated Learning system, ath...
Question 1 (Total 100/3 Marks) Figure 1 (all units are mm) shows a simply supported beam of span ...
Question 1 (Total 100/3 Marks) Figure 1 (all units are mm) shows a simply supported beam of span 2500 mm with a 5 kN/m load. The cross-section of the beam is a composite section made from two steel plates attached to the top and bottom of a timber section. The top steel plate is 5 mm wide and 20 mm deep. The bottom steel plate is also 5 mm wide but 10 mm deep. The timber section is 50 mm...
A composite beam of steel and wood is loaded as shown. The dimensions of the wood block are 4.00 in by 16.0 inches, with steel plates that are 4.00 in wide and 0.75 in thick. The load varies along th...
A composite beam of steel and wood is loaded as shown. The dimensions of the wood block are 4.00 in by 16.0 inches, with steel plates that are 4.00 in wide and 0.75 in thick. The load varies along the beam as, w(x) 100 5x2 where x-0 at the wall, x is in feet, and the load is in kip/ft. The length of the beam is 15 feet. Assume all within elastic limit. Determine The reactions at the wall a....
A composite beam of steel and wood is loaded as shown. The dimensions of the wood block are 4.00 in by 16.0 inches, with steel plates that are 4.00 in wide and 0.75 in thick. The load varies along th...
A composite beam of steel and wood is loaded as shown. The dimensions of the wood block are 4.00 in by 16.0 inches, with steel plates that are 4.00 in wide and 0.75 in thick. The load varies along the beam as, w(x) 100 5x2 where x-0 at the wall, x is in feet, and the load is in kip/ft. The length of the beam is 15 feet. Assume all within elastic limit. Determine The reactions at the wall a....
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. Determine (a) the maximum horizontal shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress BC MB Answers: ksi ƠC,ma,- (b) ksi ƠT,max= (c)
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever wood beam with a span of L = 21 ft
supports a linearly distributed load with maximum intensity of
w0 = 250 lb/ft. The allowable bending stress of
the wood is 1.70 ksi. If the aspect ratio of the solid rectangular
cross section is specified as h/b = 0.50,
determine the minimum width b that can be used for the
beam.
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed load...
Chapter 8, Supplemental Question 067 (Go Tutorial) The simply supported beam shown carries a uniformly distributed load of w 28 kN/m on overhang BC. The beam is constructed of a Southern pine [E 12 GPa] timber that is reinforced on its upper surface by a steel [E-200 GPa] plate as shown. The beam spans are LAB-4.5 m and Lec-1.25 m. The wood beam has dimensions of bw-230 mm and dw-310 mm. The steel plate dimensions are bs - 245 mm...
A rectangular beam of width unity and length 2L carries a
uniformly distributed load of q lb/ft. Shear forces V support the
beam at both ends. List the six boundary conditions for this beam
the stresses must satisfy using the following stresses:
t1D5 (6x1x2 -4x2) 2
t1D5 (6x1x2 -4x2) 2
a) Two uniformly distributed loads of w=3100 lb/ft act on the
simply supported beam shown in Figure A. The beam spans are a=6.8
ft and L=16.0 ft. The beam cross section shown in Figure B has
dimensions of b1=17.75 in., d1=6.00 in., b2=10.75 in., and d2=10.25
in. Calculate the maximum tensile and compressive bending stresses
produced in segment BC of the beam.
.uri ะ!! Apua -CENG TS.rvicu: s.. O ColkaguulEnginuu.. WileyPLUS pot, Mechanics of Materials: An Integrated Learning system, ath...
Question 1 (Total 100/3 Marks) Figure 1 (all units are mm) shows a simply supported beam of span 2500 mm with a 5 kN/m load. The cross-section of the beam is a composite section made from two steel plates attached to the top and bottom of a timber section. The top steel plate is 5 mm wide and 20 mm deep. The bottom steel plate is also 5 mm wide but 10 mm deep. The timber section is 50 mm...
A composite beam of steel and wood is loaded as shown. The dimensions of the wood block are 4.00 in by 16.0 inches, with steel plates that are 4.00 in wide and 0.75 in thick. The load varies along the beam as, w(x) 100 5x2 where x-0 at the wall, x is in feet, and the load is in kip/ft. The length of the beam is 15 feet. Assume all within elastic limit. Determine The reactions at the wall a....
A composite beam of steel and wood is loaded as shown. The dimensions of the wood block are 4.00 in by 16.0 inches, with steel plates that are 4.00 in wide and 0.75 in thick. The load varies along the beam as, w(x) 100 5x2 where x-0 at the wall, x is in feet, and the load is in kip/ft. The length of the beam is 15 feet. Assume all within elastic limit. Determine The reactions at the wall a....
