A current with sinusoidal time-dependence, whose peak value is 4.55 A and frequency is 671 cycles...

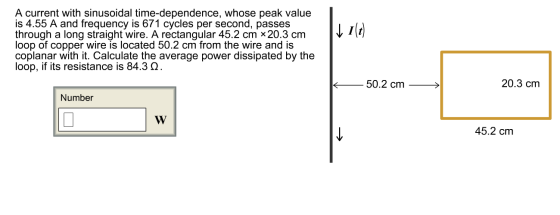

A current with sinusoidal time-dependence,
whose peak value is 4.55 A and frequency is 671 cycles per second,
passes through a long straight wire. A rectangular 45.2 cm Ý 20.3
cm loop of copper wire is located 50.2 cm from the wire and is
coplanar with it. Calculate the average power dissipated by the
loop, if its resistance is 84.3 Ω.

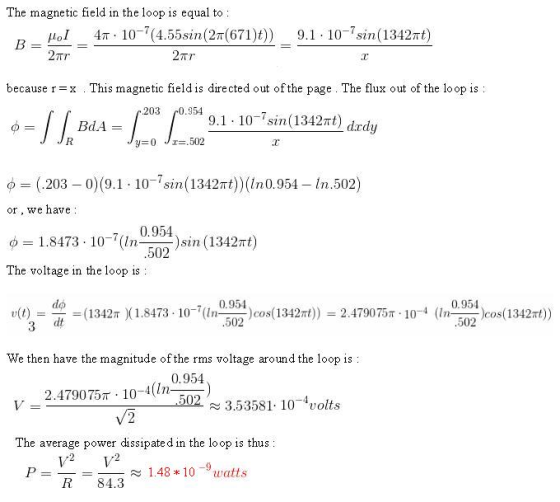

Homework Answers
Add Answer to:
A current with sinusoidal time-dependence,
whose peak value is 4.55 A and frequency is 671 cycles...
A current with sinusoidal time-dependence, whose peak value is 8.55 A and frequency is 671 cycles...
A current with sinusoidal time-dependence, whose peak value is
8.55 A and frequency is 671 cycles per second, passes through a
long straight wire. A rectangular 54.2 cm × 24.4 cm loop of copper
wire is located 60.2 cm from the wire and is coplanar with it.
Calculate the average power dissipated by the loop, if its
resistance is 54.3 Ω.
A current with sinusoidal time-dependence, whose peak value is 8.55 A and frequency is 671 cycles per second, passes...
A current with sinusoidal time-dependence, whose peak value is 6.55 A and frequency is 671 cycles...
A current with sinusoidal time-dependence, whose peak value is 6.55 A and frequency is 671 cycles per second, passes through a long straight wire. A rectangular 18.2 cm
A current with sinusoidal time-dependence, whose peak value is 9.55 A and frequency is 359 cycles...
A current with sinusoidal time-dependence, whose peak value is 9.55 A and frequency is 359 cycles per second, passes through a long straight wire. A rectangular 18.2 cm
A sinusoidally oscillating current (0) with an amplitude of 9.55 A and a frequency of 775...
A sinusoidally oscillating current (0) with an amplitude of 9.55 A and a frequency of 775 cycles per second is carried by a long, straight wire. A rectangular loop of copper wire with dimensions b-72.2 cm by c-32.5 cm is located - 80.2 cm from the straight wire, and is coplanar with it. Calculate the average power Pov dissipated by the loop if its resistance is 84.312
A sinusoidally oscillating current I() with an amplitude of 9.55 A and a frequency of 775...
A sinusoidally oscillating current I() with an amplitude of 9.55 A and a frequency of 775 cycles per second is carried by a long, straight wire. A rectangular loop of copper wire with dimensions b-72.2 cm by e 32.5 cm is located Q-80.2 cm from the straight wire, and is coplanar with it. Calculate the average power Pave dissipated by the loop if its resistance is 84.32. Pave = 1.08
A current with sinusoidal time-dependence, whose peak value is
8.55 A and frequency is 671 cycles per second, passes through a
long straight wire. A rectangular 54.2 cm × 24.4 cm loop of copper
wire is located 60.2 cm from the wire and is coplanar with it.
Calculate the average power dissipated by the loop, if its
resistance is 54.3 Ω.
A current with sinusoidal time-dependence, whose peak value is 8.55 A and frequency is 671 cycles per second, passes...
A sinusoidally oscillating current (0) with an amplitude of 9.55 A and a frequency of 775 cycles per second is carried by a long, straight wire. A rectangular loop of copper wire with dimensions b-72.2 cm by c-32.5 cm is located - 80.2 cm from the straight wire, and is coplanar with it. Calculate the average power Pov dissipated by the loop if its resistance is 84.312
A sinusoidally oscillating current I() with an amplitude of 9.55 A and a frequency of 775 cycles per second is carried by a long, straight wire. A rectangular loop of copper wire with dimensions b-72.2 cm by e 32.5 cm is located Q-80.2 cm from the straight wire, and is coplanar with it. Calculate the average power Pave dissipated by the loop if its resistance is 84.32. Pave = 1.08
