Determine the
voltage across the capacitor as a function of timeHomework Answers
Add Answer to:
Determine the
voltage across the capacitor as a function of time
t=0 300 Ω 500 Ω...

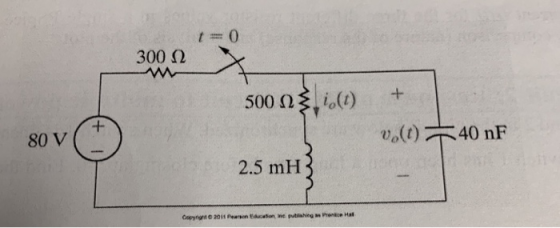

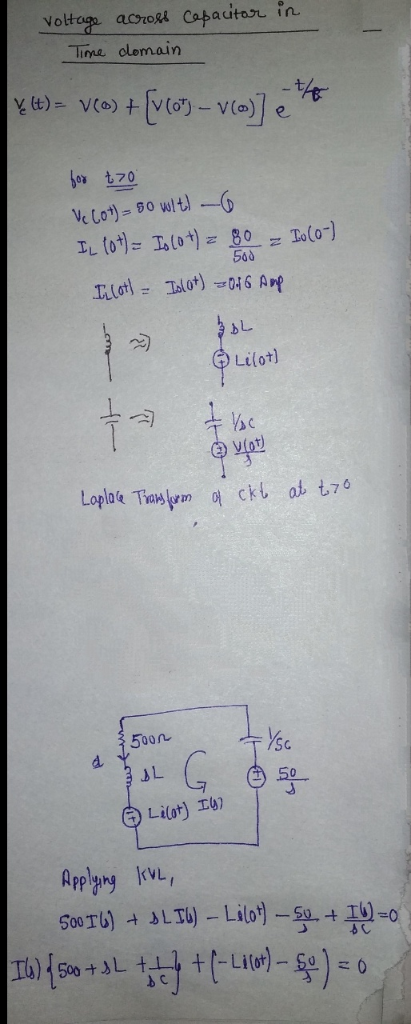

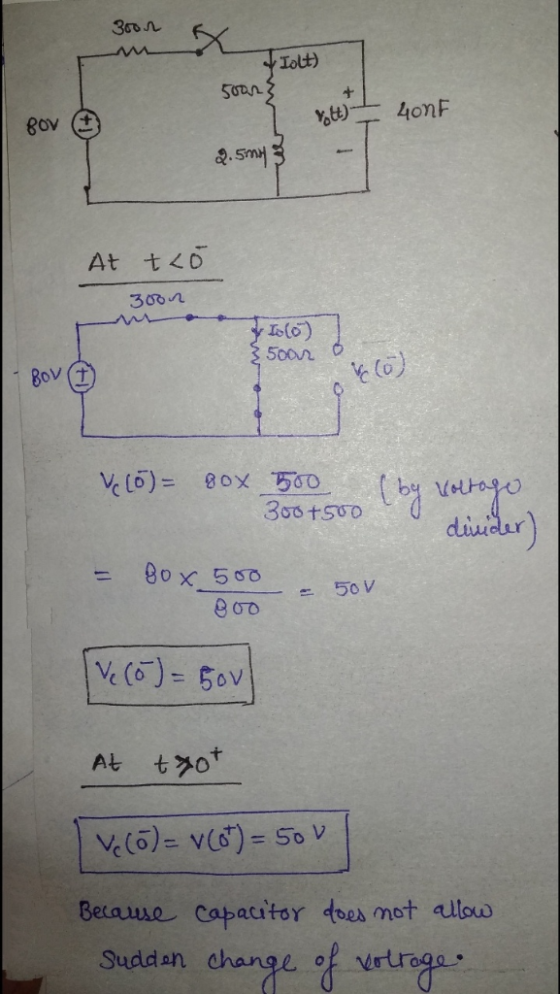

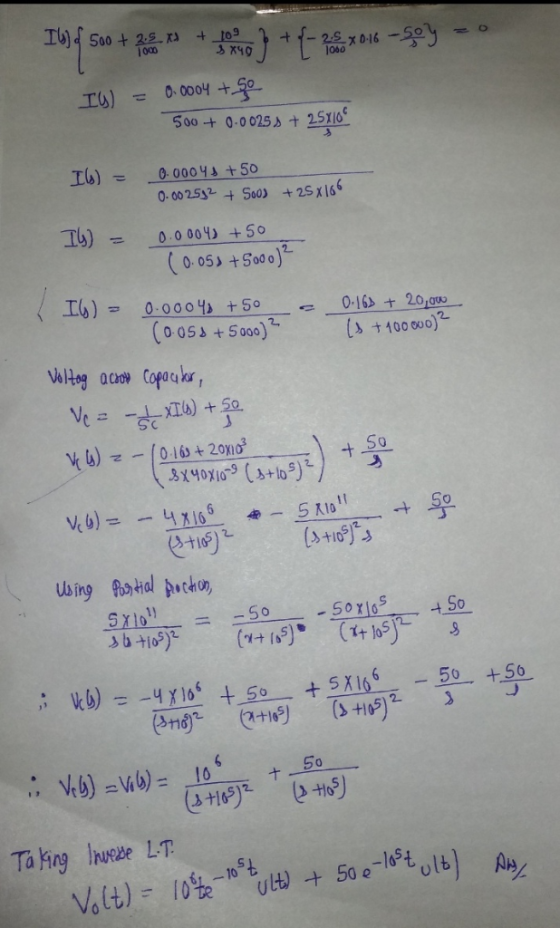

The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed a) What is the time constant for this circuit? b) What is the final voltage across the 50 capacitor? c) What is the expression for the voltage across the 50 capacitor? d) Sketch the waveform for . e) What is the maximum instantaneous current that will flow through the capacitor? f) When will the voltage reach 5.0 V?
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after...
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after the switch closes. b) v), the voltage across the capacitor after the switch has been closed for a long time. c) v(T), the voltage across the capacitor after one time constant. 2. 3 S2 I(t) 12 V+ 6 Ω 0.5 F u(t) 3. For the circuit above, write the differential equation for t > 0.
Determine the value of the voltage across the capacitor, Vc, 1 time constant after the sources...
Determine the value of the
voltage across the capacitor, Vc, 1 time constant after the sources
changes (at t=0).
In the circuit below, determine the value of the voltage across the capacitor, vc, 1 time constant after the sources change (at t=0). Hint: You do not need the value of C or R1 to answer this question. 25u(t) V c ) 100u(-+) V
At t = 0, a series-connected capacitor and inductor are placed across the terminals of a...
At t = 0, a series-connected capacitor and inductor are placed across the terminals of a black box as shown in (Figure 1). For t > 0, it is known that io = 1.5e-16,000t – 0.5e-4000t A, where t is in seconds. Part A If vc(0) = -50 V, choose the correct expression for Vo fort > 0. Vo = -600e -16,000t + 50e -4000t V Vo = 600e-16,000t – 50e-4000t V 150e -16,000t Vo = Figure 200e -4000t V...
The voltage across a 27-4F capacitor is given by the following function of time. V(t) =...
The voltage across a 27-4F capacitor is given by the following function of time. V(t) = 200 sin(500t) V Find the value of the Power in Watts at timet -0.1. (The angle is in radians) v(t) = 200 sin(5000) i(t) с
For charging process, the voltage across the capacitor as a function of time is given by,...
For charging process, the voltage across the capacitor as a function of time is given by, Vc = [1 - exp(-t/)]. (a) When the time is twice the time constant, what percentage of the maximum voltage is on the capacitor? (b) Find the time it took, in terms of the time constant, for the voltage across the capacitor to be 30% of the maximum voltage. Resistor 1000 Ohms Capacitor 1 Farad Power Supply set to 6 Volts
A 250 Ω resistor is connected in series with a 4.80 µF capacitor. The voltage across...
A 250 Ω resistor is connected in series with a 4.80 µF capacitor. The voltage across the capacitor is vC = (7.50 V)sin[(110 rad/s)t]. Derive an expression for the voltage vR across the resistor. (Assume the frequency is in rad/s. Use the following as necessary: t.) vR(t) = ? V Thanks
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a f...
explain and show each step please
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
Problem 3. Use the mesh-current method to determine the voltage vo across the 8 Ω resistor....
Problem 3. Use the mesh-current method to determine the voltage vo across the 8 Ω resistor. 2Ω 6Ω 40 40 V 6Ω 20 V
The capacitor in the circuit is initially uncharged, when at t = 0 s, the switch is closed. At what time is the voltage across the capacitor equal to 7.5 V?
The capacitor in the circuit is initially uncharged, when at t = 0 s, the switch is closed. At what time is the voltage across the capacitor equal to 7.5 V?
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after the switch closes. b) v), the voltage across the capacitor after the switch has been closed for a long time. c) v(T), the voltage across the capacitor after one time constant. 2. 3 S2 I(t) 12 V+ 6 Ω 0.5 F u(t) 3. For the circuit above, write the differential equation for t > 0.
Determine the value of the
voltage across the capacitor, Vc, 1 time constant after the sources
changes (at t=0).
In the circuit below, determine the value of the voltage across the capacitor, vc, 1 time constant after the sources change (at t=0). Hint: You do not need the value of C or R1 to answer this question. 25u(t) V c ) 100u(-+) V
At t = 0, a series-connected capacitor and inductor are placed across the terminals of a black box as shown in (Figure 1). For t > 0, it is known that io = 1.5e-16,000t – 0.5e-4000t A, where t is in seconds. Part A If vc(0) = -50 V, choose the correct expression for Vo fort > 0. Vo = -600e -16,000t + 50e -4000t V Vo = 600e-16,000t – 50e-4000t V 150e -16,000t Vo = Figure 200e -4000t V...
The voltage across a 27-4F capacitor is given by the following function of time. V(t) = 200 sin(500t) V Find the value of the Power in Watts at timet -0.1. (The angle is in radians) v(t) = 200 sin(5000) i(t) с
explain and show each step please
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
Problem 3. Use the mesh-current method to determine the voltage vo across the 8 Ω resistor. 2Ω 6Ω 40 40 V 6Ω 20 V
