Answer #1
![tot There are all RefL Welle) tı 1836 | 28-125 33-33 of RL = 1, R₂ = 6 į bei=4.765 PRL = IFR = (45] Re =18-360 THR=2, R:t, Vs](http://img.homeworklib.com/questions/285c7660-5216-11eb-8eb1-d58672a008c7.png?x-oss-process=image/resize,w_560)

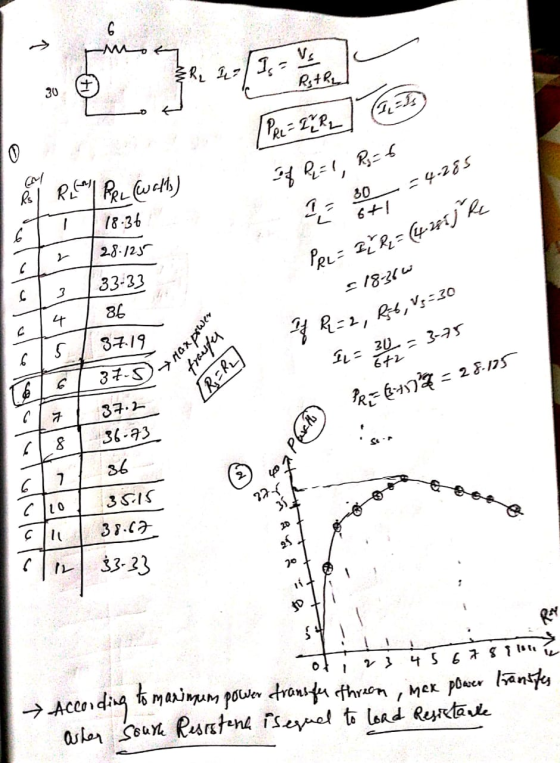

tot There are all RefL Welle) tı 1836 | 28-125 33-33 of RL = 1, R₂ = 6 į bei=4.765 PRL = IFR = (45] Re =18-360 THR=2, R:t, Vs=30 IL = 30 = 3-75 PREET = 28.175 86 37.19 37.57 7foxaev froisses F [R = R2) te 6 s 37.2 36.73 hc10 of 36 35-15 38.67 110 Tu 33-33 otinį 4 5 6 7 8 9 10 → According to maximum power transfer thream, max power transfer asher South Resistana is equal to load Resistante
Know the answer?
Add Answer to:
Q Ü♡ 4/6/20 max Power transfer Lab. 30v l complete the following chart Re (ohn) |...
Not the answer you're looking for?
Ask your own homework help question.
Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
EXPERIMENT 6 SUPERPOSITION - INTERFACE CIRCUITS - MAX POWER TRANSFER OBJECTIVE: • To implement the circuits...

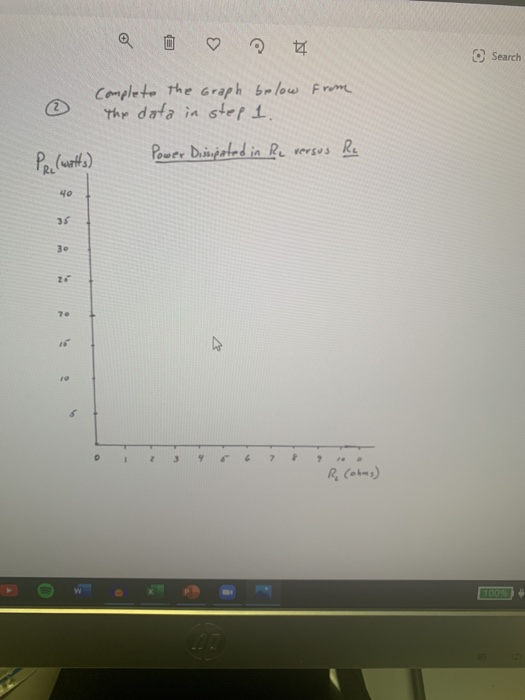

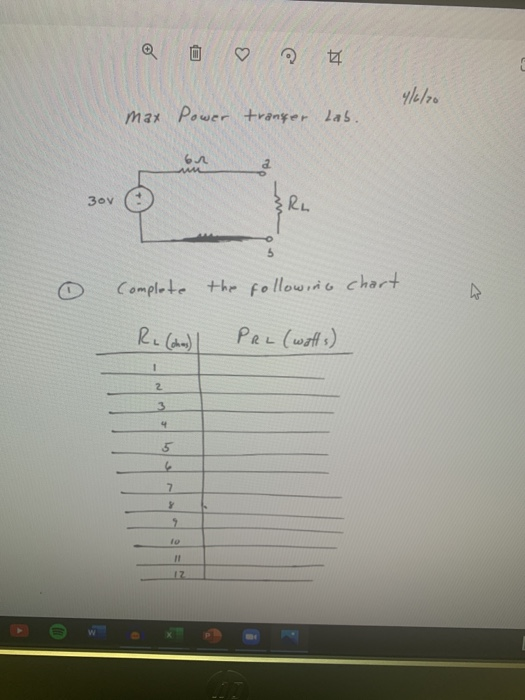

EXPERIMENT 6 SUPERPOSITION - INTERFACE CIRCUITS - MAX POWER TRANSFER OBJECTIVE: • To implement the circuits associated with applying the Superposition Theorem. • To design an interface circuit to comply with a specified output. • To establish the relationship between source and load resistance for the transfer of maximum power. PARTS LIST: 1- 3K 1 - 7502 1 - 2K 1-5102 1 - 1.5K 1 - 240 2 1 - 1K Resistor values for the design are not listed. PRE-LAB:...
EXPERIMENT 6 SUPERPOSITION - INTERFACE CIRCUITS - MAX POWER TRANSFER OBJECTIVE: • To implement the circuits associated with applying the Superposition Theorem. • To design an interface circuit to comply with a specified output. • To establish the relationship between source and load resistance for the transfer of maximum power. PARTS LIST: 1- 3K 1 - 7502 1 - 2K 1-5102 1 - 1.5K 1 - 240 2 1 - 1K Resistor values for the design are not listed. PRE-LAB:...
