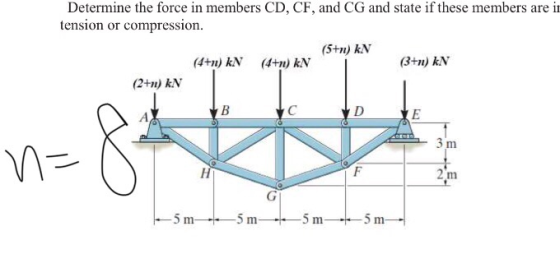

Determine the force in members CD, CF, and CG and state if these members are in...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

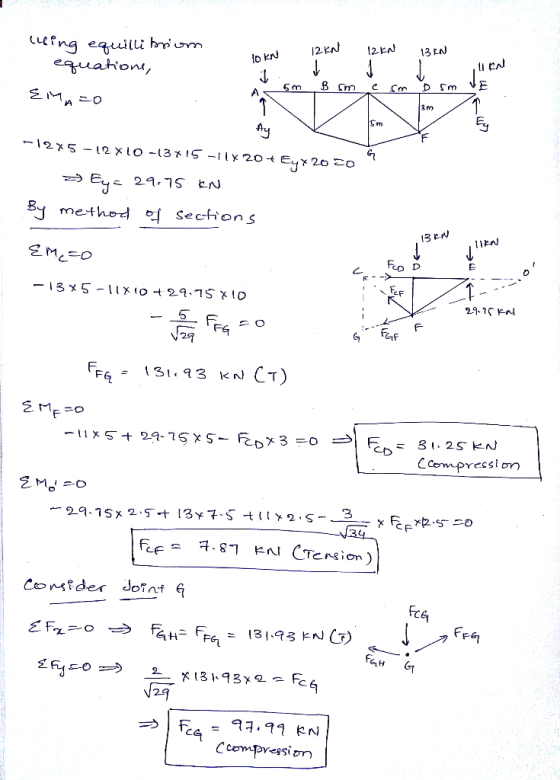

efng equilu brm ezuation, 13 EN 12EN 2EN C 6m EMAO Ay 12x5-L2 x10 -137 I5 -1ix 20t Eyx 20 20 B method o Secfions MO FEo D ->

Answer 2

Similar Homework Help Questions

Determine the force on members CD, CF, and CG and state if they are in tension...

Determine the force on members CD, CF, and CG and state if they are in tension or compression. Part A Consider the truss shown in (Figure 1) Suppose that F1 4.5 kN and F2 6 kN Determine the force in member CD and state if this member is in t Express your answer to three significant figures and include t case of tension Fcn Value Units CD Submit Request Answer Part B Figure 1 of 1 Determine the force in...
Problem 1 Determine the force in each member of the truss and state if the members...

Problem 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Please use Method of Joint) Given: P, = 500 lb P, = 1500 lb a=10 ft b=10 ft Problem 2 Problem 3 Determine the force in members CD, CF, and GF of the truss. State if these members are in tension or compression. (Please use Method of Section) 5 kN 4 kN 4 kN 3 kN 2 kN (...
5. Determine the forces in members FG, CF and CG of the truss. State if the...

5. Determine the forces in members FG, CF and CG of the truss. State if the members are in tension or compression. Assume all members are pin connected. g 10.5 ft 6 ſt A . 10 k 24 ft, 4 @ 6ft

Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD...

Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD using method of sections and state if the members are in tension or compression. Then use the previous result to find the force in member JE using the method of joints. 30 kN 20 KN 15 kN 15 kN 10 kN 5 kN LKL HG B FI 3 @ 1 m - 3 m 6@ 3 m = 18 m Problem 4 EM2 Find...
