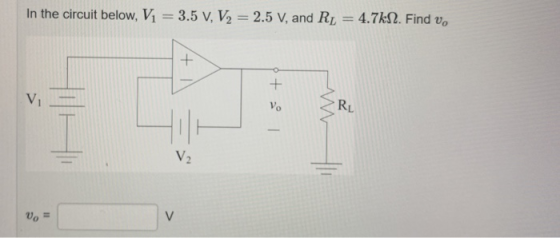

In the circuit below, V1 = 3.5 V, V2 = 2.5 V, and RL = 4.7kN....

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

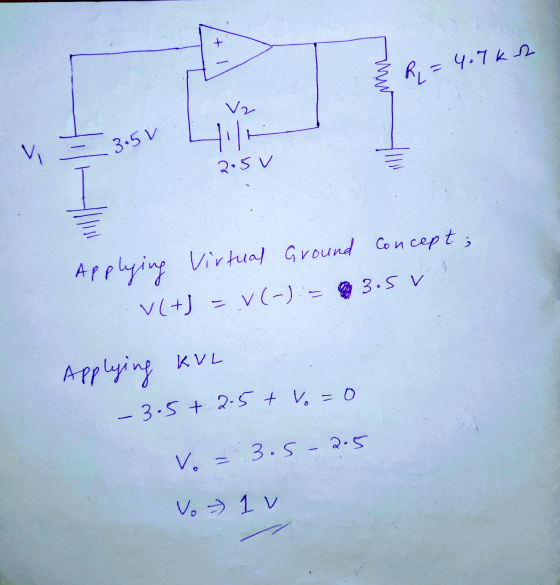

R=4.7k2 V2 4. Vi 3.5V 2.5v Applying Virtual Ground Concept; V(+) = V(-) = 3.5 V Applying kul .3.5+ 2.5+ Vo=0 V. 3.5 - 2.5 Vo

Do upvote

Answer 2

Similar Homework Help Questions

For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=12.0 K2, R2=9.0 KQ,...

For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=12.0 K2, R2=9.0 KQ, R3=1.0 K, R4=1.0 K2, R5=9.0 K and RL=16.8 K. R5 R1 + R4 Vo 14 V1 R2 RL + V2 no R3 Answer: OV Consider the same circuit as above, but with the following parameters: if Vo=40 V, V1=0.2 V, V2=0.5V, R1=7.3 K2, R2=11.9 K2, R3=1.0 K, R4=0.8 K2, R5=10 K2 and RL=17 K2. What is the magnitude of the current 14 through resistor...
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=9.1 K12, R2=9.0 KN,...

For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=9.1 K12, R2=9.0 KN, R3=1.2 K12, R4=1.0 K12, R5=9.0 K12 and RL=16.1 K12. R5 R1 w w + R4 Vo 14 1 + v1 R2 RL + V2 win R3 Consider the same circuit as above, but with the following parameters: if Vo=40 V, V1=0.2 V, V2=0.5V, R1=8.3 KN, R2=9.8 K12, R3=1.0 KN, R4=1.1 K12, R5=10 KN and RL=21 KN. What is the magnitude of the current 14...
Design the circuit below using Multisim: Then adjust value of V1 and V2 from table below...

Design the circuit below using Multisim: Then adjust value of V1 and V2 from table below to find Vo: Please help me with this problem, thank you R3 100K +15 R2 V2 100K 6 Vo R1 5O-15 Џ 100K V1 Vi (V) V2 (V) +2 +5 +6 +5 +8 +5 +3 -1V +8 -2

(1 point) Problem 5 In the circuit below, Vl = 4 V. V2 = 0.9 V....

(1 point) Problem 5 In the circuit below, Vl = 4 V. V2 = 0.9 V. and RL = 1 .2kS2. Find vo Vi- RL 0
In the circuit below, what are the voltages of V, and V? V1 - V2 +...

In the circuit below, what are the voltages of V, and V? V1 - V2 + + + + 12 V 5 V 4V
In the circuit below v1 = 45 V, v2 = -60 V, v3 = 15 V, R1 = 6.3 kΩ, and R2 = 4.9 kΩ.

In the circuit below v1 = 45 V, v2 = -60 V, v3 = 15 V, R1 = 6.3 kΩ, and R2 = 4.9 kΩ.Transform the left two practical voltage sources in the circuit below into practical current sources. Combine resistors and ideal current sources and then transform the resultant practical current source into a practical voltage source. Finally, combine the ideal voltage sources.(a) If RL = 7.4 kΩ, find the power delivered to it.(b) What is the maximum power...

For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 KO, R2=9.0 KA,...

For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 KO, R2=9.0 KA, R3=0.7 KA, R4=1.0 KN, R5=9.0 KO and RL=16.2 KN. R5 R1 + R4 Vo 14 + + V1 R2 w RL V2 R3 Answer:
For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 K12, R2=9.0 K2,...

For the following multistage amplifier, find V2 if Vo=40 V, V1=0.2 V, R1=8.3 K12, R2=9.0 K2, R3=0.7 KS2, R4=1.0 KN, R5=9.0 KN and RL=16.2 KA. R5 R1 w + R4 Vo 14 + V1 R2 RL V2 R3 We were unable to transcribe this image
(1 point) For the circuit below, V1 = 13 V, V2 = 8 V, V3 =...

(1 point) For the circuit below, V1 = 13 V, V2 = 8 V, V3 = -2 V. L1 = 22 mH, L2 = 18 mH, L3 = 46 mH. R1 = 22 12, R2 = 26 12, R3 = 25 12, R4 = 8 12, R5 = 47 12, R6 = 22 12, Find (a) i1, (b) i2, (C) v. 1+ RG V2 min to-rööviz w ell + V3 Zamo 2013 Paul Hummel BY NC SA (A) 11 =...

In the circuit below V1=(100∠0∘) V and V2=(100∠90∘) V. Find the complex power absorbed by: (a)...

In the circuit below V1=(100∠0∘) V and V2=(100∠90∘) V. Find the complex power absorbed by: (a) V1 (b) V2 (c) 6Ω (d) j4Ω (e) −j10Ω (f) 5Ω (a) SV1 = +j VA (b) SV2 = +j VA (c) S6Ω = +j VA (c) Sj4Ω = +j VA (d) S−j10Ω = +j VA (e) S5Ω = +j VA Please do not round. Thanks in advance. 5Ω 6Ω V2 V1 -j1OQ
