Masses M1 and M2 are supported by wires that have equal lengths when unstretched. The wire...

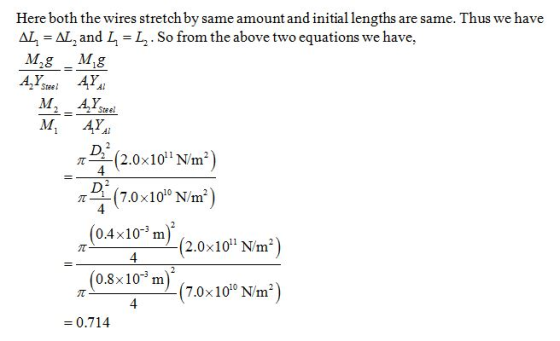

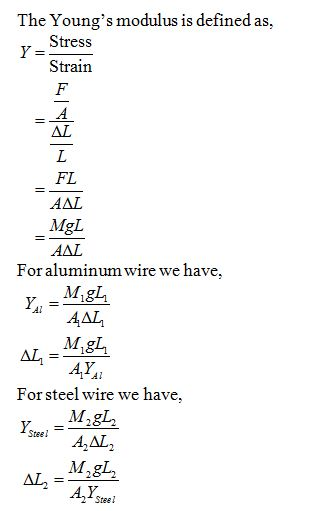

Masses M1 and M2 are supported by wires that have equal lengths when unstretched. The wire supporting M1 is an aluminum wire 0.8 mm in diameter, and the one supporting M2 is a steel wire 0.4 mm in diameter. What is the ratio m1/m2 if the two wires stretch by the same amount? Young
Homework Answers
Add Answer to:
Masses M1 and M2 are supported by wires that have equal lengths
when unstretched. The wire...
Two masses, M1 and M2, are supported by wires of equal length when unstretched. The wire...
Two masses, M1 and M2, are supported by wires of equal length when unstretched. The wire supporting M1 is an aluminum wire 0.89 mm in diameter, and the one supporting M2 is a steel wire 0.69 mm in diameter. What is the ratio M1/M2 if the two wires stretch by the same amount?
Problem 2.2-3 A steel wire and an aluminum alloy wire have equal lengths and support equal...
Problem 2.2-3 A steel wire and an aluminum alloy wire have equal lengths and support equal loads P (see figure). The moduli of elasticity for the steel and aluminum alloy are Es = 206 GPa and E,-76 GPa, respectively. Aluminum alloy Wire (a) If the wires have the same diameters, what is the ratio of the elongation of the aluminum alloy wire to the elongation of the steel wire? diameter of the aluminum alloy wire to the diameter of the...
A steel wire of length 1.6 m and diameter 0.80 mm is joined to an aluminum...
A steel wire of length 1.6 m and diameter 0.80 mm is joined to an aluminum wire of identical dimensions to make a composite wire of length 3.2 m. Find the resulting change in length of this composite wire if an object with a mass of 5.00 kg is hung vertically from one of its ends. (Neglect any effect the masses of two wires have on the changes in their lengths.) mm
6. a) Two different wires (materials 1 & 2) have lengths 1 and 2 and associated...
6. a) Two different wires (materials 1 & 2) have lengths 1 and 2 and associated diameters di and If the resistance R of the wires is to be the same show the relationship between their diameters is given by dz =d, P2h VPL b) Using the above result, determine the diameter of a nichrome wire (p=96 x 10 - Qm) of length 4 mifit is to have the same resistance has a copper wire (p=1.72 x 10- m) whose...
You have two equal masses m1 and m2 and a spring with a spring constant k....
You have two equal masses m1 and m2 and a
spring with a spring constant k. The mass m1 is
connected to the spring and placed on a frictionless horizontal
surface at the relaxed position of the spring. You then hang mass
m2, connected to mass m1 by a
massless cord, over a pulley at the edge of the horizontal surface.
When the entire system comes to rest in the equilibrium position,
the spring is stretched an amount d1 as shown...
Two masses, M1 and M2 are attached to a mass-less string (see picture). When released from...
Two masses, M1 and M2 are attached to a mass-less string (see picture). When released from rest, the two masses move with acceleration a = 0.70 g in a clockwise direction. What is the ratio M1/M2 equal to?
Two copper wires have equal cross-sectional area and lengths of 2.0m and 0.50 m, respectively. What...
Two copper wires have equal cross-sectional area and lengths of 2.0m and 0.50 m, respectively. What is the ratio of the current through the shorter wire to that through the longer if both have the same applied voltage? Please explain. Thank you
Two ice skaters have masses m1 and m2 and are initially stationary. Their skates are identical....
Two ice skaters have masses m1 and m2 and are initially stationary. Their skates are identical. They push against one another, as in Figure 7.10, and move in opposite directions with different speeds. While they are pushing against each other, any kinetic frictional forces acting on their skates can be ignored. However, once the skaters separate, kinetic frictional forces eventually bring them to a halt. As they glide to a halt, the magnitudes of their accelerations are equal, and skater...
Two conducting wires of the same material are to have the same resistance. One wire is...
Two conducting wires of the same material are to have the same resistance. One wire is 22.0 m long and 0.45 mm in diameter. If the other wire is 0.27 mm in diameter, how long should it be?
Two conducting wires of the same material are to have the same resistance. One wire is...
Two conducting wires of the same material are to have the same resistance. One wire is 22.0 m long and 0.45 mm in diameter. If the other wire is 0.27 mm in diameter, how long should it be?
Problem 2.2-3 A steel wire and an aluminum alloy wire have equal lengths and support equal loads P (see figure). The moduli of elasticity for the steel and aluminum alloy are Es = 206 GPa and E,-76 GPa, respectively. Aluminum alloy Wire (a) If the wires have the same diameters, what is the ratio of the elongation of the aluminum alloy wire to the elongation of the steel wire? diameter of the aluminum alloy wire to the diameter of the...
6. a) Two different wires (materials 1 & 2) have lengths 1 and 2 and associated diameters di and If the resistance R of the wires is to be the same show the relationship between their diameters is given by dz =d, P2h VPL b) Using the above result, determine the diameter of a nichrome wire (p=96 x 10 - Qm) of length 4 mifit is to have the same resistance has a copper wire (p=1.72 x 10- m) whose...
You have two equal masses m1 and m2 and a
spring with a spring constant k. The mass m1 is
connected to the spring and placed on a frictionless horizontal
surface at the relaxed position of the spring. You then hang mass
m2, connected to mass m1 by a
massless cord, over a pulley at the edge of the horizontal surface.
When the entire system comes to rest in the equilibrium position,
the spring is stretched an amount d1 as shown...
