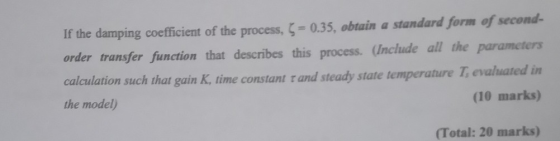

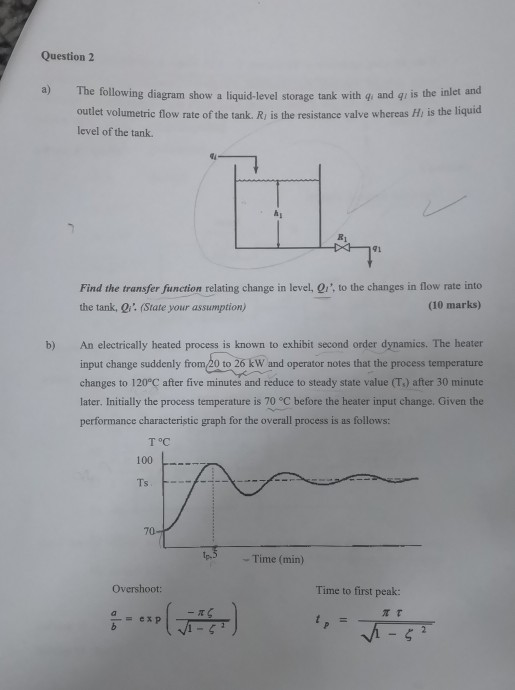

Question 2 a) The following diagram show a liquid-level storage tank with q, and qi is...
please answer all of part i really need them ASAP ...
The level ho of liquid in a vertical cylindrical tank as shown in Figure 4 is related to the inflow of liquid qi by the time domain equation d h dt where τ RLGL, the steady state gain of the system is G RL/pg and the tank capacitance, inlet ine ho outlet vave Tank Figure 4: Tank Level Process (a) You carry out some measurements on the tank and...
Question A1 A single tank process has first order dynamics. When the inlet flow rate is chosen as the input and the level as the output, the transfer function is as follows. 5 G(s) - H(s) 2. (S) S +1 91(t) h(t) *7 q:(0) q2(t) Fig. Q.Al schematic of the liquid level process (a) Determine the system constant t and steady state gain K. [6 marks] (b) For a unit step input q, (t) = 1(1), determine the time response...
Consider the liquid level control system given in the figure. The values with overbar denote steady state values. Draw a block diagram of the system assuming that the changes in the variables are small. Then derive the transfer function between the level of second tank h2 and the disturbance input qd 5. x(t) Lever Valve: q.-Kx Tank 1 O+q oa Tank 2
Consider the liquid level control system given in the figure. The values with overbar denote steady state values....
Considering the following liquid-level qo where the liquid is laminar flow and .0-steady-state flow rate (m'/s) . H-steady-state head (m) rate from the steady-state value (m/s) qi-small deviation of inflow . qo-small deviation ofoutflow rate from the steady-state value (m/s) h - small deviation of head from its steady-state value (m) . R-the resistance of the laminar flow in the output flow pipe · C-the capacitance of the tank Derive the differential equation model of the liquid-level-system with input as...
Question 2 2.1 Consider a stirred tank heater which is characterised by the following equation: z4 pCpE The tank has a constant liquid volume V, 50 litres and a constant volumetric flow rate of F 10 litres/minute. For liquid water, the other parameters are pCp 1 kcal/ litre.°C. Determine the process gain and time constant of the system. 2.1.1 2.1.2 Write down the transfer function of the process. (9) 2.1.3 Determine the time-domain output of this process to a step...
1. A process is known to be first order in the response of the tank temperature, TO, to changes in the inlet flowrate, gi(). The process is at steady state. T) is at 125 °C and gi) is at 50 gpm. An engineer makes a step change of 5 gpm in qi(0. After a period of time, TO) settles at 158 °C Plot the deviation variables for these two variables over time starting from the time of the change until...
Consider the liquid level system shown in Figure 1. At steady state, the inflow rate and outflow rate are both Ở and the flow rate between the tanks is zero. The heads at tank 1 and tank 2 are both H. At t = 0, the inflow rate is changed from 0 to + , where is the small change in the inflow rate. The resulting changes in the heads (h/ and h2) and flow rates are assumed to be...
QUESTION 2 The system shown below is a fermentation tank. In this, water (with dissolved glucose) enters the tank with a flow rate of q: [L/min) and a glucose concentration of c [mol/L). During reaction, glucose is converted at a rate of n = -VKc (where n is the moles of glucose converted per minute [mol/min), V is the volume of fluid in the tank (L'), and K is the reaction rate). The tank has a cross-sectional area of A....
A tank has an inlet flow of 20 LPM and steady height inside the tank is 1 m. Assuming the area of the tank as 1 sq. m, determine the valve resistance, if the outflow is a linear function of the tank height. If the transfer function is a first order, find the process gain and time constant. a) Determine the change in the tank level with a step change in input of 20%. b) Determine the change in the...
1. Consider a single tank for flow rate control and water level regulation. A single tank subject to the pump dynamics can be modeled as follows Tank dynamics: h.-le,-4M h, -e-eyh.), Pump dynamics: Q,-1(av,-0) Pump dynamics: Q,--(av,-Q.) Tank dynamics: where the parameters are defined as follows: h :water level c: valve resistance r: time constant S,: water tank area Q,: supplied flow rate a: voltage scaling factor ,: applied control input voltage (all the coefficients are positive) (A). Please apply...
