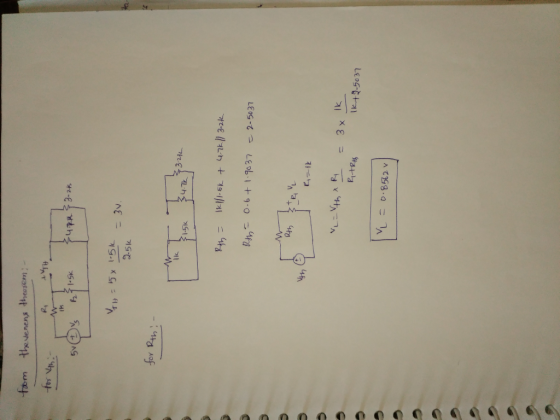

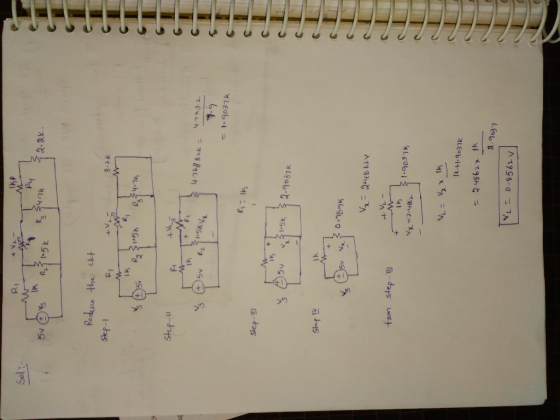

need help calculating VL using voltage division, thanks!

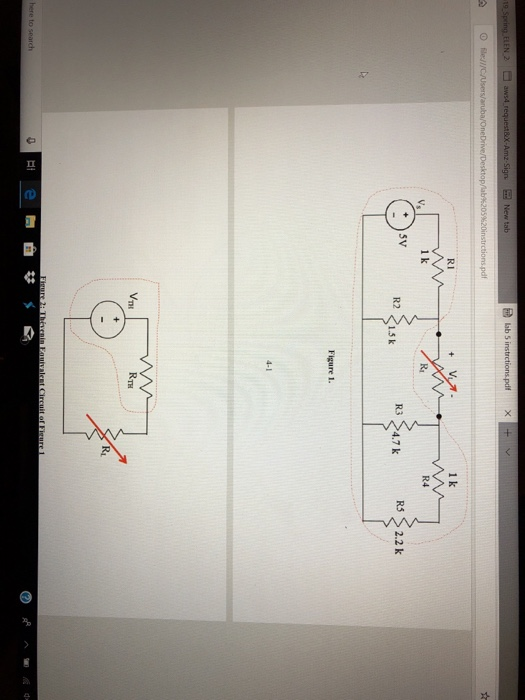

New tab tions pdf x ns pdf R1...
PLEASE HELP ME WITH THE CALCULATIONS, I NEED THE VOLTAGE THEORY AND VOLTAGE IDEAL CALCULATIONS. R1...
PLEASE HELP ME WITH THE CALCULATIONS, I NEED THE VOLTAGE THEORY
AND VOLTAGE IDEAL
CALCULATIONS.
R1 ww 100kn VOM DC 100kOhm (DMM,OSC) R2 10kn R3 R4 0.000 V1 5 V 100kn 1.0M R2 10k V(ideal) When R(VOM)= o0 2 V (theory) R3-100k R4 1MQ Reff R2*R(VOM) (R2+R(VOM)) 10*50(10+50) 8.33 k V(theory) V1 Reff (R1+Reff) V(ideal)=V1*R2/(R1+R2)|
Voltage and Current Division For the circuit shown, calculate V. V and Vs when V. =...
Voltage and Current Division For the circuit shown, calculate V. V and Vs when V. = 7 V, R; = 18 2. R2 = 66 2. R3 = 57 2. R4 = 37 and Rs = 332 Express your answer to two significant figures, with appropriate units View Available Hint(s) @? R-180 R2 = 660 + V + 12 0.597 V = 7 V R3 - 570 V 1.89 V R$ = 33 R = 37 Vs + - V4...
why is R1 and R3 in series and not parallel? please help with calculations in this question. thanks! 23) Which of the following statements are true about the circuit below? I. R2 and R4 are in...
why is R1 and R3 in series and not parallel?
please help with calculations in this question.
thanks!
23) Which of the following statements are true about the circuit below? I. R2 and R4 are in series. II. R2 and R4 are in parallel. IlI. R1 and R3 are in parallel. (D 150-Rv 24V 4,00-RJ D) L III A) I B) II C) III E-9 20) Which statements are true for the circuit shown in the figure below? The emf...
Need help with both please A charged particle (with q = 1.0 x 10-2 C) that...
Need help with both please
A charged particle (with q = 1.0 x 10-2 C) that is moving through a uniform magnetic field has a velocity (6.0 x 105 m/s) i + (4.0 x 105 m/s) k when it experiences a force F due to the magnetic field. If B = (-3.0 x 10-3T) i +(4.0 x 10-3T)j +(5.0 x 10-3 T) k , calculate the force, in N (in terms of unit vectors). Equation: F=qvxB F=-(3.0 N) i -(6.0...
Good morning, I need help with the following, they all relate to OP Amps. Thanks in advance. 2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circ...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
LC3 stack (factorial) I need help in writing factorial in Lc3 language by using stack.. ; Begin ...
LC3 stack (factorial) I need help in writing factorial in Lc3 language by using stack.. ; Begin reserved section: do not change ANYTHING in reserved section! .ORIG x3000 BR Main ; Parameter and result Param .FILL x0004 Result .BLKW 1 ; Constants Stack .FILL x4000 One .FILL #1 MinusOne .FILL #-1 ; End reserved section: do not change ANYTHING in reserved section! ;------------------------------------------------------------------------------- ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; ; int Factorial(int N) ; Returns N! (must be a recursive function) ; Factorial ;__________________...
os D New Tab X Prestige Group )WCenpage Other bookmarks Need Help?ReadIt ..142 points ser POPS...
os D New Tab X Prestige Group )WCenpage Other bookmarks Need Help?ReadIt ..142 points ser POPS 22 P025 M. My Notes Ask Your A rectangular coll cnsists of N - 160 cosely wraped turns and has dimersions a -0.400 m and b - o 30o m. The colilis hinged along the y axis, and its plane makes an angle 6-30.0P with the x axis (see figure below) (a) What is the magnitude of the torque exerted on the coil by...
Need help with all please!! Two charges are located along the x axis as shown below....
Need help with all please!!
Two charges are located along the x axis as shown below. Determine the location, X, where the net electric field due to these charges is zero. х *1 = 21 m + x2 = 29 m + 92=-25 uc 0 91 = +9.04C k 1911 k |92 Equation: Solve for a (x1-x)? (x2-x)? Please take the absolute values of the charges. Note that x1 = +5.0 m and x2 = + 8.0 m O At...
Need help with conclusion questions please 1. The objectives of this lab are (1) to determine...
Need help with conclusion questions please
1. The objectives of this lab are (1) to determine the actual (A) total resistance of three resistors connected in series and compare it with the experimental (E ) value of total resistance (2) to determine the actual (A) total resistance of three resistors connected in parallel and compare it with the experimental(E ) value of total resistance II. Apparatus(Equipment): Voltage source, ammeter that measures current , voltmeter that measures voltage. II. Procedure: Three...
PLEASE HELP ME WITH THE CALCULATIONS, I NEED THE VOLTAGE THEORY
AND VOLTAGE IDEAL
CALCULATIONS.
R1 ww 100kn VOM DC 100kOhm (DMM,OSC) R2 10kn R3 R4 0.000 V1 5 V 100kn 1.0M R2 10k V(ideal) When R(VOM)= o0 2 V (theory) R3-100k R4 1MQ Reff R2*R(VOM) (R2+R(VOM)) 10*50(10+50) 8.33 k V(theory) V1 Reff (R1+Reff) V(ideal)=V1*R2/(R1+R2)|
Voltage and Current Division For the circuit shown, calculate V. V and Vs when V. = 7 V, R; = 18 2. R2 = 66 2. R3 = 57 2. R4 = 37 and Rs = 332 Express your answer to two significant figures, with appropriate units View Available Hint(s) @? R-180 R2 = 660 + V + 12 0.597 V = 7 V R3 - 570 V 1.89 V R$ = 33 R = 37 Vs + - V4...
why is R1 and R3 in series and not parallel?
please help with calculations in this question.
thanks!
23) Which of the following statements are true about the circuit below? I. R2 and R4 are in series. II. R2 and R4 are in parallel. IlI. R1 and R3 are in parallel. (D 150-Rv 24V 4,00-RJ D) L III A) I B) II C) III E-9 20) Which statements are true for the circuit shown in the figure below? The emf...
Need help with both please
A charged particle (with q = 1.0 x 10-2 C) that is moving through a uniform magnetic field has a velocity (6.0 x 105 m/s) i + (4.0 x 105 m/s) k when it experiences a force F due to the magnetic field. If B = (-3.0 x 10-3T) i +(4.0 x 10-3T)j +(5.0 x 10-3 T) k , calculate the force, in N (in terms of unit vectors). Equation: F=qvxB F=-(3.0 N) i -(6.0...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
os D New Tab X Prestige Group )WCenpage Other bookmarks Need Help?ReadIt ..142 points ser POPS 22 P025 M. My Notes Ask Your A rectangular coll cnsists of N - 160 cosely wraped turns and has dimersions a -0.400 m and b - o 30o m. The colilis hinged along the y axis, and its plane makes an angle 6-30.0P with the x axis (see figure below) (a) What is the magnitude of the torque exerted on the coil by...
Need help with all please!!
Two charges are located along the x axis as shown below. Determine the location, X, where the net electric field due to these charges is zero. х *1 = 21 m + x2 = 29 m + 92=-25 uc 0 91 = +9.04C k 1911 k |92 Equation: Solve for a (x1-x)? (x2-x)? Please take the absolute values of the charges. Note that x1 = +5.0 m and x2 = + 8.0 m O At...
Need help with conclusion questions please
1. The objectives of this lab are (1) to determine the actual (A) total resistance of three resistors connected in series and compare it with the experimental (E ) value of total resistance (2) to determine the actual (A) total resistance of three resistors connected in parallel and compare it with the experimental(E ) value of total resistance II. Apparatus(Equipment): Voltage source, ammeter that measures current , voltmeter that measures voltage. II. Procedure: Three...
