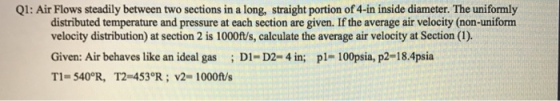

Air Flows steadily between two sections in a long, straight portion of 4-in inside diameter. The...

Question

Question

science chemistry

Answer 1

Answer #1

$\rho 1A1V1 = \rho 2A2V2$

m1 = m2

Assuming under these conditions that air behaves as ideal gas, from ideal gas equation

$\rho 2/\rho 1 = p2T1/p1T2$

V1 = P2T1V2 / P1T2 = 18.4 * 813 *1000 / (100 * 726) = 206.049 ft/s

Answer 2
