Infinite current sheet Each wire carrying .-000660000 .. the current i and the of wire per...

Question

Question

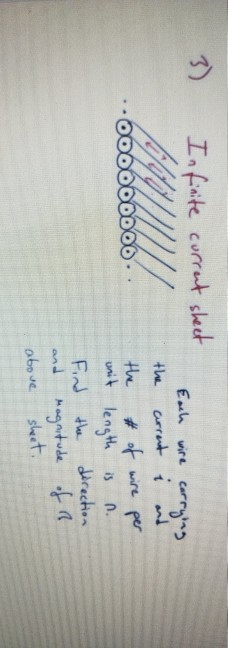

Infinite current sheet Each wire carrying .-000660000 .. the current i and the of wire per n. Find the direction and magnitud

science physics

Answer 1

Answer #1

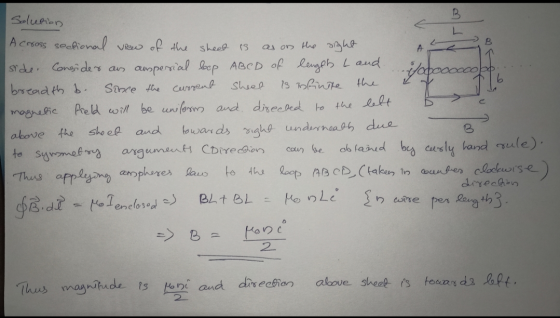

Solution

Add a comment

Answer 2
