In this formula "V" represents the Shear force at a particular section where shear stress is to be determined.Since only one shear force is acting in these diagram,Therefore shear force diagram is rectangle and it is constant.So the value of shear force used in the formula is 100 Newton.The thing which will change in this formula is "Q" which varies for every section and fibres and "t" which is width of the fibre.
So Answer for the question is
B) 100 N
Please give a "Thumbs up" if you like my answer.It motivates me to solve more questions and help more number of students.
Thank You.
Add Answer to:

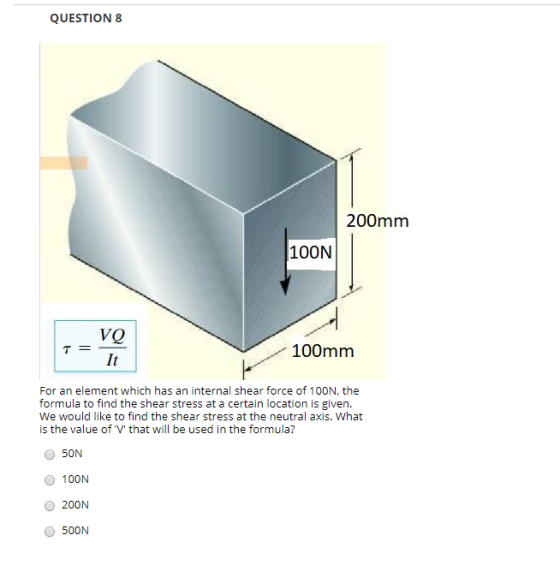

QUESTION 8 200mm 100N 100mm For an element which has an internal shear force of 100N,...
QUESTION 7 200mm 100N VO 100mm For an element which has an internal shear force of...
QUESTION 7 200mm 100N VO 100mm For an element which has an internal shear force of 100N, the formula to find the shear stress at a certain location is given. We would like to find the shear stress at the neutral axis. What is the value of 't' that will be used in the formula? 50mm 75mm 100mm 200mm
V d N.A W1 W: The beam cross section is subjected to an internal shear force,...
V d N.A W1 W: The beam cross section is subjected to an internal shear force, V. Determine the values of Q and t in the shear formula at the neutral axis and at point B of the cross section given W1 2 in W2 5 in di 6 in d2 1 in ti 1 in in3 QN.A Number =Number tN.A in Number in Number in
V d N.A W1 W: The beam cross section is subjected to an internal...
Ignore the pencil writing because its most likley wrong NAME: Exam 4 Engr225 Problem 1 (S0...
Ignore the pencil writing because its most likley wrong
NAME: Exam 4 Engr225 Problem 1 (S0 pts) Explain your work y The figure shows the cross-section of a beam. The beam is subjected to various forces and moments that cause internal loadings at the cross-section shown. Soo E Omm FEeo The figure shows the cross-section of interest and three differential elements D, E, and F. D is at the bottom and centered on the y-axis. E and F are on...
Question 8 O out of 12.5 p The internal loadings at a section of the beam...
Question 8 O out of 12.5 p The internal loadings at a section of the beam consist of a normal internal load of 91.2 kip, an internal shear force of 176.8 kip, an internal bending moment about the horizontal axis of 39.3 lb-in, and an internal bending moment about the vertical axis of 38.1 Ibin. If L = 11 in, what is the total shear stress (in ksi) at point B? Note: Your answer should include requested units and be...
Question 33 Indicate the assumptions valid for transverse shear stress. Shear force must act along an...
Question 33 Indicate the assumptions valid for transverse shear stress. Shear force must act along an axis of symmetry for the cross section Prismatic members Linear elastic behavior Short or flat cross section Homogeneous material Question 34 Transverse shear stress is assumed to vary across the width of the cross section, perpendicular to shear force. O True False Question 35 Indicate the situations where the shear formula is not valid? Choose all that apply. Tall or thin cross section Points...
Question 8 O out of 12.5 points The internal loadings at a section of the beam...
Question 8 O out of 12.5 points The internal loadings at a section of the beam consist of a normal internal load of 98.5 kip, an internal shear force of 173.5 kip, an internal bending moment about the horizontal axis of 37.7 lb-in, and an internal bending moment about the vertical axis of 31.8 Ibin. If L = 11.6 in, what is the total shear stress (in ksi) at point C? Note: Your answer should include requested units and be...
An I-beam has a flange width b = 200 mm , height h = 200 mm , web thickness tw = 8 mm , and flange thickness tf = 12 mm...
An I-beam has a flange width b = 200 mm , height h = 200 mm ,
web thickness tw = 8 mm , and flange thickness
tf = 12 mm . Use the following steps to calculate the
shear stress at a point 65 mm above the neutral axis.
Part A - Moment of inertia
The shear formula includes the moment of inertia of the whole
cross section, I, about the neutral axis. Calculate the moment of
inertia.
Express...
(10 points) The cross-section shown below has a moment of inertia I, 1829.60 in and a...
(10 points) The cross-section shown below has a moment of inertia I, 1829.60 in and a centroid y = 6.58 in as shown. Use shear force V 120 kip Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A TA 2 in *B B ΝΑ. 8 in 2 in 6.58 in D D 2 in 15 in (a) find the magnitude of the term Q at levels A, B, N.A., D. and E (b) find...
Question 4: Shear stress in a beam (40 marks) Consider the beam section illustrated in the figure to the right. The beam has a shearing force of V = 5 kN acting vertically through the shear center as...
Question 4: Shear stress in a beam (40 marks)
Consider the beam section illustrated in the figure to the
right. The beam has a shearing force of V = 5 kN acting vertically
through the shear center as illustrated. (a) Determine the shear
stress at the three points in the beam section labelled (i), (ii),
and (iii). [20 marks] (b) Produce a plot showing the direction and
distribution of shear stress across the beam section, noting the
shape of the...
3. (10 points) The cross-section shown below has a moment of inertia I, = 1829.60 in4...
3. (10 points) The cross-section shown below has a moment of inertia I, = 1829.60 in4 and a centroid y = 6.58 in as shown. Use shear force V = 120 kip. Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A A 2 in B B N.A. 8 in y = 6.58 in 2 in D D * 2 in E 15 in (a) find the magnitude of the term Q at levels A,...
QUESTION 7 200mm 100N VO 100mm For an element which has an internal shear force of 100N, the formula to find the shear stress at a certain location is given. We would like to find the shear stress at the neutral axis. What is the value of 't' that will be used in the formula? 50mm 75mm 100mm 200mm
V d N.A W1 W: The beam cross section is subjected to an internal shear force, V. Determine the values of Q and t in the shear formula at the neutral axis and at point B of the cross section given W1 2 in W2 5 in di 6 in d2 1 in ti 1 in in3 QN.A Number =Number tN.A in Number in Number in
V d N.A W1 W: The beam cross section is subjected to an internal...
Ignore the pencil writing because its most likley wrong
NAME: Exam 4 Engr225 Problem 1 (S0 pts) Explain your work y The figure shows the cross-section of a beam. The beam is subjected to various forces and moments that cause internal loadings at the cross-section shown. Soo E Omm FEeo The figure shows the cross-section of interest and three differential elements D, E, and F. D is at the bottom and centered on the y-axis. E and F are on...
Question 8 O out of 12.5 p The internal loadings at a section of the beam consist of a normal internal load of 91.2 kip, an internal shear force of 176.8 kip, an internal bending moment about the horizontal axis of 39.3 lb-in, and an internal bending moment about the vertical axis of 38.1 Ibin. If L = 11 in, what is the total shear stress (in ksi) at point B? Note: Your answer should include requested units and be...
Question 33 Indicate the assumptions valid for transverse shear stress. Shear force must act along an axis of symmetry for the cross section Prismatic members Linear elastic behavior Short or flat cross section Homogeneous material Question 34 Transverse shear stress is assumed to vary across the width of the cross section, perpendicular to shear force. O True False Question 35 Indicate the situations where the shear formula is not valid? Choose all that apply. Tall or thin cross section Points...
Question 8 O out of 12.5 points The internal loadings at a section of the beam consist of a normal internal load of 98.5 kip, an internal shear force of 173.5 kip, an internal bending moment about the horizontal axis of 37.7 lb-in, and an internal bending moment about the vertical axis of 31.8 Ibin. If L = 11.6 in, what is the total shear stress (in ksi) at point C? Note: Your answer should include requested units and be...
An I-beam has a flange width b = 200 mm , height h = 200 mm ,
web thickness tw = 8 mm , and flange thickness
tf = 12 mm . Use the following steps to calculate the
shear stress at a point 65 mm above the neutral axis.
Part A - Moment of inertia
The shear formula includes the moment of inertia of the whole
cross section, I, about the neutral axis. Calculate the moment of
inertia.
Express...
(10 points) The cross-section shown below has a moment of inertia I, 1829.60 in and a centroid y = 6.58 in as shown. Use shear force V 120 kip Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A TA 2 in *B B ΝΑ. 8 in 2 in 6.58 in D D 2 in 15 in (a) find the magnitude of the term Q at levels A, B, N.A., D. and E (b) find...
Question 4: Shear stress in a beam (40 marks)
Consider the beam section illustrated in the figure to the
right. The beam has a shearing force of V = 5 kN acting vertically
through the shear center as illustrated. (a) Determine the shear
stress at the three points in the beam section labelled (i), (ii),
and (iii). [20 marks] (b) Produce a plot showing the direction and
distribution of shear stress across the beam section, noting the
shape of the...
3. (10 points) The cross-section shown below has a moment of inertia I, = 1829.60 in4 and a centroid y = 6.58 in as shown. Use shear force V = 120 kip. Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A A 2 in B B N.A. 8 in y = 6.58 in 2 in D D * 2 in E 15 in (a) find the magnitude of the term Q at levels A,...
