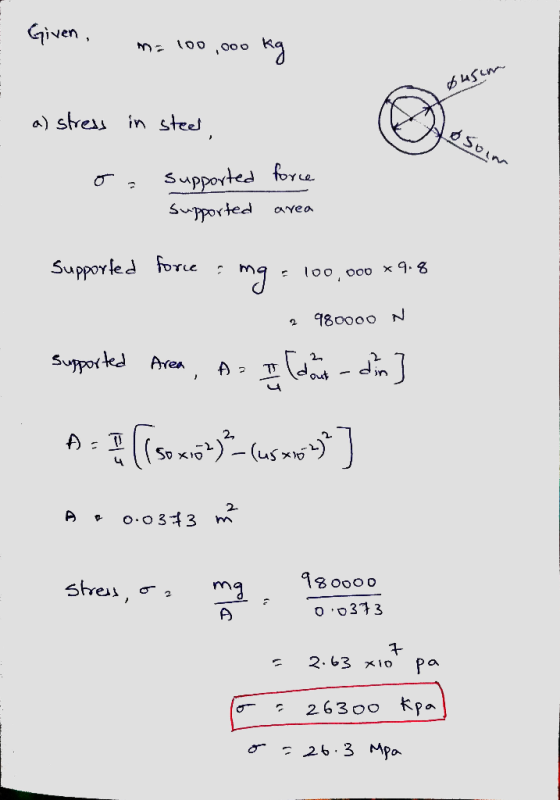

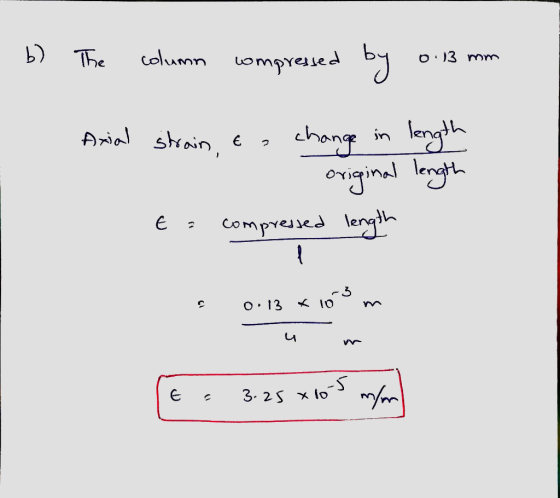

Homework Answers
Please comment for any doubts. Like if you find the answer helpful. Thank you.
Add Answer to:

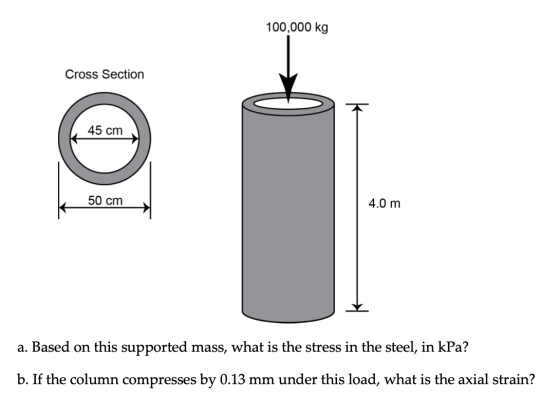

100,000 kg Cross Section 45 cm 50 cm 4.0 m a. Based on this supported mass,...
A5.2 m long simply supported wood beam carries a uniformly distributed load of 12.9 kN/m, as...
A5.2 m long simply supported wood beam carries a uniformly distributed load of 12.9 kN/m, as shown in Figure A. The cross-sectional dimensions of the beam as shown in Figure Bare b = 195 mm, d = 485 mm. yy = 81 mm, and yx = 167 mm. Section 3-a is located at x = 1.4 m from B. (a) At section a-a, determine the magnitude of the shear stress in the beam at point H. (b) At section a-3,...
P9.007 (GO Tutorial) A 6.8 m long simply supported wood beam carries a uniformly distributed load...
P9.007 (GO Tutorial) A 6.8 m long simply supported wood beam carries a uniformly distributed load of 10.6 kN/m, as shown in Figure A. The cross-sectional dimensions of the beam as shown in Figure B are b = 180 mm, d-460 mm, ун-92 mm, and VK-1 44 mm. Section a-a is located at x-1.3 m from B (a) At section a-a, determine the magnitude of the shear stress in the beam at point H. (b) At section a-a, determine the...
7. A solid sphere of copper ( 8940 kg/m') with a radius of 5.0 cm has...
7. A solid sphere of copper ( 8940 kg/m') with a radius of 5.0 cm has a mass of a) 45 9 kg b) 6.78 kg c) 25.7 kg d) 4.68 kg (10 pts) The pressure at the bottom of a 76-cm high column of mercury (p = 13,550 kg/m) is a) 0.010 kPa b) 101 kPa c) 10.1 kPa d) 0.101 kPa (10 pts) 9. Anaxial force of 20 kN acts on a 1.50-cm diameter rod. The axial stress...
a marble column of cross-sectional area 1.2 m^2 supports a mass of 25,000 kg. (a) what...
a marble column of cross-sectional area 1.2 m^2 supports a mass of 25,000 kg. (a) what is the stress within the column? (b) what is the strain. (c) by how much is the column shortened if it is 9.6 m high
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The m...
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The maximum value of the load P so that the normal stress in the beam does not exceed 25 MPa is most closely: 150 mm P 30 mm 4m 4m 120 mm A' B A 40 mm A. 3.1 kN B. 5.8 kN Oc. 2.5 kN D. 4.3 kN
A concentrated force P is applied in the middle of a...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
Question 1 (Total 100/3 Marks) Figure 1 (all units are mm) shows a simply supported beam of span ...
Question 1 (Total 100/3 Marks) Figure 1 (all units are mm) shows a simply supported beam of span 2500 mm with a 5 kN/m load. The cross-section of the beam is a composite section made from two steel plates attached to the top and bottom of a timber section. The top steel plate is 5 mm wide and 20 mm deep. The bottom steel plate is also 5 mm wide but 10 mm deep. The timber section is 50 mm...
Looking for Help on 10.19. r of solid circular cross section is 50 mm in diameter....
Looking for Help on 10.19.
r of solid circular cross section is 50 mm in diameter. The bar is pinned at each end and subject to axial compression. If the proportional limit of the material is 210 MPa and E 200 GPa, determine the minimum length for which Euler's formula is valid. Also, determine the value of the Euler buckling load if the column has this minimum length. Ans. 1.21 m, 412 kN 10.20. The column shown in Fig. 10-10...
L = 5.2 m p = 1040 Kg/m3 Common Data: [Young’s modulus, E=210 GN/m2] [Poisson’s ratio, ν=0.33]...
L = 5.2 m
p = 1040 Kg/m3
Common Data: [Young’s modulus, E=210
GN/m2] [Poisson’s ratio, ν=0.33] [Yield
stress σ0 = 210 MN/m2 ]
Figure 4 shows an arrangement and dimensions of cylinder-frustrum-cylinder storage tank. It is supported by 4 hollow steel columns of length L. One end of each column is welded to the tank and provide a clamped support. The other end is free support rest on the ground. Figure 5 shows the cross- section shape of the column...
L = 5.2 m p = 1040 Kg/m3 Common Data: [Young’s modulus, E=210 GN/m2] [Poisson’s ratio, ν=0.33]...
L = 5.2 m
p = 1040 Kg/m3
Common Data: [Young’s modulus, E=210
GN/m2] [Poisson’s ratio, ν=0.33] [Yield
stress σ0 = 210 MN/m2 ]
Figure 4 shows an arrangement and dimensions of cylinder-frustrum-cylinder storage tank. It is supported by 4 hollow steel columns of length L. One end of each column is welded to the tank and provide a clamped support. The other end is free support rest on the ground. Figure 5 shows the cross- section shape of the column...
A5.2 m long simply supported wood beam carries a uniformly distributed load of 12.9 kN/m, as shown in Figure A. The cross-sectional dimensions of the beam as shown in Figure Bare b = 195 mm, d = 485 mm. yy = 81 mm, and yx = 167 mm. Section 3-a is located at x = 1.4 m from B. (a) At section a-a, determine the magnitude of the shear stress in the beam at point H. (b) At section a-3,...
P9.007 (GO Tutorial) A 6.8 m long simply supported wood beam carries a uniformly distributed load of 10.6 kN/m, as shown in Figure A. The cross-sectional dimensions of the beam as shown in Figure B are b = 180 mm, d-460 mm, ун-92 mm, and VK-1 44 mm. Section a-a is located at x-1.3 m from B (a) At section a-a, determine the magnitude of the shear stress in the beam at point H. (b) At section a-a, determine the...
7. A solid sphere of copper ( 8940 kg/m') with a radius of 5.0 cm has a mass of a) 45 9 kg b) 6.78 kg c) 25.7 kg d) 4.68 kg (10 pts) The pressure at the bottom of a 76-cm high column of mercury (p = 13,550 kg/m) is a) 0.010 kPa b) 101 kPa c) 10.1 kPa d) 0.101 kPa (10 pts) 9. Anaxial force of 20 kN acts on a 1.50-cm diameter rod. The axial stress...
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The maximum value of the load P so that the normal stress in the beam does not exceed 25 MPa is most closely: 150 mm P 30 mm 4m 4m 120 mm A' B A 40 mm A. 3.1 kN B. 5.8 kN Oc. 2.5 kN D. 4.3 kN
A concentrated force P is applied in the middle of a...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
Question 1 (Total 100/3 Marks) Figure 1 (all units are mm) shows a simply supported beam of span 2500 mm with a 5 kN/m load. The cross-section of the beam is a composite section made from two steel plates attached to the top and bottom of a timber section. The top steel plate is 5 mm wide and 20 mm deep. The bottom steel plate is also 5 mm wide but 10 mm deep. The timber section is 50 mm...
Looking for Help on 10.19.
r of solid circular cross section is 50 mm in diameter. The bar is pinned at each end and subject to axial compression. If the proportional limit of the material is 210 MPa and E 200 GPa, determine the minimum length for which Euler's formula is valid. Also, determine the value of the Euler buckling load if the column has this minimum length. Ans. 1.21 m, 412 kN 10.20. The column shown in Fig. 10-10...
L = 5.2 m
p = 1040 Kg/m3
Common Data: [Young’s modulus, E=210
GN/m2] [Poisson’s ratio, ν=0.33] [Yield
stress σ0 = 210 MN/m2 ]
Figure 4 shows an arrangement and dimensions of cylinder-frustrum-cylinder storage tank. It is supported by 4 hollow steel columns of length L. One end of each column is welded to the tank and provide a clamped support. The other end is free support rest on the ground. Figure 5 shows the cross- section shape of the column...
L = 5.2 m
p = 1040 Kg/m3
Common Data: [Young’s modulus, E=210
GN/m2] [Poisson’s ratio, ν=0.33] [Yield
stress σ0 = 210 MN/m2 ]
Figure 4 shows an arrangement and dimensions of cylinder-frustrum-cylinder storage tank. It is supported by 4 hollow steel columns of length L. One end of each column is welded to the tank and provide a clamped support. The other end is free support rest on the ground. Figure 5 shows the cross- section shape of the column...
