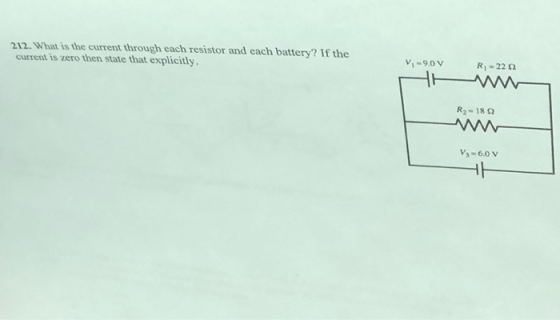

212. What is the current through each resistor and each battery? If the current is zero...

Question

Question

science physics

Answer 1

Answer #1

Using kVL in upper loop

(22 + 18) i1 + 18 i2 = 9

40 i1 + 18 i2 = 9....(i)

Using kVL in lower loop

18 i1 + 18 i2 = - 6...(ii)

From (i) and (ii)

i1 = 0.68 A

i2 = - 1.02 A

Current through R1 = i1 = 0.68 A

Current through R2 = ( i1 + i2) = 0.34 A

=======

Comment in case any doubt, will reply for sure.. Goodluck
