5. (10 pts) Consider a venturi with a throat-to-inlet ratio of 0.75 that is mounted on...
Consider a venturi with a small hole drilled in the side of the throat. This hole...
Consider a venturi with a small hole drilled in the side of the throat. This hole is connected via a tube to a closed reservoir. The purpose of the venturi is to create a vacuum in the reservoir when the venturi is placed in an airstream. (The vacuum is defined as the pressure difference below the outside ambient pressure.) The venturi has a throat-to-inlet area ratio of 0.85. Calculate the maximum vacuum obtainable in the reservoir when the venturi is...
B. Consider the flow of air through a convergent-divergent duct, with inlet, throat and exit areas...
B. Consider the flow of air through a convergent-divergent duct, with inlet, throat and exit areas are 6, 4 and 5 m2, respectively. The inlet and exit pressure are 1.01X105 N/m2 and 1X105 N/m2, respectively. Calculate the flow velocity at the inlet, throat and exit. (assume incompressible flow with standard sea-level density). Throat p. P. V
1. [20 pts] An indraft wind tunnel pulls air into an inlet, through a contraction, the...
1. [20 pts] An indraft wind tunnel pulls air into an inlet, through a contraction, the test section, and the diffuser, as shown below. The test section has a circular cross section and it has a diameter of 0.5 m. Assume the wind tunnel is at sea level and the temperature and pressure of the atmosphere are given by standard atmospheric conditions. (a) If the test section is designed to have a velocity of 200 m/s, determine the Mach number,...
Problem: The altimeter of a low-speed Piper Aztec reads 8000ft. A Pitot tube mounted on the...
Problem: The altimeter of a low-speed Piper Aztec reads 8000ft.
A Pitot tube mounted on the wingtip measures a pressure of 1650
lb/ft2 . If the outside air temperature is 500 deg R, What is the
true velocity of the airplane?, What is the equivalent
airspeed?

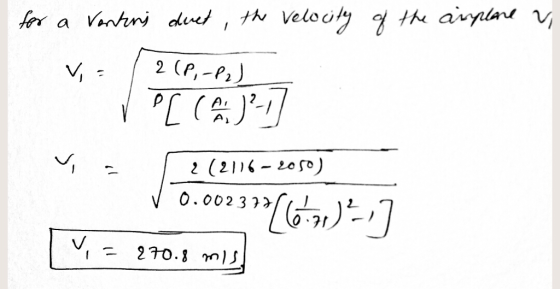

How did they get the pressure of 2.34e-3 for airspeed in step
4?
(4 Bookmarks) Show all steps: ON Chapter 4, Problem 21P = 1.83x10 E Comment Step 3 of 4 A Calculate the...
4. A subsonic wind tunnel with an area ratio of 1/5 is operating at standard sea...
4. A subsonic wind tunnel with an area ratio of 1/5 is operating at standard sea level conditions. a. If the test section speed is 40 ft/s, what is the pressure difference between the settling chamber and the test section? b. If the pressure in the settling chamber is 2000 lb/ft2, what is the pressure in the test section? c. The exit of the diffuser has an area that is 7 times the size of the test section. What is...
Q7. Consider the twin-jet airplane described as follow: wing area = 47 m2, aspect ratio =...
Q7. Consider the twin-jet airplane described as follow: wing area = 47 m2, aspect ratio = 6.5, Oswald efficiency factor = 0.87, weight = 103,047N, and zero-lift drag coefficient = 0.032. The airplane is equipped with two jet engines with 40,298 N of static thrust each at sea level. The thrust-specific fuel consumption is 1.0 N of fuel per newton of thrust per hour, the fuel capacity is 1900 gal, and the maximum gross weight is 136,960 N. Calculate the...
W2 U = 150 m/s W1 C1 Z Ol1 2. (40 pts) A very light business...
W2 U = 150 m/s W1 C1 Z Ol1 2. (40 pts) A very light business jet is in flight at Mach 0.85 at a cruise altitude of 13.5 km (static temperature 216.7 K and static pressure 15.26 kPa). It is powered by two turbofans, each with two independent spools and a thrust rating of 1800 lbf. The low-pressure spool consists of a single-stage fan and a two-stage axial compressor, all powered by a two-stage axial turbine. The high-pressure spool...
W2 U = 150 m/s W1 C1 Z Ol1 2. (40 pts) A very light business...
W2 U = 150 m/s W1 C1 Z Ol1 2. (40 pts) A very light business jet is in flight at Mach 0.85 at a cruise altitude of 13.5 km (static temperature 216.7 K and static pressure 15.26 kPa). It is powered by two turbofans, each with two independent spools and a thrust rating of 1800 lbf. The low-pressure spool consists of a single-stage fan and a two-stage axial compressor, all powered by a two-stage axial turbine. The high-pressure spool...
use a Reynolds number of 2.6x10^5 to find using graphs 2. Consider an NACA 23015 airfoil...
use a Reynolds number of 2.6x10^5 to find using
graphs
2. Consider an NACA 23015 airfoil (Fig 5.2a and 5.2b in text) with a chord of 0.64 m in an airstream 1000m above sea level conditions. The freestream velocity is 70 m/s. The lift per unit span is 1200 N/m. Calculate the angle of attack and the drag per unit span. (See example 4.1) CHAPTER S incompressible Flow over Finite Wings Section lift coefficient - Moment coefficient, -20 -32 -24...
1. (14 pts) Consider the following unbalanced gas-phase exothermic reaction, N2 + O2 = NO2 This...
1. (14 pts) Consider the following unbalanced gas-phase exothermic reaction, N2 + O2 = NO2 This is a reaction involved in the production of smog. The heat of formation of NO2 from the elements is A He = 33.18 kJ/mol. This is an endothermic process. The 4, Gof NO2 is 51.31 kJ/mol. a) Balance the reaction. b) Calculate the equilibrium constant at room temperature (300 K). c) If we assume that in our atmosphere the partial pressure of oxygen is...
Consider a venturi with a small hole drilled in the side of the throat. This hole is connected via a tube to a closed reservoir. The purpose of the venturi is to create a vacuum in the reservoir when the venturi is placed in an airstream. (The vacuum is defined as the pressure difference below the outside ambient pressure.) The venturi has a throat-to-inlet area ratio of 0.85. Calculate the maximum vacuum obtainable in the reservoir when the venturi is...
B. Consider the flow of air through a convergent-divergent duct, with inlet, throat and exit areas are 6, 4 and 5 m2, respectively. The inlet and exit pressure are 1.01X105 N/m2 and 1X105 N/m2, respectively. Calculate the flow velocity at the inlet, throat and exit. (assume incompressible flow with standard sea-level density). Throat p. P. V
1. [20 pts] An indraft wind tunnel pulls air into an inlet, through a contraction, the test section, and the diffuser, as shown below. The test section has a circular cross section and it has a diameter of 0.5 m. Assume the wind tunnel is at sea level and the temperature and pressure of the atmosphere are given by standard atmospheric conditions. (a) If the test section is designed to have a velocity of 200 m/s, determine the Mach number,...
Problem: The altimeter of a low-speed Piper Aztec reads 8000ft.
A Pitot tube mounted on the wingtip measures a pressure of 1650
lb/ft2 . If the outside air temperature is 500 deg R, What is the
true velocity of the airplane?, What is the equivalent
airspeed?
How did they get the pressure of 2.34e-3 for airspeed in step
4?
(4 Bookmarks) Show all steps: ON Chapter 4, Problem 21P = 1.83x10 E Comment Step 3 of 4 A Calculate the...
Q7. Consider the twin-jet airplane described as follow: wing area = 47 m2, aspect ratio = 6.5, Oswald efficiency factor = 0.87, weight = 103,047N, and zero-lift drag coefficient = 0.032. The airplane is equipped with two jet engines with 40,298 N of static thrust each at sea level. The thrust-specific fuel consumption is 1.0 N of fuel per newton of thrust per hour, the fuel capacity is 1900 gal, and the maximum gross weight is 136,960 N. Calculate the...
W2 U = 150 m/s W1 C1 Z Ol1 2. (40 pts) A very light business jet is in flight at Mach 0.85 at a cruise altitude of 13.5 km (static temperature 216.7 K and static pressure 15.26 kPa). It is powered by two turbofans, each with two independent spools and a thrust rating of 1800 lbf. The low-pressure spool consists of a single-stage fan and a two-stage axial compressor, all powered by a two-stage axial turbine. The high-pressure spool...
W2 U = 150 m/s W1 C1 Z Ol1 2. (40 pts) A very light business jet is in flight at Mach 0.85 at a cruise altitude of 13.5 km (static temperature 216.7 K and static pressure 15.26 kPa). It is powered by two turbofans, each with two independent spools and a thrust rating of 1800 lbf. The low-pressure spool consists of a single-stage fan and a two-stage axial compressor, all powered by a two-stage axial turbine. The high-pressure spool...
use a Reynolds number of 2.6x10^5 to find using
graphs
2. Consider an NACA 23015 airfoil (Fig 5.2a and 5.2b in text) with a chord of 0.64 m in an airstream 1000m above sea level conditions. The freestream velocity is 70 m/s. The lift per unit span is 1200 N/m. Calculate the angle of attack and the drag per unit span. (See example 4.1) CHAPTER S incompressible Flow over Finite Wings Section lift coefficient - Moment coefficient, -20 -32 -24...
1. (14 pts) Consider the following unbalanced gas-phase exothermic reaction, N2 + O2 = NO2 This is a reaction involved in the production of smog. The heat of formation of NO2 from the elements is A He = 33.18 kJ/mol. This is an endothermic process. The 4, Gof NO2 is 51.31 kJ/mol. a) Balance the reaction. b) Calculate the equilibrium constant at room temperature (300 K). c) If we assume that in our atmosphere the partial pressure of oxygen is...
