Calculate the reactions of the beam in Figure 2. Draw a bending moment diagram (BMD) and...

Question

Question

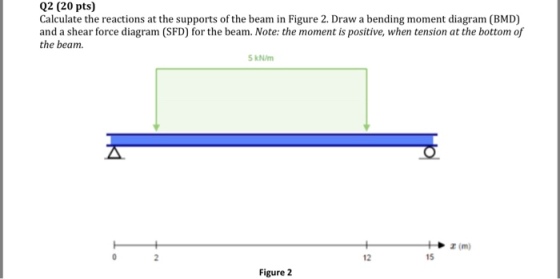

Calculate the reactions of the beam in Figure 2. Draw a bending moment diagram (BMD) and a shear force diagram (SFD) for the beam.

engineering Mechanical-Engineering

Answer 1

Answer #1

Ra--RB- 5x1D =50 A- Lo m るm 23 La 50-23.333 - Ras 26. 663 kN s. E betu een A and c-RA1. t 26,667 KN e2n Sp between Dand 8 23-

Answer 2

Similar Homework Help Questions

Determine the reactions and draw the shear force and bending moment diagrams (SFD & BMD). Find...

Determine the reactions and draw the shear force and bending moment diagrams (SFD & BMD). Find the maximum shear force and bending moment along the horizontal portion of the beam amd calculate the maximum traverse shear stress amd maximum normal stress. Draw the normal and shear stress distributions along the cross section. Fy = 760 lbs Fx = 830 lbs ト·25%) Decet reoconsand drd he Shes fore ond beg men Sheer Shes, ds+rivntions alonShe cross sec on Sho Stress Hress
Problem 3: Draw the shear force diagram (SFD) and bending moment diagram (BMD) for the 3-in...

Problem 3: Draw the shear force diagram (SFD) and bending moment diagram (BMD) for the 3-in in diameter shaft and determine the absolute maximum bending stress in the shaft. The shaft is supported by a thrust bearding at A and a journal bearing at B. 3600 lb 1800 lb B 3ft 3ft 3ft
Mech Su Date.. ID. Student Name.. Question 1: Calculate the shear force and bending moment for...

Mech Su Date.. ID. Student Name.. Question 1: Calculate the shear force and bending moment for the beam subjected to the loads shown in the figure, then draw the shear force diagram (SFD) and bending moment diagram (BMD) as 50 kN 50 kN 25 kN/m A 4m 5 m 5 m

Simply supported beam is loaded as shown in figure. (a) Compute support reactions. (3) (b) Draw...

Simply supported beam is loaded as shown in figure. (a) Compute support reactions. (3) (b) Draw Shear Force Diagram (SFD) to the scale. (c) Locate the point where shear force is zero. Do not use properties of similar triangles. (3) (d) Compute bending moment at all important points including point where shear force is zero. (4) (e) Draw Bending Moment Diagram (BMD) to the scale. (4) (1) Show deflected shape of the beam. Indicate which part is sagging and which...
For the beam shown in the given figure:

For the beam shown in the given figure: (a) Express the internal shear (V) and moment (M) in the beam as a function of x. (b) Draw the shear force diagram (SFD) and bending moment diagram (BMD). (c) If the area moment of inertia (I) of the beam's cross section about the neutral axis is 301.3 (10-6)m4, determine the absolute maximum bending stress (σmax) in the beam.
For the following diagram, draw the shear and bending moment diagrams for the beam. Include the shear force and bending moment equations.

For the following diagram, draw the shear and bending moment diagrams for the beam. Include the shear force and bending moment equations.

4. Use the Beam Loading Diagrams. Draw the Shear Diagram and Bending Moment Diagram. Indicate the...

4. Use the Beam Loading Diagrams. Draw the Shear Diagram and Bending Moment Diagram. Indicate the factored Reactions, the maximum Mf (kNm) and the maximum Vf (kN) wf-15kN/m 10m Rf= Rf- /2 Vf 13 Shear Diagram (kN) Mf 13 Bending Moment Diagram (kNm)
Please draw the SFD and BMD Determine the shear force and moment at points C and D. Also, Draw the SFD & BMD 5...

Please draw the SFD and BMD Determine the shear force and moment at points C and D. Also, Draw the SFD & BMD 500 lb 200 lb 300 lb 114.29 lb 885.71 lb ft-4 ft 2 ft
Draw the shear force and bending moment diagram for the beam shown in Figure P2 1 below, labeling key points of each diagram with numerical values.

Draw the shear force and bending moment diagram for the beam shown in Figure P2 below, labeling key points of each diagram with numerical values.
