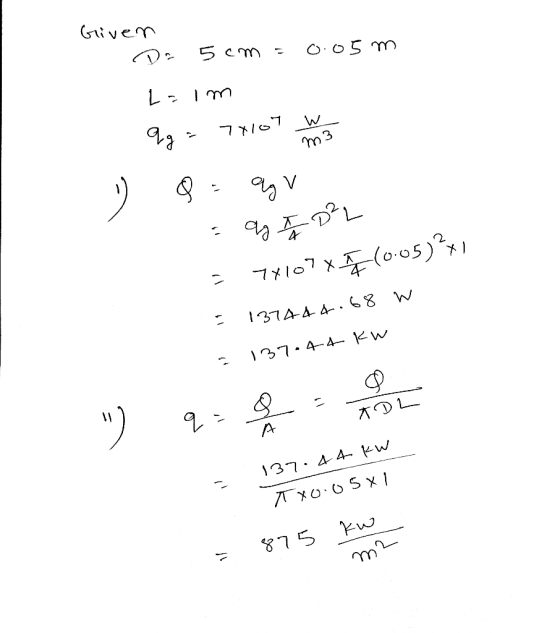

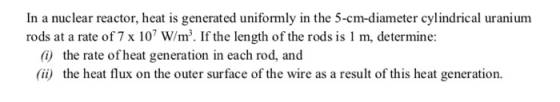

In a nuclear reactor, heat is generated uniformly in the 5-cm-diameter cylindrical uranium rods at a...
A cylindrical fuel rod 50mm in diameter has a uniform internal heat generation of ??1̇ =...
A cylindrical fuel rod 50mm in diameter has a uniform internal heat generation of ??1̇ = 7*107 W/m3 . Under steady-state conditions, the temperature distribution is ??(??) = ?? + ????2, where T is in Celsius, ?? is in meters, ?? = 750°C, and ?? = -5.40*105 °C/m2 . The fuel rod properties are k=25 W/(m K), density= 1100 kg/m3 , and cp = 750 J/(kg K). (a) Determine the heat transferred (in Watts) at r=0 (centerline) and r=ro (outer...
A long cylindrical rod of diameter 220 mm with thermal conductivity 0.5 W/m-K expe riences uniform...
A long cylindrical rod of diameter 220 mm with thermal conductivity 0.5 W/m-K expe riences uniform volumetric heat generation of 25,000 W/m3. The rod is encapsulated by a circular sleeve having 7 W/m K. The outer surface of the sleeve is exposed to cross flow of air at 25°C with a convection coefficient of 25 W/m2-K. Find the temperature at the interface between the rod and sleeve, and on the outer surface. an outer diameter of 410 mm and thermal...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fi...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fission in the liquid results in a uniform internal heat generation of à W/m3. The pipe wall also has a heater on it that can provide a uniform surface heating rate of q" W/m2. The radioactive liquid has a specific heat capacity of Cp J/kg-K, a mass flowrate of m kg/s, and an inlet temperature of Tm, Conduction in the fluid in...
4/10 (20 pts J has a periemperaturo Tis inner surface such that heat a nuclear reactor...
4/10 (20 pts J has a periemperaturo Tis inner surface such that heat a nuclear reactor with constant thermal nuclear 2. The shielding wall of er surface (x)while ts inner surface (xo) in maintalned at i generated within the wall according to the relationstip constant temperature Ti. as s as shown below The wall where 4o is the heat generation inner surface gamma-ray flux and a is a constant. Starting with hea equation, develop an expression for the temperature distopriate...
The shield of a nuclear reactor can be idealized as a slab with a face area...
The shield of a nuclear reactor can be idealized as a slab with a face area of 6 ft2 and a thermal conductivity k = 2 Btu / hr*ft*°F. Heat is generated in the shield at a steady rate S = S0 exp(-bx) [Btu / hr*ft3 ] where x = 0 denotes the inner surface close to the nuclear reactor and the outer surface is at x = L. The temperature is maintained at 300 °F at the inner surface...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg.K, and p=400 kg/m3. (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m3. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m2K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q'''...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg.K, and p=400 kg/m3. (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m?. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m².K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q'"...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg-K, and p=400 kg/m² (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m2K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q"'...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg-K, and p=400 kg/m² (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m2K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q"'...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg.K, and p=400 kg/m3. (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m?. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m².K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q'"...
A long cylindrical rod of diameter 220 mm with thermal conductivity 0.5 W/m-K expe riences uniform volumetric heat generation of 25,000 W/m3. The rod is encapsulated by a circular sleeve having 7 W/m K. The outer surface of the sleeve is exposed to cross flow of air at 25°C with a convection coefficient of 25 W/m2-K. Find the temperature at the interface between the rod and sleeve, and on the outer surface. an outer diameter of 410 mm and thermal...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fission in the liquid results in a uniform internal heat generation of à W/m3. The pipe wall also has a heater on it that can provide a uniform surface heating rate of q" W/m2. The radioactive liquid has a specific heat capacity of Cp J/kg-K, a mass flowrate of m kg/s, and an inlet temperature of Tm, Conduction in the fluid in...
4/10 (20 pts J has a periemperaturo Tis inner surface such that heat a nuclear reactor with constant thermal nuclear 2. The shielding wall of er surface (x)while ts inner surface (xo) in maintalned at i generated within the wall according to the relationstip constant temperature Ti. as s as shown below The wall where 4o is the heat generation inner surface gamma-ray flux and a is a constant. Starting with hea equation, develop an expression for the temperature distopriate...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg.K, and p=400 kg/m3. (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m3. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m2K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q'''...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg.K, and p=400 kg/m3. (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m?. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m².K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q'"...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg-K, and p=400 kg/m² (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m2K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q"'...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg-K, and p=400 kg/m² (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m2K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q"'...
2. A nuclear fuel rod with diameter of D=40 mm and length L=1m, has properties of k=1 W/mK, c=1600J/kg.K, and p=400 kg/m3. (a)Heat is generated uniformly in the rod with q'"' = 2 x 106 W/m?. The rod is first cooled in oil with constant temperature To= 400 K and average heat transfer coefficient h=50 W/m².K. Under steady state, determine the surface temperature of the rod Ts. (10 pts) (b)Now the heat generation in the rod is stopped, where q'"...
