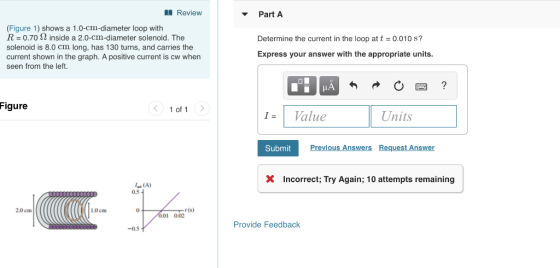

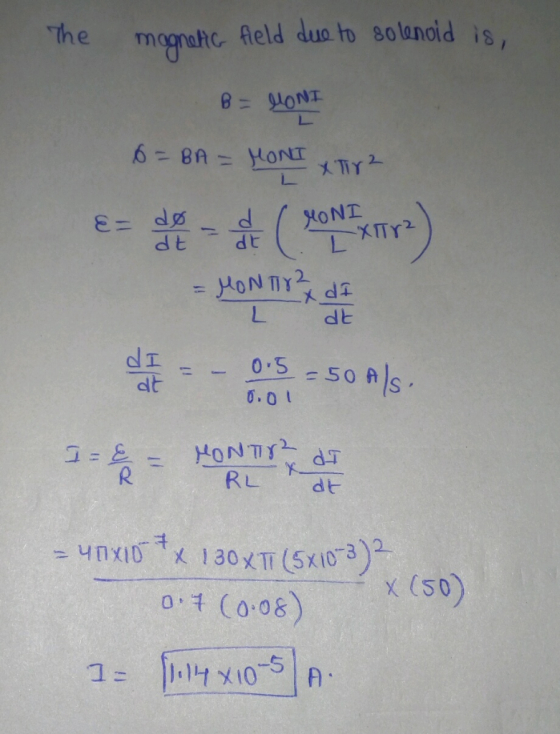

Review Part A (Figure 1) shows a 1.0-cm-diameter loop with R 0.70 2 inside a 2.0-cm-diameter...
The figure shows a five-turn, 1.0-cm-diameter coil with R = 0.16 ohms inside a 2.0-cm-diameter solenoid....
The figure shows a five-turn, 1.0-cm-diameter coil with R = 0.16
ohms inside a 2.0-cm-diameter solenoid. The solenoid is 7.7cm long,
has 110 turns, and carries the current shown in the graph. A
positive current is cw when seen from the left.
Determine the current in the coil at t = 0.010s.
The figure shows a five-turn, 1.0-cm-diameter coil with R = 0.16 ohms inside a 2.0-cm-diameter solenoid. The solenoid is 7.7cm long, has 110 turns, and carries the current...
A 4.0-cm-diameter loop with resistance 0.11 Ω around a 2.0-cm-diameter solenoid. (Figure 1) The solenoid is...
A 4.0-cm-diameter loop with resistance 0.11 Ω around a
2.0-cm-diameter solenoid. (Figure 1) The solenoid is 10 cm long,
has 100 turns, and carries the current shown in the graph (Figure
2). A positive current is cw when seen from the left
Find the current in the loop at t = 1.5 s.
Express your answer to two significant figures and include the
appropriate units.
Isol / OOOOOOOOOOC DO 4.0 cm 2.0 cm
A 4.0-cm-diameter loop with resistance 0.17 12 around a 2.0-crn-diameter solenoid. (Figure 1) The solenoid is...
A 4.0-cm-diameter loop with resistance 0.17 12 around a 2.0-crn-diameter solenoid. (Figure 1) The solenoid is 11 cmn long, has 100 turns, and carries the current shown in the graph (Figure 2). A positive current is cw when seen from the left. Part A Find the current in the loop at t = 0.5 8. Express your answer as an integer and include the appropriate units. I(0.5) = OA Previous Answers ✓ Correct Part B Find the current in the...
2. Shown at right is a 4.0 cm-diameter loop with resistance 0.10 Ω around a 2.0-cm-diameter solenoid. The solenoid is 10 cm long, has 100 turns, and carries the current shown in the graph. A positive...
2. Shown at right is a 4.0 cm-diameter loop with resistance 0.10 Ω around a 2.0-cm-diameter solenoid. The solenoid is 10 cm long, has 100 turns, and carries the current shown in the graph. A positive current is CW when seen from the left. Find the current in the loop at Isol (A) 20 sol 2.0 cm 4.0 em 0 t (s) 1 12 3 20 (a) t 0.5 s (b) t 1.5 s (c) t 2.5 s
2. Shown...
Problem 33.37 A 4.0-cm-diameter loop with resistance 0.17 S2 around a 2.0-cm- diameter solenoid. The solenoid...
Problem 33.37 A 4.0-cm-diameter loop with resistance 0.17 S2 around a 2.0-cm- diameter solenoid. The solenoid is 15 cm long, has 100 turns, and carries the current shown in the graph. A positive current is cw when seen from the left. Figure 1 Figure 1 of 1 (A) 20 r (s) 4,0 cm 2.0 cm 0 20 Part A Find the current in the loop at t 0.5s. Express your answer as an integer and include the appropriate units. I...
Problem 30.46 < 13 of 13 > A 4.0-cm-diameter loop with resistance 0.10 S2 around a...
Problem 30.46 < 13 of 13 > A 4.0-cm-diameter loop with resistance 0.10 S2 around a 2.0-cm-diameter solenoid. The solenoid is 15 cm long, Io hoooooooooodbo 4.0 cm 2.0 cm has 100 turns, and carries the current shown in the graph Isol (A) 20 - Tito It() Problem 30.46 ③ 13 of 13 - Part A Find the current in the loop at t = 0.5 s. Express your answer as an integer and include the appropriate units. I(0.5) =...
C) Find the current in the loop at t = 2.5s. Express your answer as an...
C) Find the current in the loop at t = 2.5s.
Express your answer as an integer and include the appropriate
units.
PartA A 40-cm-diameter loop with resistance 0.19 Ω around a 2.0-cm-diameter solenoid. The solenoid is 14 cm long, has 100 turns, and carries the current shown in the graph. A positive current is cw when seen from the left. Figure 1) Find the current in the loop at t 0.5s. Express your answer as an integer and include...
show ALL steps to get answer. A 2.0-cm-diameter loop of wire with a resistance of 0.015 0 is placed in the center o...
show ALL steps to get answer.
A 2.0-cm-diameter loop of wire with a resistance of 0.015 0 is placed in the center of a solenoid. The solenoid is 4.0 cm in diameter, 20 cm long, and wrapped with 1000 turns of wire. The current in the solenoid is cw when seen from the left. If the current decreases from 5 A to 3 A in 4 s, what is magnitude of the induced current in the small loop? 20 cm,...
150 (A) 022202028 --CC- for 2.0 cm 1.0 cm 0.01 It(s) 0.02 00000000000000 A 2.00 cm...
150 (A) 022202028 --CC- for 2.0 cm 1.0 cm 0.01 It(s) 0.02 00000000000000 A 2.00 cm diameter, 8.00 cm long solenoid has 109 turns and has a 1.00 cm diameter loop inside it. The loop has a resistance of 0.700 Q. What is the current in the loop at 0.0170 s? The the maximum and the minimum current in the graph have the same magnitude which is 0.900 A.
Need Help with Solenoid problem,please!
The figure showsa five-turn, 1.0-cm-diameter coil with R= 0.20ohm inside a 2.0-cm-diameter solenoid. The solenoid is 6.8 cm long, has 120 turns, and carries the current shown inthe graph. A positive current is cw when seen from the left.Determine the current in the coil at t= 0.010s.
The figure shows a five-turn, 1.0-cm-diameter coil with R = 0.16
ohms inside a 2.0-cm-diameter solenoid. The solenoid is 7.7cm long,
has 110 turns, and carries the current shown in the graph. A
positive current is cw when seen from the left.
Determine the current in the coil at t = 0.010s.
The figure shows a five-turn, 1.0-cm-diameter coil with R = 0.16 ohms inside a 2.0-cm-diameter solenoid. The solenoid is 7.7cm long, has 110 turns, and carries the current...
A 4.0-cm-diameter loop with resistance 0.11 Ω around a
2.0-cm-diameter solenoid. (Figure 1) The solenoid is 10 cm long,
has 100 turns, and carries the current shown in the graph (Figure
2). A positive current is cw when seen from the left
Find the current in the loop at t = 1.5 s.
Express your answer to two significant figures and include the
appropriate units.
Isol / OOOOOOOOOOC DO 4.0 cm 2.0 cm
A 4.0-cm-diameter loop with resistance 0.17 12 around a 2.0-crn-diameter solenoid. (Figure 1) The solenoid is 11 cmn long, has 100 turns, and carries the current shown in the graph (Figure 2). A positive current is cw when seen from the left. Part A Find the current in the loop at t = 0.5 8. Express your answer as an integer and include the appropriate units. I(0.5) = OA Previous Answers ✓ Correct Part B Find the current in the...
2. Shown at right is a 4.0 cm-diameter loop with resistance 0.10 Ω around a 2.0-cm-diameter solenoid. The solenoid is 10 cm long, has 100 turns, and carries the current shown in the graph. A positive current is CW when seen from the left. Find the current in the loop at Isol (A) 20 sol 2.0 cm 4.0 em 0 t (s) 1 12 3 20 (a) t 0.5 s (b) t 1.5 s (c) t 2.5 s
2. Shown...
Problem 33.37 A 4.0-cm-diameter loop with resistance 0.17 S2 around a 2.0-cm- diameter solenoid. The solenoid is 15 cm long, has 100 turns, and carries the current shown in the graph. A positive current is cw when seen from the left. Figure 1 Figure 1 of 1 (A) 20 r (s) 4,0 cm 2.0 cm 0 20 Part A Find the current in the loop at t 0.5s. Express your answer as an integer and include the appropriate units. I...
Problem 30.46 < 13 of 13 > A 4.0-cm-diameter loop with resistance 0.10 S2 around a 2.0-cm-diameter solenoid. The solenoid is 15 cm long, Io hoooooooooodbo 4.0 cm 2.0 cm has 100 turns, and carries the current shown in the graph Isol (A) 20 - Tito It() Problem 30.46 ③ 13 of 13 - Part A Find the current in the loop at t = 0.5 s. Express your answer as an integer and include the appropriate units. I(0.5) =...
C) Find the current in the loop at t = 2.5s.
Express your answer as an integer and include the appropriate
units.
PartA A 40-cm-diameter loop with resistance 0.19 Ω around a 2.0-cm-diameter solenoid. The solenoid is 14 cm long, has 100 turns, and carries the current shown in the graph. A positive current is cw when seen from the left. Figure 1) Find the current in the loop at t 0.5s. Express your answer as an integer and include...
show ALL steps to get answer.
A 2.0-cm-diameter loop of wire with a resistance of 0.015 0 is placed in the center of a solenoid. The solenoid is 4.0 cm in diameter, 20 cm long, and wrapped with 1000 turns of wire. The current in the solenoid is cw when seen from the left. If the current decreases from 5 A to 3 A in 4 s, what is magnitude of the induced current in the small loop? 20 cm,...
150 (A) 022202028 --CC- for 2.0 cm 1.0 cm 0.01 It(s) 0.02 00000000000000 A 2.00 cm diameter, 8.00 cm long solenoid has 109 turns and has a 1.00 cm diameter loop inside it. The loop has a resistance of 0.700 Q. What is the current in the loop at 0.0170 s? The the maximum and the minimum current in the graph have the same magnitude which is 0.900 A.
The figure showsa five-turn, 1.0-cm-diameter coil with R= 0.20ohm inside a 2.0-cm-diameter solenoid. The solenoid is 6.8 cm long, has 120 turns, and carries the current shown inthe graph. A positive current is cw when seen from the left.Determine the current in the coil at t= 0.010s.
