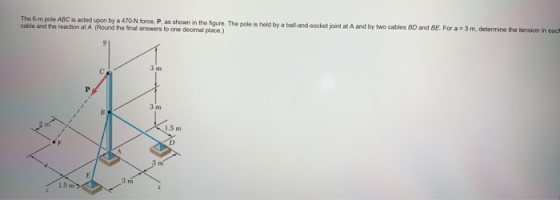

The 6-m pole ABC is acted upon by cable and the reaction at A. (Round the...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

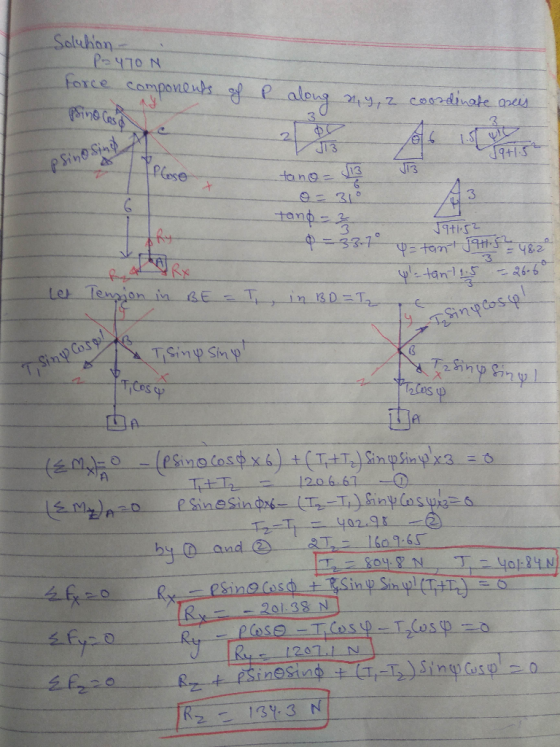

luhan Pose tang133 3 3 Rx 干tos Cos 120LIN neStn

Answer 2

Similar Homework Help Questions

1. The 6-m pole ABC is acted upon by a force Pos shown. The pole is...

1. The 6-m pole ABC is acted upon by a force Pos shown. The pole is held by a ball-and-socket joint at A and by two cables BD and BE. If the tension in cable BE is 158 N and if a : 3m, determine the reaction at A along the y-axis. 3 m P 3 m 15 1.5 m 2. | The 6-m pole ABC is acted upon by a force P as shown. The pole is held by...
The 6-m pole ABC is acted upon by a 455-N force as shown

Instead of solving for a = 5 can you please solve for a = 4The 6-m pole ABC is acted upon by a 455-N force as shown. The pole is held by a ball-and-socket joint at A and by two cables BD and BE. For a = 5 m, determine the tension in each cable and the reaction at A.
equilibruim equation, not vector A 12-m pole supports a horizontal cable CD and is held by...

equilibruim equation, not vector A 12-m pole supports a horizontal cable CD and is held by a ball and socket at A and two cables BE and BF. Knowing that the ten- sion in cable CD is 14 kN and coming that CD o parallel to the *Axis (0 =159) determine the tension in cables BE and BF and the reaction at A. 12 m 8 m B. z 7.5 m

Question 2: (15 Point) The boom ABC is held in place by two cables and a...

Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted...

Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted upon by the 820-lb force shown in the figure. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. (Round the final answer to one decimal place.) eBook 6 ft Hint E Print 6 ft References D B 7 ft 6 ft C 4 ft w The tension in cable BD is The tension in cable BE is The...
1. A 5 kg ball traveling to the right at 7 m/s collides with a 3...

1. A 5 kg ball traveling to the right at 7 m/s collides with a 3 kg ball at rest. After the collision, the 3 kg ball is traveling to the right at 8.75 m/s. What is the velocity of the ball on the left after the collision? 2. A 100-kg box on the right and a 45-kg box on the left are tied together by a horizontal cable. The 100-kg box is acted upon by an external force of...

1. A pole is held vertically by attaching wires at a height of 13.4 m above...

1. A pole is held vertically by attaching wires at a height of 13.4 m above the ground. The other end of each wire is anchored in the ground at a distance of 9.54 m from the base of the pole. The pole makes a right angle with the ground. What is the length of each wire? 2. A bug crawls 2.25 m along the base of a wall. Upon reaching a corner, the bug's direction of travel changes from...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...

A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
