Construct a DFA for each of the following C language constructs, and then build the corresponding...
Construct a DFA for each of the following C language constructs,
and then build the corresponding classifer, transition and token
type tables for the table-driven implementation for each of
them.

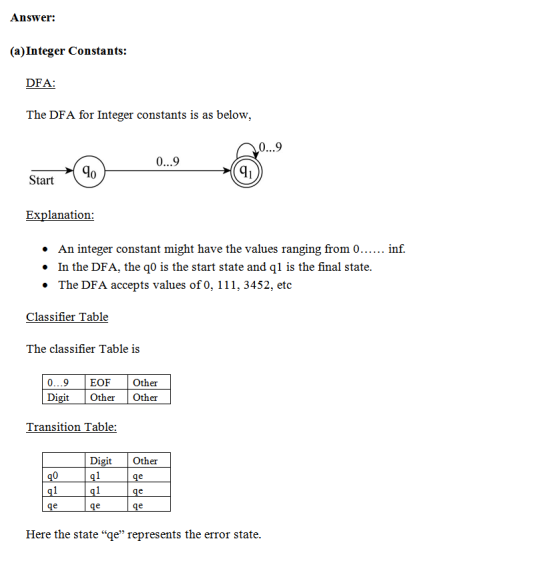

(a) Integer constants

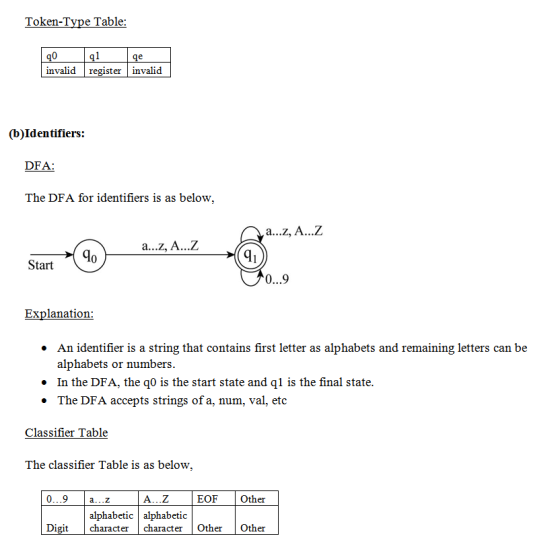

(b) Identifers

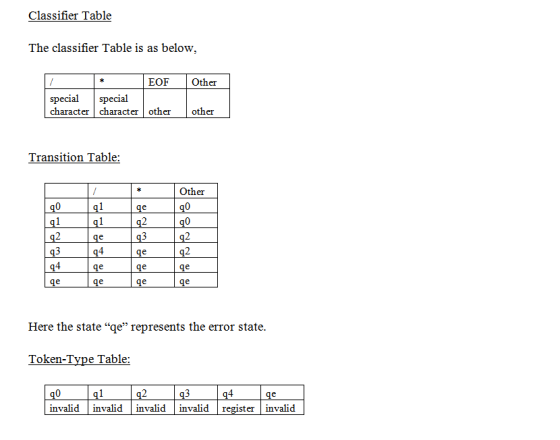

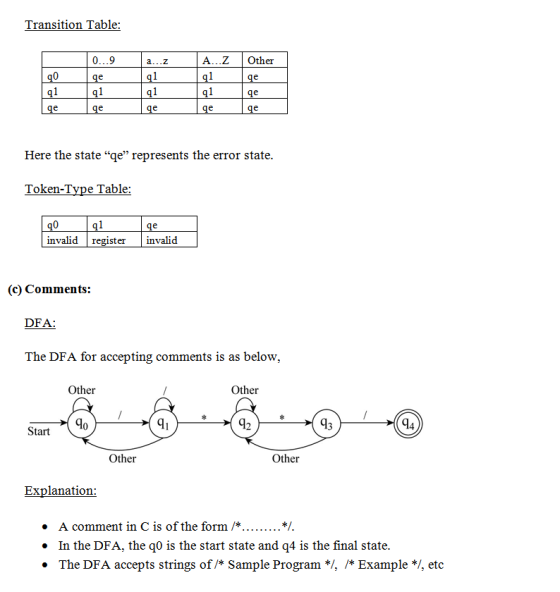

(c) Comments
Homework Answers
