6. (10 points) Consider the circuit shown below. The switch S has been closed for a...

Question

Question

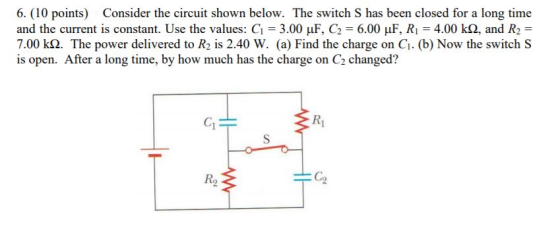

6. (10 points) Consider the circuit shown below. The switch S has been closed for a long time and the current is constant. Us

science physics

Answer 1

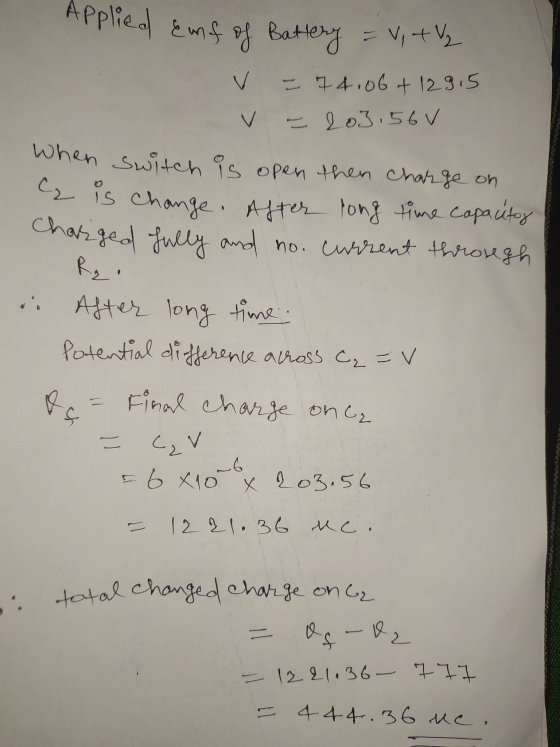

Answer #1

Answer 2

Similar Homework Help Questions

Switch S shown in the figure below has been closed for a long time, and the...

Switch S shown in the figure below has been closed for a long time, and the electric circuit carries a constant current. Take C 3.00 F, C2 6.00 uF, R1 = 4.00 k, and R2 = 7.00 k. The power delivered to R2 is 2.00 W. R C - S R, (a) Find the charge on C. Q 222.18 Your response is within 10 % of the correct value. This may be due to roundoff error, or you could have...
C) You are given the circuit below that is attached to an I 8 V battery not shown switch is open ...

C) You are given the circuit below that is attached to an I 8 V battery not shown switch is open and the circuit has been connected to the battery for a long time. initially th (a) What is the voltage difference between points a and b under these circumstances, with (b) What is the charge on each of the capacitors at this time (e.g. the magnitude of the char (c) The switch is now closed and we again wait...
Problem 6. The circuit shown below initially has no charge on the capacitors and the switch...

Problem 6. The circuit shown below initially has no charge on the capacitors and the switch S is originally open.R1= 4Ω,R2= 6Ω,R3= 8Ω,R4= 8Ω,C1= 2μF, and C2= 6μF. a) Just after closing the switch S, find the currents I1,I2,I3, and I4. b) After the switch has been closed a very long time, find the currents I1,I2,I3, and I4. c) After the switch S has been closed for a very long time, find the potential at points A,B, C, and D....

The switch in the circuit below has been closed for a very long time. 2. a....

The switch in the circuit below has been closed for a very long time. 2. a. What is the voltage across the capacitor? b. If the switch is opened, what is the time constant for discharging the capacitor? c. how long does it take the capacitor to discharge to 1/10th of its initial voltage? R1 = 1.00 Ω R2 = 8.00 Ω R3 = 4.00 Ω R4 = 2.00 Ω C = 1.00 μF Battery = 10.0 V R2 R4
In the circuit below, the switch was open for a long time and then closed at t=0 s.

In the circuit below, the switch was open for a long time and then closed at t=0 s. The values of the emf, resistors, and capacitors are ε = 11.5V, R1 = 2.4 Ω, R2 = 7.4 Ω, R3 = 0.3 Ω, CA = 7.1 μF, CB = 5.0 μF.(a) Immediately after the switch is closed, what is the current through resistor R1?A long time after the switch was closed, what are the charges stored on the two capacitors?(b) on...
For the next set of questions, consider the following circuit. The switch has been open for...

For the next set of questions, consider the following circuit. The switch has been open for a long time. At t=0, it is closed. t=0 11 R1 3 1 3 C c IL R2 3 V = Assume the following values: 11=5mA 12=10mA R1=2K R2=2k L1=10mH C1 = luF Find the following: a) 11(0), the initial current through the inductor (in mA): b) The final current thru the inductor after the switch has been closed for a long time (in...

A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....

A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 67 ?, R3 = 96 ? and R4 = 77 ?. The capacitance is C = 48 ?F and the battery voltage is V = 24 V. Consider the circuit above, with R5 = 67 ? in series with the capacitor. Once again, the switch has been open for a long time when at...
The switch in the circuit shown below has been closed for a long time until t=0...

The switch in the circuit shown below has been closed for a long time until t=0 when it is opened. What is the circuit time constant for t> 0? It=0 RS SR2 = 3R OT=[(R3 + RA)//R2 + R1]//R,C OT=R.C OT=RiC OT=R2C None of the above
The parameters of all elements in the circuit shown below are given: Ri=16.4 k22, R2=9.5 k12,...

The parameters of all elements in the circuit shown below are given: Ri=16.4 k22, R2=9.5 k12, C1=1.45 pF, C2=2.72 uF, and e=8 V (the internal resistance of the battery is negligible). R Hla E The capacitors in this circuit are not charged when, at time t=0, the switch S is closed. What is the current 11(t) in resistor R1 at time t=10.03 ms?: 11(t)= What is the charge Q2(t) on capacitor C2 at time t-10.03 ms?: Q2(t)- mA. ис.

A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....

A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Q, R3 = 117 and R4 = 127 . The capacitance is C = 56 uF and the battery voltage is V = 24 V. 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 110), the magnitude of the current...
