Irusses are shown. . с Е км Ve O Problem 06.031.b - Zero Force Members Determine...

Question

Question

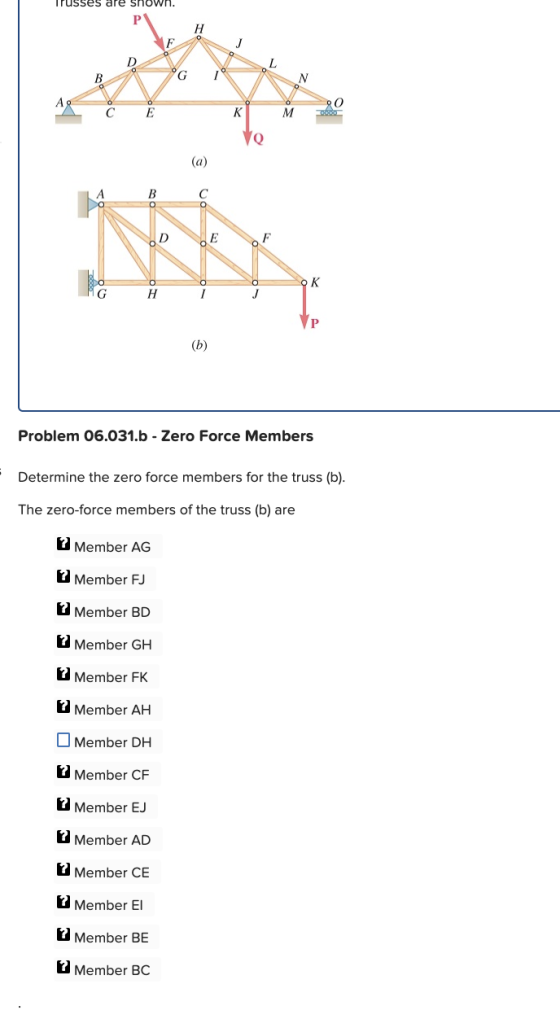

Irusses are shown. . с Е км Ve O Problem 06.031.b - Zero Force Members Determine the zero force members for the truss (b). Th

engineering Mechanical-Engineering

Answer 1

Answer #1

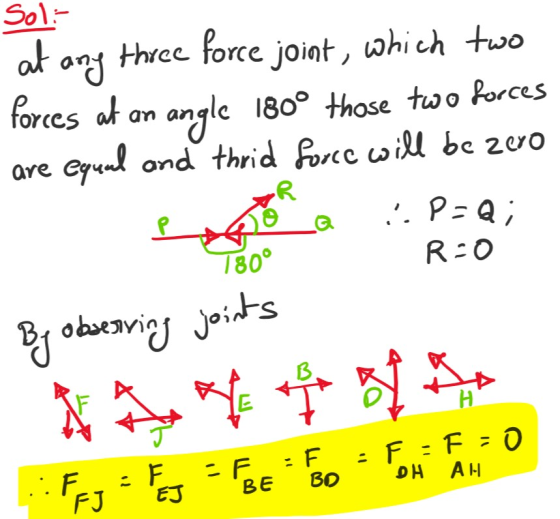

Solie at ang three force joint, which two forces at an angle 180° those two forces are equal and thrid force will be zero SR

Answer 2

Similar Homework Help Questions

3. Determine zero force members for the following trusses: с Е O D. K (b) Explain...

3. Determine zero force members for the following trusses: с Е O D. K (b) Explain in writing how you are able of observe zero-force members from these diagrams. Also, explain, why some zero-force members in problem (3) were not as obvious to observe.
For the truss shown below, the following are all zero force members by inspection only: 4...

For the truss shown below, the following are all zero force members by inspection only: 4 kN 8 kN 2.7 m 3.6 m 4.2 m 4.2 m 9.45 m 2.4 m 2.4 m EJ, BC, AG, EF, HC, EK BC, CD, BH, AG, EK, HC OCD, IJ, BH, EJ, BC, HC HD, IJ, BG, AE, EJ, HC
for truss shown A) list zero force members b) which members can be eliminated without reducing...

for truss shown A) list zero force members b) which members can be eliminated without reducing the strength of the truss c) force in member CF C E 4m G F 30 kN 3m+3 m+3 m+3 m

Problem 2 For the truss shown in the figure, a) Identify the zero-force members. b) Determine...

Problem 2 For the truss shown in the figure, a) Identify the zero-force members. b) Determine the forces in members ij & ih by the k 200N 100N Method of Joints c) Determine the force in member df by the Method of Sections. (Specify whether Tension or Compression). 3 m 3m
Problem 1 F L i B L С D W F = 3.26 KN L =...

Problem 1 F L i B L С D W F = 3.26 KN L = 4.6 m w = 1.0 m Using the method of joints, determine the force in each member of the truss shown. To report your results, use positive values for tensions and negative values for compressions -Force in member AB in kN: Answer: -Force in member AD in kN: Answer: -Force in member BC in kN: Answer: -Force in member BD in kN: Answer: -Force...
3. (a) Determine the zero-force members in the truss. (b) Determine the force DF of the truss shown. (18 marks) In 5 3. (a) Determine the zero-force members in the truss. (b) Determine the f...

3. (a) Determine the zero-force members in the truss. (b) Determine the force DF of the truss shown. (18 marks) In 5 3. (a) Determine the zero-force members in the truss. (b) Determine the force DF of the truss shown. (18 marks) In 5

Problem 1 (10 points) Estimated time: 6-8 mins. For the truss shown below I. Identify all...

Problem 1 (10 points) Estimated time: 6-8 mins. For the truss shown below I. Identify all zero force members II.Which of the following statement(s) is/are true? Circle all that apply. (a) Force in member CG is in tension and has a magnitude of 5 kN. (b) The magnitude and sense (T/C) of the internal force in member CH must be equal to that in member CF. (c) The magnitude and sense (T/C) of the internal force in member GH must...
Problem # 1 Determine the force in members AD, and CE of the truss shown 4.5...

Problem # 1 Determine the force in members AD, and CE of the truss shown 4.5 m4.5 m-4.5 m 20 kN 20 kN 36 kN A 2.4 m
Problem 3 ( 20 Points) For the shown truss: 1 Determine the force in member BD...

Problem 3 ( 20 Points) For the shown truss: 1 Determine the force in member BD using the force method. EA= constant 2. If there is an increase in temperature in member AD, does the increase ? briefly justify your answer. perature in member AD, does the force in member BD decrease or lo + 3 m +

2nd pic is reference (Q3 Unit 1) (4) Assuming all members in the pin-pointed truss below...

2nd pic is reference (Q3 Unit 1) (4) Assuming all members in the pin-pointed truss below (taken from Q3, Unit 1: Additional Examples sheet) have A = 2000 mm’and E = 200 kN/mm², determine the vertical displacement at E. 4 m 4 m 4 m * 3 m А E H it 80 KN 80 KN Ans: {vertical displacement 8E = - 1.43 mm (upwards)} 4 m 4 m 4 m 4 m + 3 m 80 KN 80 KN...
