HVAC Duct Problem (thanks in advance):

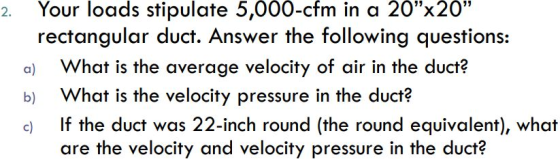

2. Your loads stipulate 5,000-cfm in a 20x20 rectangular duct. Answer the following questions: a) What is the average velocity of air in the duct? b) What is the velocity pressure in the duct? c) If the duct was 22-inch round (the round equivalent), what are the velocity and velocity pressure in the duct?

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

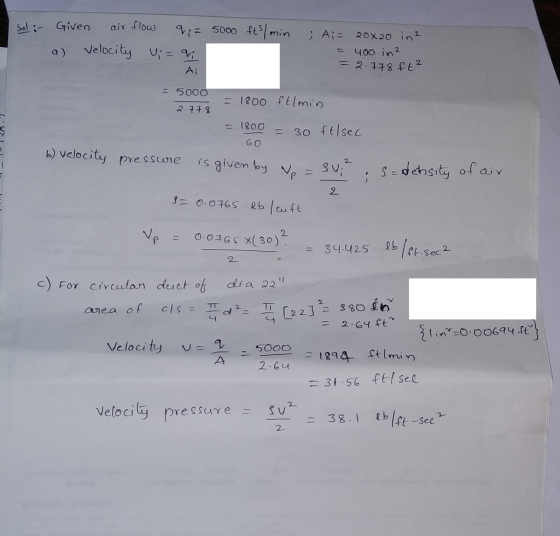

Sol :-Given aiv flow dni: 5000 ftsl min . Ai- 20x20 2 a) Veloci 400 in2 500O 2.구구 =1800 = 30 ft|sec G O b) velocity pre ssune

0 0
Add a comment
Know the answer?
Add Answer to:
HVAC Duct Problem (thanks in advance): 2. Your loads stipulate 5,000-cfm in a 20"x20" rectangular duct....
