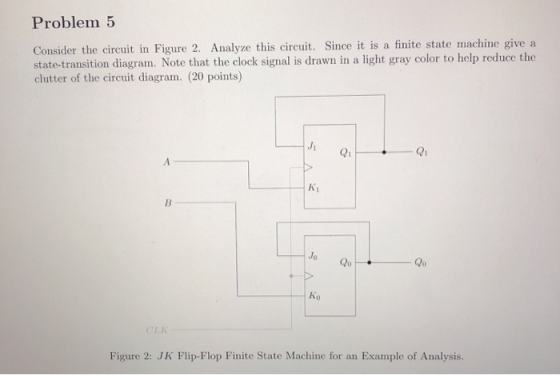

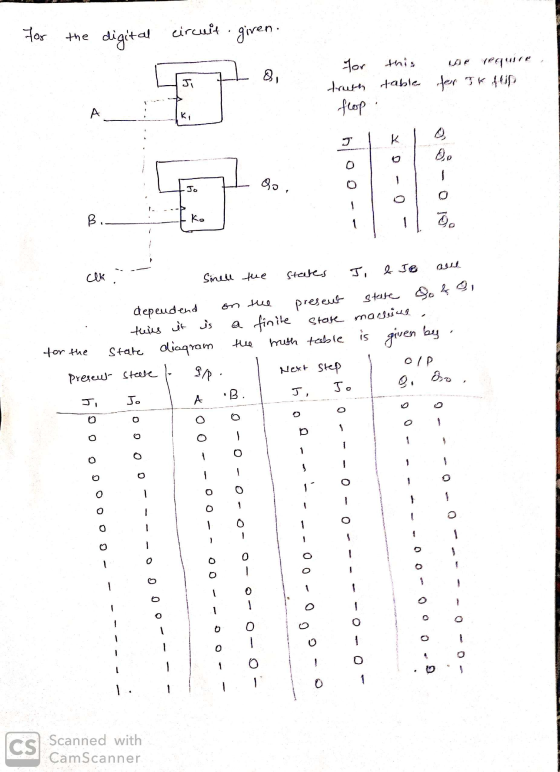

Problem 5 Consider the circuit in Figure 2. Analyze this circuit. Since it is a finite...
An engineer is designing a circuit to control a large-scale system. The engineer has broken the...
An engineer is designing a circuit to control a large-scale system. The engineer has broken the system in to more manageable design modules. One such module is the finite state machine shown in Figure 1. Key: AB/- 0 00 3 Охо 11 01 XO Figure 1: State-Transition Diagram for Problem 03. Design a circuit that implements the finite state machine shown in Figure 1 using JK flip-flops. It is sufficient to obtain Boolean expressions for flip-flop inputs. (25 points)
Need help part B and C please. Thank you . CDA3201·Intro to Logic Desig Lab Assignment...
Need help part B and C please. Thank you
. CDA3201·Intro to Logic Desig Lab Assignment Name: Grade: 20 5) 120] At right is the state dingram for a Moore sequential 1 01.10 АО circuit which monitors two inputs XiXo. When the two inputs XiXo are 00, the output Z toggles at every clock When the two inputs XiXo are 11, the output Z toggles at every other clock. When the two inputs XiXo are different, the output Z holds...
The lab can be made in orcad but all I need is how to and the...
The lab can be made in orcad but all I need is how to
and the design. Please Read the problem carefully and answer as
much as you can. Thank you!!!
Part 2 T and D from JK 1. Using part 74107 (JK flip-flop), build a T and a D-flip. Do NOT put both designs on the same schematic page or in the same folder. 2. Create parts for each and run a simulation using the parts created. Part 3....
T1 D Q T2 T Q Clk Figure 1 Sequential Circuit. EXERCISE 2 Consider the circuit...
T1 D Q T2 T Q Clk Figure 1 Sequential Circuit. EXERCISE 2 Consider the circuit of Figure 1. 1) Is this a Moore or a mealy Machine? Explain briefly. 2) Complete the following transition table for the machine. Use symbols Q2, Qi, and Qo for the JK, T and D flipflops respectively. Next State O2'Q1 Qo Output (Z) Present State x=1 001 010 011 100 101 110 3) Starting at State So, give the shortest sequence taken by X...
The following is an equivalent way of creating the circuit above. Below is the truth table...
The following is an equivalent way of creating the circuit
above.
Below is the truth table
Q2, Q1, and Q0 are LED outputs from left to right respectively
and D2, D1, and D0 are switches from left to right respectively
Answer the following questions:
1. What signal(s) represent the present state and next state of
the circuit?
2. Sketch a Finite State Machine diagram of the circuit (Be sure
to show inputs and outputs).
3. Describe the high-level behavior of...
Referring to the circuit in Figure 2 and the corresponding function table in Table 5 on...
Referring to the circuit in Figure 2 and the corresponding function table in Table 5 on page 5, answer the following questions: a) Draw the state diagram of the circuit (b) (5 Marks) Work out the logic circuit for the Output Block using only NAND gates and inverters. (5 Marks) (c) Give a brief description on the functional characteristics of the circuit in Figure 2 (2 Marks) (d) Redesign the circuit using only one flip-flop and some logic gates. You...
ercise 5 Part One: Sequential Logic ask 5.1,1: Design a 4-bit up/down counter that does not...
ercise 5 Part One: Sequential Logic ask 5.1,1: Design a 4-bit up/down counter that does not overflow or underflow. That is, counting up is disabled when it reaches its maximum value and counting down is disabled when it reaches its minimum value. Use circuit simulation to verify your design. Task 5.1.2: Design a logic implementation of the Finite State Machine in Fiqure 2.3 using JK flip flops. It can be assumed that unused state combinations may be considered as don't...
how slove 4-34, 4-35, 4-36??? I dont know that! please hlep me! 306 □ CHAPTER 4/SEQUENTIAL CIRCUITS OTABLE 4-16...
how slove 4-34, 4-35, 4-36??? I dont know that! please hlep me!
306 □ CHAPTER 4/SEQUENTIAL CIRCUITS OTABLE 4-16 State Table for Problem 4-33 Next State Input Output Present State 4-36 4-37 0 0 0 0 4-38 Design the circuit specified by Table 4-14 and use the sequence from Problen 4-31 (either yours or the one posted on the text website) to perform an automatic logic simulation-based verification of your design. 4 433. The state table for a sequential circuit...
Analyze the sequential counter circuit shown in figure 5.1. Derive the state transition table and diagram....
Analyze the sequential counter
circuit shown in figure 5.1. Derive the state transition table and
diagram.
7400 U1 7400 01. 74x73 U2 4 74x13 76x73 Ly, QH122 7400 Reset (11) Clock - Figure 5.1
solve 1 2 and 3 Problems 1 and 2 require a 7-segment display. You may want to re-use the display driver you developed in Lab 3. Use a push-button as the clock - the pushbuttons are debounced, whereas...
solve 1 2 and 3
Problems 1 and 2 require a 7-segment display. You may want to re-use the display driver you developed in Lab 3. Use a push-button as the clock - the pushbuttons are debounced, whereas the slide switches are not. Remember to provide columnsfor lest data in your state lables (use the observed next state as the test data in problems I and 2, and the observed next state and preseni output as the lest data in...
An engineer is designing a circuit to control a large-scale system. The engineer has broken the system in to more manageable design modules. One such module is the finite state machine shown in Figure 1. Key: AB/- 0 00 3 Охо 11 01 XO Figure 1: State-Transition Diagram for Problem 03. Design a circuit that implements the finite state machine shown in Figure 1 using JK flip-flops. It is sufficient to obtain Boolean expressions for flip-flop inputs. (25 points)
Need help part B and C please. Thank you
. CDA3201·Intro to Logic Desig Lab Assignment Name: Grade: 20 5) 120] At right is the state dingram for a Moore sequential 1 01.10 АО circuit which monitors two inputs XiXo. When the two inputs XiXo are 00, the output Z toggles at every clock When the two inputs XiXo are 11, the output Z toggles at every other clock. When the two inputs XiXo are different, the output Z holds...
The lab can be made in orcad but all I need is how to
and the design. Please Read the problem carefully and answer as
much as you can. Thank you!!!
Part 2 T and D from JK 1. Using part 74107 (JK flip-flop), build a T and a D-flip. Do NOT put both designs on the same schematic page or in the same folder. 2. Create parts for each and run a simulation using the parts created. Part 3....
T1 D Q T2 T Q Clk Figure 1 Sequential Circuit. EXERCISE 2 Consider the circuit of Figure 1. 1) Is this a Moore or a mealy Machine? Explain briefly. 2) Complete the following transition table for the machine. Use symbols Q2, Qi, and Qo for the JK, T and D flipflops respectively. Next State O2'Q1 Qo Output (Z) Present State x=1 001 010 011 100 101 110 3) Starting at State So, give the shortest sequence taken by X...
The following is an equivalent way of creating the circuit
above.
Below is the truth table
Q2, Q1, and Q0 are LED outputs from left to right respectively
and D2, D1, and D0 are switches from left to right respectively
Answer the following questions:
1. What signal(s) represent the present state and next state of
the circuit?
2. Sketch a Finite State Machine diagram of the circuit (Be sure
to show inputs and outputs).
3. Describe the high-level behavior of...
Referring to the circuit in Figure 2 and the corresponding function table in Table 5 on page 5, answer the following questions: a) Draw the state diagram of the circuit (b) (5 Marks) Work out the logic circuit for the Output Block using only NAND gates and inverters. (5 Marks) (c) Give a brief description on the functional characteristics of the circuit in Figure 2 (2 Marks) (d) Redesign the circuit using only one flip-flop and some logic gates. You...
ercise 5 Part One: Sequential Logic ask 5.1,1: Design a 4-bit up/down counter that does not overflow or underflow. That is, counting up is disabled when it reaches its maximum value and counting down is disabled when it reaches its minimum value. Use circuit simulation to verify your design. Task 5.1.2: Design a logic implementation of the Finite State Machine in Fiqure 2.3 using JK flip flops. It can be assumed that unused state combinations may be considered as don't...
how slove 4-34, 4-35, 4-36??? I dont know that! please hlep me!
306 □ CHAPTER 4/SEQUENTIAL CIRCUITS OTABLE 4-16 State Table for Problem 4-33 Next State Input Output Present State 4-36 4-37 0 0 0 0 4-38 Design the circuit specified by Table 4-14 and use the sequence from Problen 4-31 (either yours or the one posted on the text website) to perform an automatic logic simulation-based verification of your design. 4 433. The state table for a sequential circuit...
Analyze the sequential counter
circuit shown in figure 5.1. Derive the state transition table and
diagram.
7400 U1 7400 01. 74x73 U2 4 74x13 76x73 Ly, QH122 7400 Reset (11) Clock - Figure 5.1
solve 1 2 and 3
Problems 1 and 2 require a 7-segment display. You may want to re-use the display driver you developed in Lab 3. Use a push-button as the clock - the pushbuttons are debounced, whereas the slide switches are not. Remember to provide columnsfor lest data in your state lables (use the observed next state as the test data in problems I and 2, and the observed next state and preseni output as the lest data in...
