Question

implement a C++ class name Vector. The Vector class contains a private double array of length 2 named elements that represents a two-dimensional vector. We will also implement an overloaded multiplication operator (*) that accepts a single Vector variable by reference and returns the Dot Product between the current Vector object and the one pointed to by the function argument in form of a double.

Please recall that the dot product of two vectors a =(21,92) and 5 = (b1,b2) is equal to a real scalar, which is calculated as: c=21b1 + a2b2 You are also to overload the addition (+) and subtraction (operators in order to calculate the summation and subtraction of two vectors from each other. Please note that both of these overloaded operators must accept a single Vector variable by reference and return another Vector object by value according to the following equations: a + 5 = (a1 +61, 22+62) à-b=(Q1-b1, 22-62) Your submission must be named "main.cpp", and must be submitted prior to the due date to be considered.

Answer 1

Below is the code for above problem. I have added the main function to test the Vector class. I have also added comments to explain what each statement does.

I have included the screenshots of the code and the sample output.

If you have any queries, feel free to ask in comments.

If you find this answer helpful, please leave an Upvote.

C++ code :

#include <iostream>

using namespace std;

// Vector class
class Vector {

   private :

       // a double array representing a 2D vector
       double elements[2];

   public :

       // empty constructor
       Vector() {

       }

       // parameterized constructor to initialize a Vector
       Vector(double elem1, double elem2) {

           this->elements[0] = elem1;
           this->elements[1] = elem2;
       }

       // overriding the multiplication(*) operator
       double operator*(const Vector& vect) {

           // variable to store the dot product
           double dotProduct;

           // calculate the dot product
           dotProduct = (this->elements[0] * vect.elements[0]) + (this->elements[1] * vect.elements[1]);

           // return the calculated dot product
           return dotProduct;
       }
};

// main function to test the Vector class
int main() {

   // initialize the first vector
   Vector first(1.5, 2.8);

   // initialize the second vector
   Vector second(2.4, 5.9);

   /* calculate the dot product of the two vectors
       using the overloaded multiplication(*) operator
   */
   double product = first * second;

   // print the calculated dot product
   cout << "The dot product is : " << product;
}

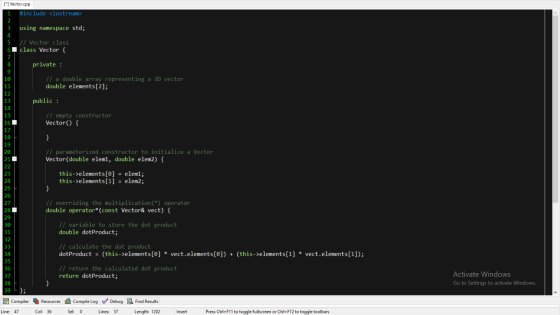

Screenshots of the code :

1)

[*] Vector.cpp 1 #include <iostream> 2 3 using namespace std; 4. 5 // Vector class 6 class Vector { 8 private : // a double array representing a 2D vector double elements[2]; public : // empty constructor Vector() { } Il parameterized constructor to initialize a Vector Vector (double elem1, double elem2) { 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 | 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 this->elements[0] = elem1; this->elements[1] = elem2; } // overriding the multiplication(*) operator double operator* (const Vector& vect) { // variable to store the dot product double dotProduct; // calculate the dot product dotProduct = (this->elements[0] * vect.elements[0]) + (this->elements[1] * vect.elements[1]); // return the calculated dot product return dotProduct; Activate Windows Go to Settings to activate Windows. } }; 8 Compiler Resources alth Compile Log Debug Find Results Line: 47 Col: 36 Sel: 0 Lines: 57 Length: 1202 Insert Press Ctrl+F11 to toggle fullscreen or Ctrl+F12 to toggle toolbars

2)

Screenshot of the sample outptut :
