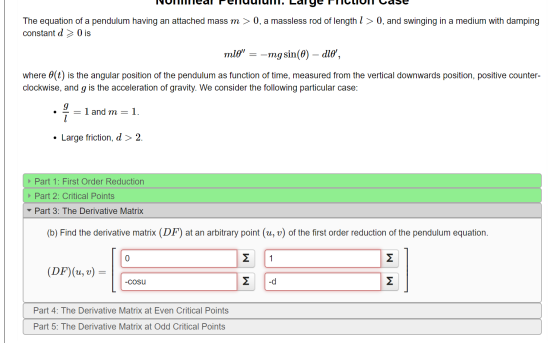

IVUIedl Peruuiunil. Ldiye riCLIUIT Case The equation of a pendulum having an attached mass m >...
Objectives To have a better understanding of direction fields, phase portraits, and graph of solutions functions...
Objectives To have a better understanding of direction fields, phase portraits, and graph of solutions functions of the equations describing a nonlinear pendulum. Introduction A pendulum consists of a small ball attached to the end of a rigid rod, the latter can swing from its other end, as shown in the picture below. We assume that the ball at the end of the pendulum has mass m > 0 and the pendulum rod has length l > 0. Also assume...
Question 2 The pendulum shown in Figure 2 consists of a concentrated mass m attached to a rod who...
Question 2 The pendulum shown in Figure 2 consists of a concentrated mass m attached to a rod whose mass is small compared to m. The rod's length is L. The equation of motion for this pendulum is Suppose that L 1 m and g 9.81 m/s2. Use MATLAB to solve this equation using symbolic and numerical techniques for, θ(t) for two cases: , θ(0)-0.5 rad and, θ(0)-0.8 rad. In both cases 0(0) 0. Figure 2- A pendulum [3 marks]...
Consider a damped pendulum consisting of a ball of mass M and radius a suspended by...
Consider a damped pendulum consisting of a ball of mass M and radius a suspended by a fine wire of length L below a pivot. The ball is moving through a fluid of viscosity y, and this retards its motion. It is assumed that the ball moves sufficiently slowly that Stokes law applies. Under these conditions, the equation describing the motion of the sphere is given by ML =-Mg sin 0 - 6xual, The initial conditions are 012-= 0, and...
Problem 4. A pendulum is modeled by a mass that is attached to a t y...
Problem 4. A pendulum is modeled by a mass that is attached to a t y weightless rigid rod. According to Newton's second law, as the 0-1 pendulum swings back and forth, the sum of the forces that are acting on the mass equals the mass times acceleration MASS ACCELERATION FREE BOOY de DIAGRAM DIAGRAM — RL dt mL 3D — тg sin(0) dt2 ma,-mê where L 1.25 m is the length of the pendulum, g = 9.81 m/s2 is...
Part 1: (Theory) Simple Pendulum 1. Consider a mass m hanging from a string of length...
Part 1: (Theory) Simple Pendulum 1. Consider a mass m hanging from a string of length L that makes an angle with the vertical (shown below). Assume the string is massless and that the hanging object is a point mass. Use Newton's Second Law directly to show that the equation of motion for this simple pendulum can be written: (LO) = -mgsin(o), (1) dia where is the angular displacement of the pendulum from its vertical equilibrium position (and is a...
2. (35 points) A pendulum consists of a point mass (m) attached to the end of a spring (massless ...
2. (35 points) A pendulum consists of a point mass (m) attached to the end of a spring (massless spring, equilibrium length-Lo and spring constant- k). The other end of the spring is attached to the ceiling. Initially the spring is un-sketched but is making an angle θ° with the vertical, the mass is released from rest, see figure below. Let the instantaneous length of the spring be r. Let the acceleration due to gravity be g celing (a) (10...
A) Write the Lagrangian for a simple pendulum consisting of a point mass m suspended at...
A) Write the Lagrangian for a simple pendulum consisting of a point mass m suspended at the end of a massless string of length l. Derive the equation of motion from the Euler-Lagrange equation, and solve for the motion in the small angle approximation. B) Assume the massless string can stretch with a restoring force F = -k (r-r0), where r0 is the unstretched length. Write the new Lagrangian and find the equations of motion. C) Can you re-write the...
A Pendulum with air resistance Pendula are widely used in applications including accelerometers and seismometers and...
A
Pendulum with air resistance Pendula are widely used in applications including accelerometers and seismometers and are a model system to study vibrations and damping. Consider a pendulum comprising a small mass m that is connected by a thin massless rod of length l to a hinged support The hinge is frictionless but the mass experiences air resistance as it swings. The air drag force on the mass is Fdrag-kv |v, where v is the velocity of the mass and...
A pendulum consists of a uniform rod of total mass m and length L that can...
A pendulum consists of a uniform rod of total mass m and length L that can pivot freely around one of its ends. The moment of inertia of such a rod around the pivot point is 1/3mL^2 The torque around the pivot point of the pendulum due to gravity is 1/2mgLsinθ, where θ is the angle the rod makes with the vertical and g is the acceleration due to gravity. a) Write down the equation of motion for the angle...
USE MATLAB ALSO PLOT THE PENDULUM animation Case 1: Pendulum Create a plot that shows a...
USE MATLAB ALSO PLOT THE PENDULUM animation
Case 1: Pendulum
Create a plot that shows a pendulum moving.
First,use the ode45 function to solve the pendulum equation
between 0 and 10 seconds. The pendulum equation is:
Create a plot that shows a pendulum moving First, use the ode45 function to solve the pendulum equation between 0 and 10 seconds. The pendulum equation is: + sin(e) 0 where g is gravity and L is the length of the pendulum bar. Use...
Objectives To have a better understanding of direction fields, phase portraits, and graph of solutions functions of the equations describing a nonlinear pendulum. Introduction A pendulum consists of a small ball attached to the end of a rigid rod, the latter can swing from its other end, as shown in the picture below. We assume that the ball at the end of the pendulum has mass m > 0 and the pendulum rod has length l > 0. Also assume...
Question 2 The pendulum shown in Figure 2 consists of a concentrated mass m attached to a rod whose mass is small compared to m. The rod's length is L. The equation of motion for this pendulum is Suppose that L 1 m and g 9.81 m/s2. Use MATLAB to solve this equation using symbolic and numerical techniques for, θ(t) for two cases: , θ(0)-0.5 rad and, θ(0)-0.8 rad. In both cases 0(0) 0. Figure 2- A pendulum [3 marks]...
Consider a damped pendulum consisting of a ball of mass M and radius a suspended by a fine wire of length L below a pivot. The ball is moving through a fluid of viscosity y, and this retards its motion. It is assumed that the ball moves sufficiently slowly that Stokes law applies. Under these conditions, the equation describing the motion of the sphere is given by ML =-Mg sin 0 - 6xual, The initial conditions are 012-= 0, and...
Problem 4. A pendulum is modeled by a mass that is attached to a t y weightless rigid rod. According to Newton's second law, as the 0-1 pendulum swings back and forth, the sum of the forces that are acting on the mass equals the mass times acceleration MASS ACCELERATION FREE BOOY de DIAGRAM DIAGRAM — RL dt mL 3D — тg sin(0) dt2 ma,-mê where L 1.25 m is the length of the pendulum, g = 9.81 m/s2 is...
Part 1: (Theory) Simple Pendulum 1. Consider a mass m hanging from a string of length L that makes an angle with the vertical (shown below). Assume the string is massless and that the hanging object is a point mass. Use Newton's Second Law directly to show that the equation of motion for this simple pendulum can be written: (LO) = -mgsin(o), (1) dia where is the angular displacement of the pendulum from its vertical equilibrium position (and is a...
2. (35 points) A pendulum consists of a point mass (m) attached to the end of a spring (massless spring, equilibrium length-Lo and spring constant- k). The other end of the spring is attached to the ceiling. Initially the spring is un-sketched but is making an angle θ° with the vertical, the mass is released from rest, see figure below. Let the instantaneous length of the spring be r. Let the acceleration due to gravity be g celing (a) (10...
A
Pendulum with air resistance Pendula are widely used in applications including accelerometers and seismometers and are a model system to study vibrations and damping. Consider a pendulum comprising a small mass m that is connected by a thin massless rod of length l to a hinged support The hinge is frictionless but the mass experiences air resistance as it swings. The air drag force on the mass is Fdrag-kv |v, where v is the velocity of the mass and...
USE MATLAB ALSO PLOT THE PENDULUM animation
Case 1: Pendulum
Create a plot that shows a pendulum moving.
First,use the ode45 function to solve the pendulum equation
between 0 and 10 seconds. The pendulum equation is:
Create a plot that shows a pendulum moving First, use the ode45 function to solve the pendulum equation between 0 and 10 seconds. The pendulum equation is: + sin(e) 0 where g is gravity and L is the length of the pendulum bar. Use...
