Question

2. Find the optimal dispatch and the total cost in $/h for the thermal plants in problem 1 when the total load is 1000 MW wit

Economic Operation and control of PS

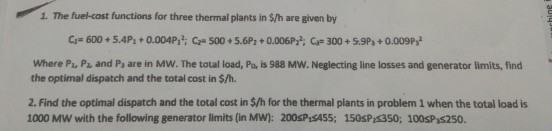

chine 1. The fuel-cost functions for three thermal plants in S/h are given by G=600 +5.4P +0.004P,?: C500 5.6P2 +0.006P2?; C

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

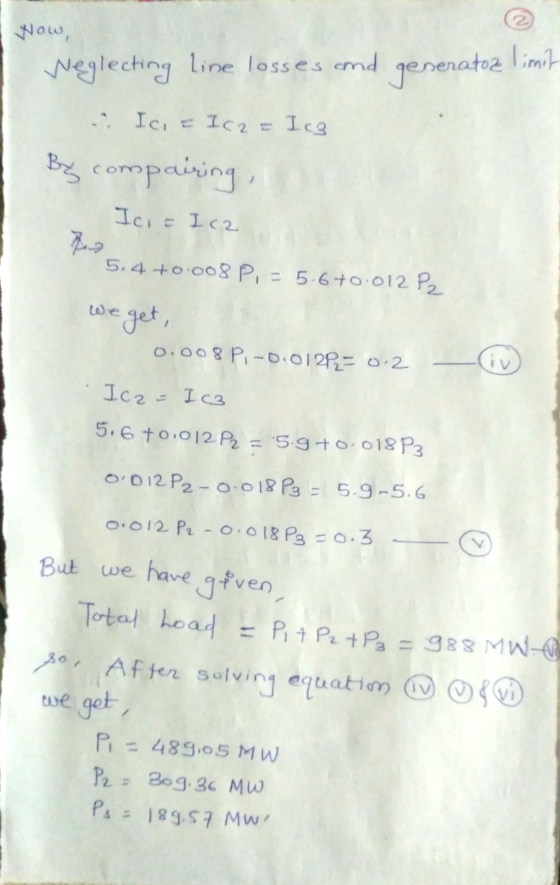

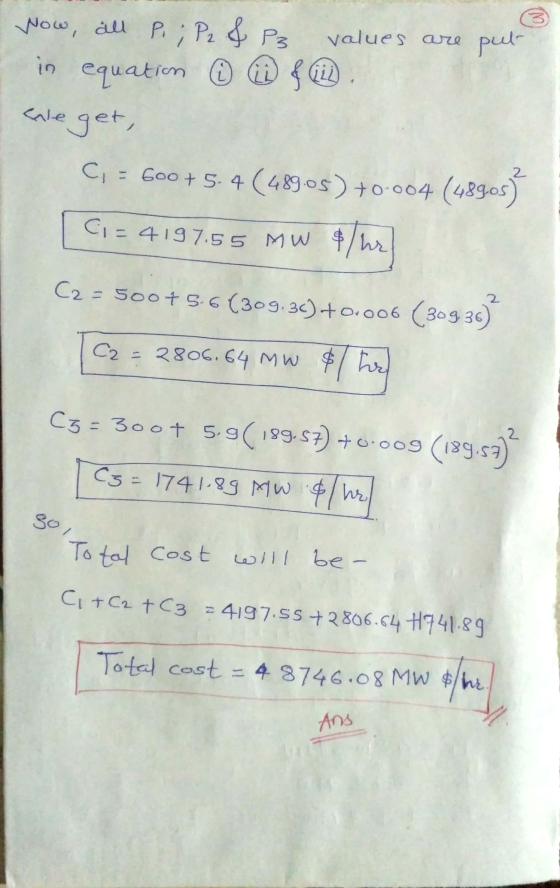

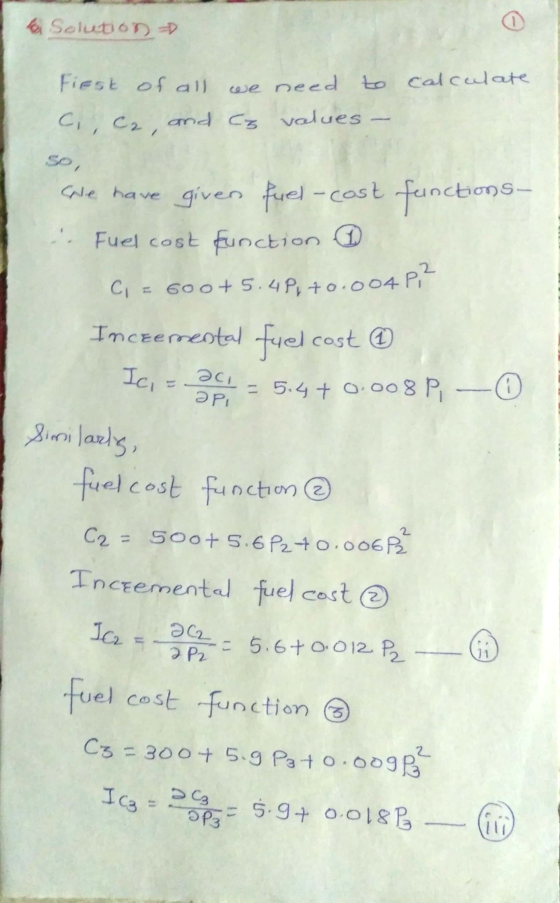

Answer #1

Please UPVOTE before leave and ! Thank you.

0 0
Add a comment
Know the answer?
Add Answer to:
Economic Operation and control of PS 2. Find the optimal dispatch and the total cost in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Economic Operation and control of PS 3. The fuel-cost functions for three thermal plants in $/h...

    Economic Operation and control of PS 3. The fuel-cost functions for three thermal plants in $/h are given by C.- 210 +7.2P+0.008P,2; C= 190 +6.4P+0.009P2?; Co- 145 +6.9P3 +0.007P)? Where Ps, Pz, and Ps are in MW. Plant outputs are subject to the following limits (in MW): 155P 590; 155P 585; 155P,575. The total load, Po, is 155 MW. Assume that the real line losses is P=0.000218P,? + 0.000228P, +0.000179P22 MW. Determine the optimal dispatch and the total cost in...

  • 3) Solve the following Economic Dispatch problem using Dynamic Programming to find total minimum ...

    3) Solve the following Economic Dispatch problem using Dynamic Programming to find total minimum cost and P, P2, Ps, for load 300 MW? (25 points) 0 50 75 100 125 800 850 975 1000 1000 1250 1400 500 600 700 3) Solve the following Economic Dispatch problem using Dynamic Programming to find total minimum cost and P, P2, Ps, for load 300 MW? (25 points) 0 50 75 100 125 800 850 975 1000 1000 1250 1400 500 600 700

  • Please do problem #2. I posted both problems 1 and 2 because problem 2 is based...

    Please do problem #2. I posted both problems 1 and 2 because problem 2 is based on problem 1. Please do part a,b and c. Label each part clearly (5 points) Given below are the cost curves of 5 generators which are to supply a load of 750 MW: 1. fi -0.01 Pa2+2 Pa+50 f 0.005 P24 P2 +200 f 0.0075 P+1.5 Pe3 +10 S/h f4-0.04 Pgs 0.5 P4+ 150 fs-0.003 P +3 Pgs+ 12S/h S/h S/h S/h Assume that...

  • Problem 2 The fuel-cost function in $/h of two thermal plants are ?1 = 320 +...

    Problem 2 The fuel-cost function in $/h of two thermal plants are ?1 = 320 + 6.2?1 + 0.004?1 2 , ?2 = 200 + 6.0?2 + 0.003?2 2 , where ?1 and ?2 are in MW. Plant outputs are subject to the following limits (in MW) Problem 2 The fuel-cost function in $/h of two thermal plants are C1 = 320 +6.2P2 +0.004P], C2 = 200 +6.0P2 + 0.003P2, where P and P2 are in MW. Plant outputs are...

  • Economic dispatch. The fuel cost function in dollars / hour of two thermal plants is C1=320+6.2...

    Economic dispatch. The fuel cost function in dollars / hour of two thermal plants is C1=320+6.2 P1+0.004 P1^2 C2=200+6.0 P2+0.003 P2^2 where P1 and P2 are in MW. Plant outputs are subject to the following constraints: 50 ≤ P1 ≤ 250 50 ≤ P2 ≤ 350 On a 100MVA base, the per unit real power loss is PL = 0.0125 P1^2+ 0.00625 P2^2 The total load is 412.35MW. Determine the optimal dispatch of generation.

  • Solve the following economic dispatch problem using dynamic programming to find total minimum cos...

    Yes dynamic programming Solve the following economic dispatch problem using dynamic programming to find total minimum cost and Pi ,P2, P3 for load 300 MW. F1 (S / hour) F2 (S /hour) F3 (S/hour) 0 50 75 100 125 800 850 975 1000 1000 1250 1400 500 600 700 Solve the following economic dispatch problem using dynamic programming to find total minimum cost and Pi ,P2, P3 for load 300 MW. F1 (S / hour) F2 (S /hour) F3 (S/hour)...

  • Power economic schedule, economic dispatch question Problem 02) The system to be studied consists of two...

    Power economic schedule, economic dispatch question Problem 02) The system to be studied consists of two units as described as follows. Assume that the fuel inputs in MBtu per hour for units 1 and 2, which are both on-line, are given by H = 8P+0.024P2 + 80 H, = 6P, +0.04P + 120 Where, H = fuel input to unitn in MBtu per hour (millions of Btu per hour) (n = 1,2) Pr = unit output in megawatts (n =...

  • Problem 2 -The fuel-cost curves for a three-generator po system are given as follows: Ax10 P...

    Problem 2 -The fuel-cost curves for a three-generator po system are given as follows: Ax10 P C2(P2)-600+ 10xP2+0.3 xP2 Ca(Ps)900+ 15xP3+0.1x P, The system losses in MW can be approximated as: P 10 If the system is operating with a marginal cost(λ) of $50/hr, dete (a) The output of each unit, (b) The total transmission losses cost (A) of SSO/hr, determin10% Pf+ 10% P3, 4x104 P1 P2 (c) The total load demand, (d) The total operating cost.

  • Assume that we have the following fuel-cost curves for two generating units: Ci(PGI) = 500 +46...

    Assume that we have the following fuel-cost curves for two generating units: Ci(PGI) = 500 +46 PG1 +0.008 PG. 150 <PG < 500 MW Cz(PG2) = 450+40 PG2 +0.001 PG22 100 P625 600 MW Network losses are related to the generator powers as follows; Pu=0.0008P6r+0.0004 PGZ- Find the optimal dispatch of units and the total cost in dollars/hr when the total load, Pp, is 600 MW.

  • 4.4 You are given three generating units and asked to find the optimal unit commit- ment...

    4.4 You are given three generating units and asked to find the optimal unit commit- ment schedule for the units to supply load over a 4-h time period. our MW Load 400 1000 1600 400 Gen 1: F(P) 2200+25P 0.025xP2 where 220s P, s600 MW Gen 2: F2(P)1500+P +0.02 x P2 where 350sP2s800MW Gen 3: F, B-l 000 + 20P, + 0.0 1 5 × P where 150 P, 600 Each generator has a start-up cost that must be factored...
