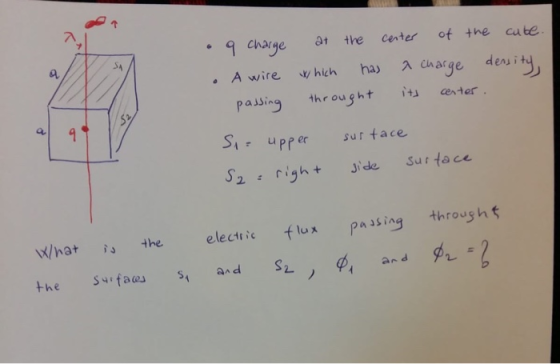

at of the cube. the center q charge has 9 which a charge density, A wire...

Question

Question

science physics

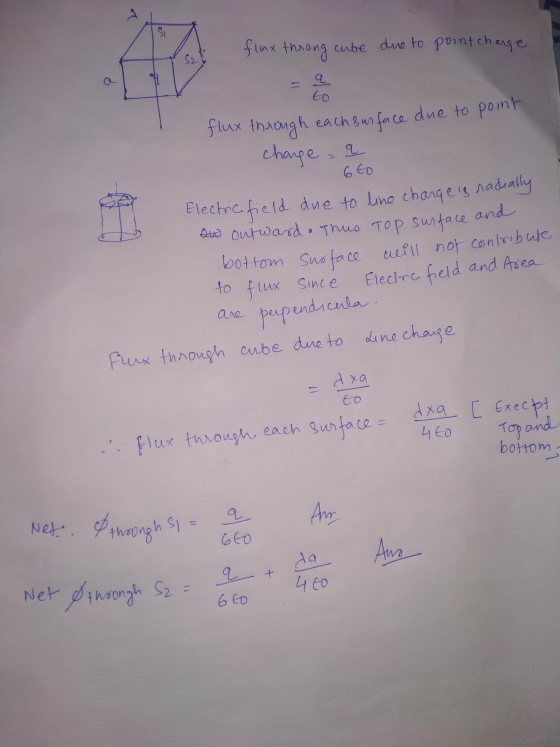

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A charge q= -90 nC sits at the center of a cube of side length L...

A charge q= -90 nC sits at the center of a cube of side length L = 1.15369248 m. Find a) the total flux of the electric field through the cubical surface. b) the flux through each of its faces, and c_ the flux through the surface of a cube that is twice as large, but is not centered on the charge, q.
A single point charge q is located at the center of both an imaginary cube and...

A single point charge q is located at the center of both an imaginary cube and an imaginary sphere. How docs the electric flux through the surface of the cube compare to that through the surface of the sphere? The net electric flux through the surface of the cube Select the net electric flux through the surface of the sphere. Fxplain your answer
1. (3 points) A charge is at the center of a cube of side length a...

1. (3 points) A charge is at the center of a cube of side length a . What is the electric flux through the cube due to this charge? 2. (3 points) A charge Q is a distance b above the center of the top face of a cube of side length a. (Note: This charge is outside of the cube.) What is the electric flux through the cube due to this charge? 3. (4 points) A parallel plate capacitor...

PRACTICE: A point charge Q is placed at the center of cube of side a. The...

PRACTICE: A point charge Q is placed at the center of cube of side a. The electric flux through any one of the six sides is a. kQ/a2 b. Q/6ɛo c. Q/ɛo d. O e. Cannot be determined from the information provided a a
A particle of charge 1.8 mC is at the center of a Gaussian cube 55 cm...

A particle of charge 1.8 mC is at the center of a Gaussian cube 55 cm on edge.What is the net electric flux through the surface? question: For problem 23.7, calculate the total flux through the one side of the cube in kNm2/C for a particle with a charge 1.59 mC at the center of the cube. (5 sig. figs.) the answer is 29.892, can you explain how to get that?
An electric flux produced by a point charge q though sphere of radius r is фо(E)....

An electric flux produced by a point charge q though sphere of radius r is фо(E). Describe how this flux would change in the following cases: a) The charge is triplet. 6. b) The volume of the sphere is doubled. c) The surface is changed to a cube with side of length / and the charge placed on the center. d) The charge is moved away from the center, but still inside the cube. e) The charge is outside the...

A point charge of magnitude q is at the center of a cube with sides of...

A point charge of magnitude q is at the center of a cube with sides of length L Part A) What is the electric flux ? through each of the six faces of the cube? Use ?0 for the permittivity of free space. Part B) What would be the flux ?1 through a face of the cube if its sides were of length L1 ? Use ?0 for the permittivity of free space.
Question 7 (#306159-13) (Gauss's Law) D2 A positive charge, q-23.8 nC is placed of the cube,...

Question 7 (#306159-13) (Gauss's Law) D2 A positive charge, q-23.8 nC is placed of the cube, as shown in blue in the figure below at the center of a 1 m wide cube. Calculate the electric flux, ФЕ. passing through the right face Enter answer here
A point charge q +3 HC is at the center of a sphere of radius 0.3...

A point charge q +3 HC is at the center of a sphere of radius 0.3 m. (a) Find the surface area of the sphere. (b) Find the magnitude of the electric field at points on the surface of the sphere. N/C (c) What is the flux of the electric field due to the point charge through the surface of the sphere? N m2/C (d) Would your answer to part (c) change if the point charge were moved so that...

A positive charge, q 23.1 nC is placed at the center of a 1 m wide...

A positive charge, q 23.1 nC is placed at the center of a 1 m wide cube. Calculate the electrio flux, ФЕ, passing through the right face of the cube, as shown in blue in the figure below.
