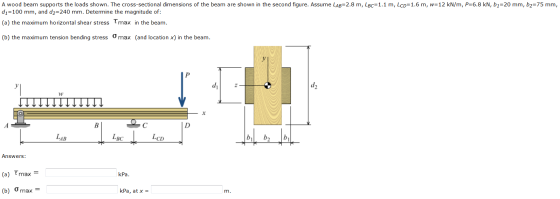

A wood beam supports the loads shown. The cross-sectional dimensions of the beam are shown in...

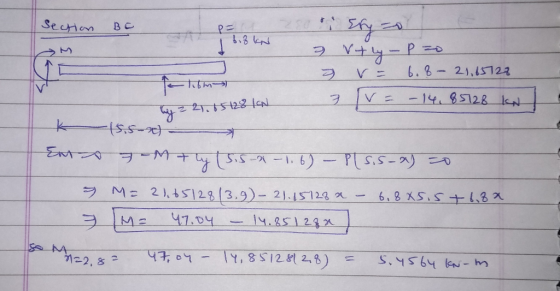

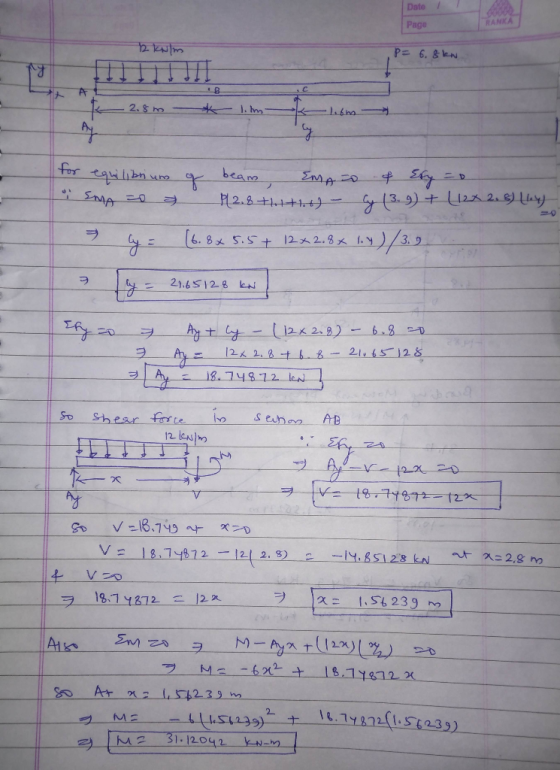

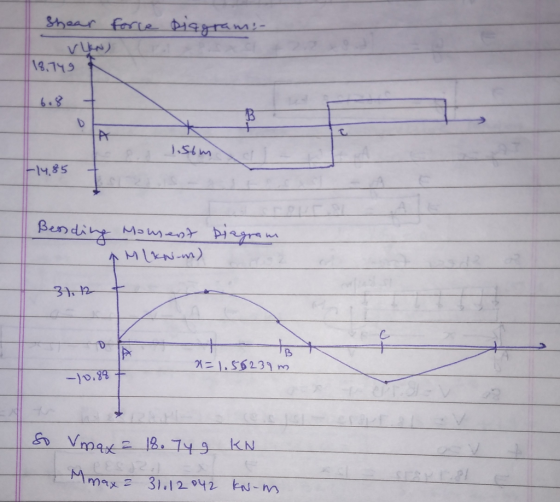

A flanged wooden shape is used to support the loads shown on the beam. The dimensions of the shape are shown in the second figure. Assume LAB = 5 ft. LBC = 2 ft, LCD= 3 ft, LDE = 4 ft, Pc = 2060 lb, Pe= 1990 lb, WAB = 750 lb/ft, b1 = 10 in., b2 = 2 in., b3 = 7 in., dų = 2 in., d2 = 8 in., d3= 2 in. Consider the entire 14-ft length...
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
A cantilever beam supports the loads shown. The cross-sectional
dimensions of the shape are also shown. Assume
LAB = 3.5 ft, LBC = 10.5
ft, w = 1380 lb/ft, P = 2600 lb, b = 15
in., d = 7 in., t = 0.35 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
2 LAB LBC Answers
A flanged wooden shape is used to support the loads shown on the beam. The dimensions of the shape are shown in the second figure. Assume LAB = 7 ft, Lec = 4 ft, Lcd = 4 ft, LDE = 2 ft, Pc = 1730 lb, PE = 2320 lb, WAB = 710 lb/ft, b = 8 in., b2 = 2 in., b3 = 5 in., da = 2 in., d2 = 7 in., dz = 2 in. Consider the...
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume mm, by - 85 mm, 5 mm, 9 mm. Determine - 0.5 m, P. - 4.0 kN, Pg - 7.5 kN, Pe-2.0 kN, -85 (a) the maximum vertical shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress. See the coordinate system for the beam in the problem figure with the origin of the x axis at the feed...
A flanged wooden shape is used to support the loads shown on the beam. The dimensions of the shape are shown in the second figure. Assume LAB = 6 ft, LBC = 2 ft, LCD = 2 ft, LDE = 4 ft, PC = 1700 lb, PE = 1750 lb, wAB = 610 lb/ft, b1 = 7 in., b2 = 2 in., b3 = 3 in., d1 = 2 in., d2 = 11 in., d3 = 2 in. Consider the...
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. Determine (a) the maximum horizontal shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress BC MB Answers: ksi ƠC,ma,- (b) ksi ƠT,max= (c)
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A WT305 × 41 standard steel shape is used to support the loads shown on the beam. The dimensions from the top and bottom of the shape to the centroidal axis are shown in the sketch of the cross section. Assume LAB = 3 m, LBC = 3 m, LCD = 3 m, PA = 17 kN, wBC = 11 kN/m. Consider the entire 9-m length of the beam and determine: (a) the maximum tension bending stress σT at any...
P9.049 A wooden beam is fabricated from three boards, which are fastened together with screws, as shown. The screws are uniformly spaced along the span of the beam at intervals of 240 mm. In service, the beam will be positioned so that bending occurs about the z axis. The maximum bending moment in the beam is Mz--4.99 kN-m, and the maximum shear force in the beam is Vy -3.25 kN. Assume s=240 mm, b,-37 mm, b2=240 mm, d1=190 mm, d2=...
Chapter 8, Reserve Problem 054 X Not Correct A WT305 x 41 standard steel shape is used to support the loads shown on the beam. The dimensions from the top and bottom of the shape to the centroidal axis are shown in the sketch of the cross section. Assume LAB = 1 m, LBC = 7 m, LcD = 3 m, PA = 9 KN, WBC = 7 kN/m. Consider the entire 11-m length of the beam and determine: (a)...
