![Potentially electrifying problems NAME: A. [15 pts.] For the circuit shown, what is the current (magnitude and direction) thr](http://img.homeworklib.com/questions/9ffb4610-5b74-11eb-a6b7-c5bb16f9e659.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
physics

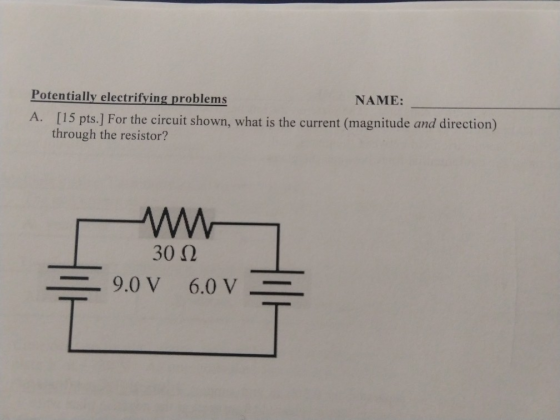

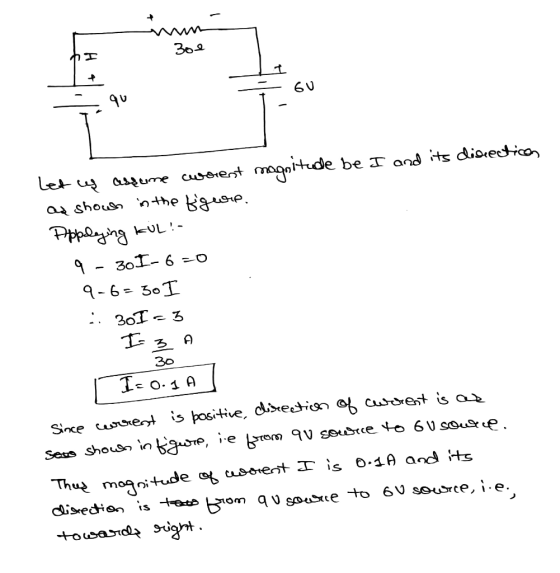

Potentially electrifying problems NAME: A. [15 pts.] For the circuit shown, what is the current...
Find the magnitude and direction of the current through resistor R in the circuit shown if...
Find the magnitude and direction of the current through resistor
R in the circuit shown if R=57 ΩΩ and V=13 V.
What is the direction of the current through resistor R?
Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell
4Ω 14. For the circuit shown, a 1.96 A current leaves the 18 V source and...
4Ω 14. For the circuit shown, a 1.96 A current leaves the 18 V source and flows through the 4.0 Ω resistor. The ammeter A in the center branch of the circuit measures the current through the 6.0 Ω resistor to be 0.69 A, downward, in the reverse direction through the 6.0 V source. What is the magnitude of the voltage drop across the 8 Ω resistor? [hint: consider branching currents or voltage drops). 8Ω 6Ω A) 6 V B)6.6...
Find the magnitude and direction of the current through resistor R in the circuit shown if...
Find the magnitude and direction of the current through resistor R in the circuit shown if R 74 Ω and V 15 V 85 Ω 15 V 151 Ω Answer Choose... What is the direction of the current through resistor R? Select one: down up can't tell
there is a current of .25 A in the circuit shown. what is the direction of...
there is a current of .25 A in the circuit shown.
what is the direction of the current?
what is the value of the resistor R?
what is the power dissipated by R?
6.0 0. 120 w 6.0 v 12 V R www
PHYSICS II: 4) For the circuit shown below, find: a) the equivalent resistance; b) the current through the battery;...
PHYSICS II:
4) For the circuit shown below, find: a) the equivalent resistance; b) the current through the battery; c) the potential difference across the 10 ohm resistor. 9 p /A we 100C 5) Two resistors with resistances of 12.0 2 and 6.0 are connected in parallel. An 8.0-12 resistor is then connected in series with this parallel combination. An ideal 12.0-V battery is then connected across the series- parallel combination. A) Draw a diagram of this circuit. B) Find...
What is the current through R1? Question 10 1 pts In the circuit shown in the...
What is the current through R1?
Question 10 1 pts In the circuit shown in the figure, R1 = 60, R2 = 1200, R3 = 1800, V1 -3.0 V, V2 = 6.0 V, and the batteries are both ideal. What is the current through R1? RE -V2 R. • R₂ O 2.68 A 0.00 A O 0.050 A 0.030 A
Help with number 26 Holt Chapter 20 Practice problems? The diagram is above. Practice problems■mm mmm-29.For...
Help with number 26 Holt
Chapter 20 Practice problems? The diagram is above.
Practice problems■mm mmm-29.For thecircuit shown in Figure 20-39, determi 25. Find the equivalent resistance of the circuit shown e - a. the current in each resistor in Figure 20-36. (See Sample Problem 20C.) b. the potential difference across each resisto See Sample Problem 20D.) 30.0 V 6.0 Ω 18Ω 9.0 Ω 6.0Ω 9.0 Ω 12Ω Figure 20-36 12 V 3.0 Ω Figure 20-39 26. Find the equivalent...
10.5 pts Question In the following circuit use the 10 V battery to guess the initial...
10.5 pts Question In the following circuit use the 10 V battery to guess the initial direction of current flow and label current I as the current through the 5 Ohm resistor current l1 as the current through the 15 Ohm resistor, and current l2 as the current through the 20 Ohm resistor. What are three equations which can be used to determine the three currents? 5 Ohms -20 V 20 Ohms 15 Ohms 3 Ohms 30 v
Help needed to solve these two current transient questions. 5. (15 pts) Determine the current i...
Help needed to solve these two current transient
questions.
5. (15 pts) Determine the current i through the 4 resistor of the following circuit. 3 H 000- IH 3 cos 21 v 34 4 cos 21 V i(t) = 3H IH 6. (15 pts) Determine the current i through the 4 resistor of the following circuit. 4 cos Siv 4 cos 51 V ( J 840 ③ 3 cos 21 v i(t) =
AF P3. (20 pts) In the electric circuit shown below a) (12 pts) Determine the CURRENT...
AF P3. (20 pts) In the electric circuit shown below a) (12 pts) Determine the CURRENT and VOLTAGE through EACH resistor.o b) (4 pts) You REMOVE just ONE resistor to INCREASE the current out of the batt WHICH resistor AND what is now the current out of the battery c) (4 pts) You REMOVE just ONE resistor to DECREASE the current out of the battery WHICH resistor AND what is now the current out of the battery E-40.0 volts (internal...
Find the magnitude and direction of the current through resistor
R in the circuit shown if R=57 ΩΩ and V=13 V.
What is the direction of the current through resistor R?
Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell
4Ω 14. For the circuit shown, a 1.96 A current leaves the 18 V source and flows through the 4.0 Ω resistor. The ammeter A in the center branch of the circuit measures the current through the 6.0 Ω resistor to be 0.69 A, downward, in the reverse direction through the 6.0 V source. What is the magnitude of the voltage drop across the 8 Ω resistor? [hint: consider branching currents or voltage drops). 8Ω 6Ω A) 6 V B)6.6...
Find the magnitude and direction of the current through resistor R in the circuit shown if R 74 Ω and V 15 V 85 Ω 15 V 151 Ω Answer Choose... What is the direction of the current through resistor R? Select one: down up can't tell
there is a current of .25 A in the circuit shown.
what is the direction of the current?
what is the value of the resistor R?
what is the power dissipated by R?
6.0 0. 120 w 6.0 v 12 V R www
PHYSICS II:
4) For the circuit shown below, find: a) the equivalent resistance; b) the current through the battery; c) the potential difference across the 10 ohm resistor. 9 p /A we 100C 5) Two resistors with resistances of 12.0 2 and 6.0 are connected in parallel. An 8.0-12 resistor is then connected in series with this parallel combination. An ideal 12.0-V battery is then connected across the series- parallel combination. A) Draw a diagram of this circuit. B) Find...
What is the current through R1?
Question 10 1 pts In the circuit shown in the figure, R1 = 60, R2 = 1200, R3 = 1800, V1 -3.0 V, V2 = 6.0 V, and the batteries are both ideal. What is the current through R1? RE -V2 R. • R₂ O 2.68 A 0.00 A O 0.050 A 0.030 A
Help with number 26 Holt
Chapter 20 Practice problems? The diagram is above.
Practice problems■mm mmm-29.For thecircuit shown in Figure 20-39, determi 25. Find the equivalent resistance of the circuit shown e - a. the current in each resistor in Figure 20-36. (See Sample Problem 20C.) b. the potential difference across each resisto See Sample Problem 20D.) 30.0 V 6.0 Ω 18Ω 9.0 Ω 6.0Ω 9.0 Ω 12Ω Figure 20-36 12 V 3.0 Ω Figure 20-39 26. Find the equivalent...
10.5 pts Question In the following circuit use the 10 V battery to guess the initial direction of current flow and label current I as the current through the 5 Ohm resistor current l1 as the current through the 15 Ohm resistor, and current l2 as the current through the 20 Ohm resistor. What are three equations which can be used to determine the three currents? 5 Ohms -20 V 20 Ohms 15 Ohms 3 Ohms 30 v
Help needed to solve these two current transient
questions.
5. (15 pts) Determine the current i through the 4 resistor of the following circuit. 3 H 000- IH 3 cos 21 v 34 4 cos 21 V i(t) = 3H IH 6. (15 pts) Determine the current i through the 4 resistor of the following circuit. 4 cos Siv 4 cos 51 V ( J 840 ③ 3 cos 21 v i(t) =
AF P3. (20 pts) In the electric circuit shown below a) (12 pts) Determine the CURRENT and VOLTAGE through EACH resistor.o b) (4 pts) You REMOVE just ONE resistor to INCREASE the current out of the batt WHICH resistor AND what is now the current out of the battery c) (4 pts) You REMOVE just ONE resistor to DECREASE the current out of the battery WHICH resistor AND what is now the current out of the battery E-40.0 volts (internal...
