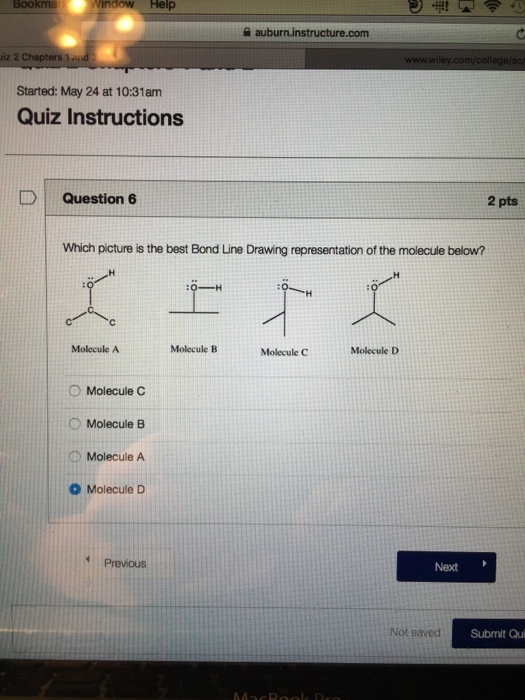

Which picture is the best Bond Line Drawing representation of the molecule below?

Question

Question

science chemistry

Answer 1

Answer #1

Molecule D is the best drawn picture as O-H bond angle of 104.5 is shown in this along with carbon shown as bond line foemula

Answer 2

Similar Homework Help Questions

Draw a molecule: - Complete the drawing below by drawing the bond line-angle structure of 4-Ethyl-5-isopropyl-6-...

Draw a molecule: - Complete the drawing below by drawing the bond line-angle structure of 4-Ethyl-5-isopropyl-6- methyldecane? ist Marvin JS by ChemAxon tl. Ci Br t3 Fullscreen
Convert the Fischer representation shown below into a line-angle drawing with the proper stereochemistry. CHO HO...

Convert the Fischer representation shown below into a line-angle drawing with the proper stereochemistry. CHO HO H H ОН Br -H CH,COOH
Convert fisher representation shown below into line angle drawing with proper stereochemistry no CHO tc- Hd...

Convert fisher representation shown below into line angle drawing with proper stereochemistry no CHO tc- Hd F1 Hi ㅍ 나 TO CH₂COOH

Convert fisher representation shown below into line angle drawing with proper stereochemistry СНО HO I HO...

Convert fisher representation shown below into line angle drawing with proper stereochemistry СНО HO I HO Br H _H₂ Hoon
Convert fisher representation shown below into line angle drawing with proper stereochemistry СНО HO I HO...

Convert fisher representation shown below into line angle drawing with proper stereochemistry СНО HO I HO Br H _H₂ Hoon
Conformations of the 1 - bromopropane molecule: Draw the line-bond structure of the 1-bromopropane molecule (C_3...

Conformations of the 1 - bromopropane molecule: Draw the line-bond structure of the 1-bromopropane molecule (C_3 H_7 Br). You will draw your Newman projection based on the rotation of the bond between the first and second carbon atoms (C1-C2). Highlight this carbon-carbon bond by drawing the bond as a bold line. Next, use your model kit to build a model of the molecule. Draw the Newman projection for each dihedral angle at 60 degree interval (from 0 degree to 360...

Convert the Fischer representation shown below into a line-angle drawing with proper stereochemistry. [File Response] CHO...

Convert the Fischer representation shown below into a line-angle drawing with proper stereochemistry. [File Response] CHO HO H H OH Br -Н CH2COOH ait oly not alonla alvejad erial woled benutului de
ar Z BT AA 3 20) Look at the picture below of a lithium-fluoride molecule and...

ar Z BT AA 3 20) Look at the picture below of a lithium-fluoride molecule and determine if the bond is a: a. Hydrogen bond 20) Look at the picture below of a lithium-fluoride molecule and determine if the bond is a: a. Hydrogen bond b. Ionic bond C. James bond d. Polar covalent bond
Click the "draw structure" button to launch the drawing utility. Draw the three-dimensional representation for the...

Click the "draw structure" button to launch the drawing utility. Draw the three-dimensional representation for the R enantiomer of the molecule shown below. Br、 CH3 draw structure

In the line angle drawing of the molecule shown below, what is the hybridization at the...

In the line angle drawing of the molecule shown below, what is the hybridization at the three carbon atom positions labeled "x", "Y", and "z"? НО ОН о осн, ОН One of several Lipoxin analogues о а.х = sp?. y sp. z = sp ob.x - sp?. y= sp?..= sp? осх= sp?. y = sp?, 2 sp? od.x sp?. y= sp. z sp? o ex sp?. y = sp?.z= sp? x sp у 2 sp ox = sp?. y =...
