A bar magnet is allowed to fall through a long hollow vertical coil which is connected...
A bar magnet is allowed to fall through a long hollow
vertical coil which is connected to a centre-zero
galvanometer.

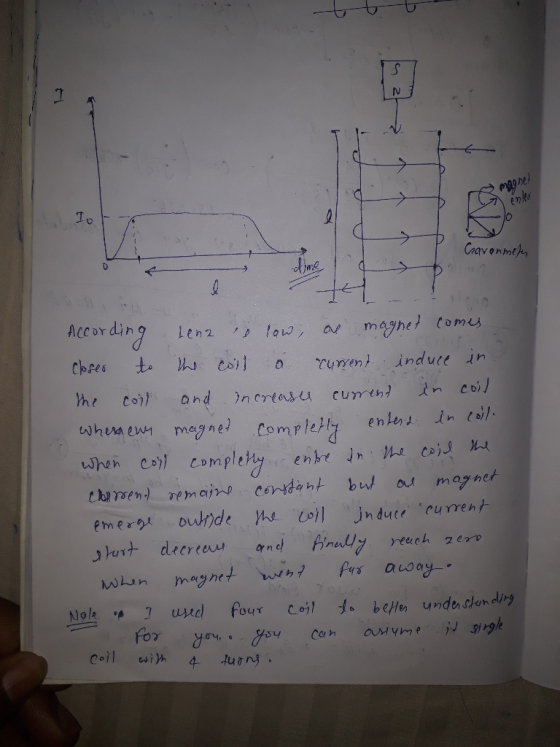

Draw a simulation of the fall and a current-time graph showing the
relationship between the current and time relating to the
experiment
Homework Answers
Add Answer to:
A bar magnet is allowed to fall through a long hollow
vertical coil which is connected...
423. In the illustration, a hollow coil of coated wire is connected to a galvanometer that...
423. In the illustration, a hollow coil of coated wire is connected to a galvanometer that measures small electric currents. A strong magnet moves to the left into the coil and through the coil, then exits the coil on the left. What would be the readings on the galvanometer? N S (A) The galvanometer would register a current in one direction as the (B) The galvanometer would register a current in one direction the entire (C) The galvanometer would register...
1. OBSERVATIONAL EXPERIMENT: HOW TO INDUCE A CURRENT IN A COIL NOT CONNECTED TO A BATTERY...
1. OBSERVATIONAL EXPERIMENT: HOW TO INDUCE A CURRENT IN A COIL NOT CONNECTED TO A BATTERY The goal of this experiment is to observe 2 sets of videos to find a pattern for the conditions under which there is a current through a coil of wire that is not connected to a battery. Available equipment: Computer with internet connection a) First, make sure you know what a galvanometer is. A galvanometer is a device that registers electric current through it....
What is the direction of the induced magnetic field in the coil when the bar magnet is moving...
A coil is suspended around an axis which is colinear with the axis of a bar magnet.The coil is connected to a resistor with ends labeled “a” and “b”. The bar magnet moves from left to right with North and South poles labeled as in the figure. UseLenz’s law to answer the following question concerning the direction of induced currents and magnetic fields.What is the direction of the induced magnetic field in the coil when the bar magnet ismoving from...
Magnetic induction lab: 5 questions A vertical bar magnet is dropped through the center of a...
Magnetic induction lab: 5 questions
A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading. At the moment just before the south pole passes through the loop, what is the direction of the induced current in the loop (viewed from above)? 2. Explain your answer to the previous question. 3. A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading....
1) Induced emf in a coil depends on a) Relative motion of magnet b) Relative motion...
1) Induced emf in a coil depends on a) Relative motion of magnet b) Relative motion of coil c) Both d) None 2) When is passed through coil is there magnet a a (changing/unchanging) magnetic flux through the coil that induces an electromotive force(emf) in the coil; the incoming flux is (equal /not equal)to the outgoing flux. 3) While a magnet is moved toward the end of a solenoid, a voltage difference is induced between the two ends of the...
A. The drawing shows a bar magnet falling through a metal ring. In part a the...
A. The drawing shows a bar magnet falling through a metal ring.
In part a the ring is solid all the way around, but in
part b it has been cut through.
1. Explain why the motion of the magnet in part a is
retarded when the magnet is above the ring and below the ring as
well.
2. Draw any induced currents that appear in the ring.
3. Explain why the motion of the magnet is unaffected by the...
answer all Q pls 8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direct...
answer all Q pls
8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direction of the induced current I in the loop is as shown by the arrows on the loop, the variation of I with time as the bar magnet falls through th by which of the following graphs (the time when the midpoint of...
Accessory Unit Arm Magnet Assembly Main Unit 121 のの のの Equipment: 1 current-carrying wire set-up 1...
Accessory Unit Arm Magnet Assembly Main Unit 121 のの のの Equipment: 1 current-carrying wire set-up 1 power supply 1 ammeter Investigation 3: Relationship between force and angle between the current through a current-carrying wire and the magnetic field In this section we will explore the relationship between the force on a current-carrying wire and the angle between the current and the magnetic field. a. Predict the dependence of the force on the angle between the current and the magnetic field....
plz do all 10 multible choises for the three pictures QUESTION 1 Curly electric fields, L.o....
plz do all 10 multible choises for the three pictures
QUESTION 1 Curly electric fields, L.o. non-Coulomb electric fields, can ONLY be generated by CHANGING magnetic fields True False QUESTION 2 The units of magnetic flux are T m? True False QUESTION 3 The coll encircles a solenold with a decreasing magnetic field; this results in an emf in the surrounding coll. There are 100 turns in the coil. The em through one turn of a collis 0.0001 V ignore...
please answer each section!! extremely important LABORATORY 9 MAGNETISM II: FORCE ON A CURRENT-CARRYING WIRE Objectives...
please answer each section!! extremely important
LABORATORY 9 MAGNETISM II: FORCE ON A CURRENT-CARRYING WIRE Objectives to be able to determine the magnitude and direction of the force on a current- carrying wire in a magnetic field to be able to apply Newton's Laws in magnetostatics to be able to experimentally determine the relationship between the force on a current-carrying wire in a magnetic field and the current through the wire to be able to experimentally determine the relationship between...
423. In the illustration, a hollow coil of coated wire is connected to a galvanometer that measures small electric currents. A strong magnet moves to the left into the coil and through the coil, then exits the coil on the left. What would be the readings on the galvanometer? N S (A) The galvanometer would register a current in one direction as the (B) The galvanometer would register a current in one direction the entire (C) The galvanometer would register...
1. OBSERVATIONAL EXPERIMENT: HOW TO INDUCE A CURRENT IN A COIL NOT CONNECTED TO A BATTERY The goal of this experiment is to observe 2 sets of videos to find a pattern for the conditions under which there is a current through a coil of wire that is not connected to a battery. Available equipment: Computer with internet connection a) First, make sure you know what a galvanometer is. A galvanometer is a device that registers electric current through it....
Magnetic induction lab: 5 questions
A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading. At the moment just before the south pole passes through the loop, what is the direction of the induced current in the loop (viewed from above)? 2. Explain your answer to the previous question. 3. A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading....
1) Induced emf in a coil depends on a) Relative motion of magnet b) Relative motion of coil c) Both d) None 2) When is passed through coil is there magnet a a (changing/unchanging) magnetic flux through the coil that induces an electromotive force(emf) in the coil; the incoming flux is (equal /not equal)to the outgoing flux. 3) While a magnet is moved toward the end of a solenoid, a voltage difference is induced between the two ends of the...
A. The drawing shows a bar magnet falling through a metal ring.
In part a the ring is solid all the way around, but in
part b it has been cut through.
1. Explain why the motion of the magnet in part a is
retarded when the magnet is above the ring and below the ring as
well.
2. Draw any induced currents that appear in the ring.
3. Explain why the motion of the magnet is unaffected by the...
answer all Q pls
8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direction of the induced current I in the loop is as shown by the arrows on the loop, the variation of I with time as the bar magnet falls through th by which of the following graphs (the time when the midpoint of...
Accessory Unit Arm Magnet Assembly Main Unit 121 のの のの Equipment: 1 current-carrying wire set-up 1 power supply 1 ammeter Investigation 3: Relationship between force and angle between the current through a current-carrying wire and the magnetic field In this section we will explore the relationship between the force on a current-carrying wire and the angle between the current and the magnetic field. a. Predict the dependence of the force on the angle between the current and the magnetic field....
plz do all 10 multible choises for the three pictures
QUESTION 1 Curly electric fields, L.o. non-Coulomb electric fields, can ONLY be generated by CHANGING magnetic fields True False QUESTION 2 The units of magnetic flux are T m? True False QUESTION 3 The coll encircles a solenold with a decreasing magnetic field; this results in an emf in the surrounding coll. There are 100 turns in the coil. The em through one turn of a collis 0.0001 V ignore...
please answer each section!! extremely important
LABORATORY 9 MAGNETISM II: FORCE ON A CURRENT-CARRYING WIRE Objectives to be able to determine the magnitude and direction of the force on a current- carrying wire in a magnetic field to be able to apply Newton's Laws in magnetostatics to be able to experimentally determine the relationship between the force on a current-carrying wire in a magnetic field and the current through the wire to be able to experimentally determine the relationship between...
