Tabulate the truth table for an 8x4 ROM that implements the Boolean functions. (a) A(X, Y,...

Tabulate the truth table for an 8x4 ROM that implements the Boolean functions.
(a) A(X, Y, Z) = Σm(1, 2, 4)
(b) B(X, Y, Z) = Σm(3, 5, 7)
(c) C(X, Y, Z) = Σm(1, 2, 6, 7)
(d) D(X, Y, Z) = Σm(2, 3, 5, 6, 7)

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Having any doubts please comment below. Thank you.

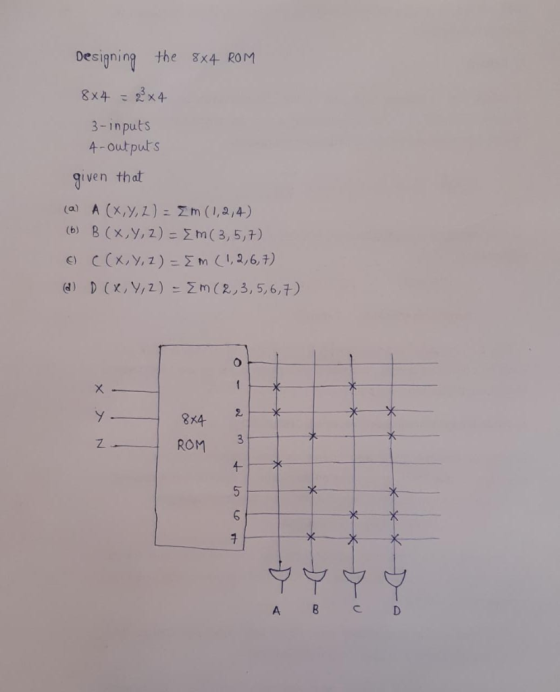

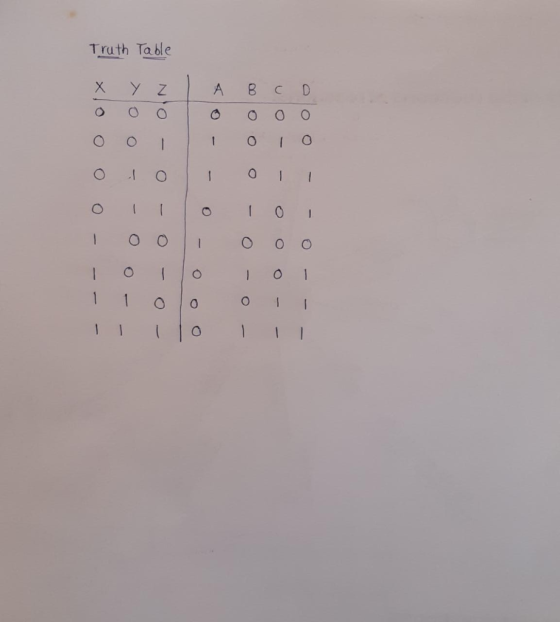

Designing the 8x4 ROM 8x4 = 2x4 3-inputs 4-outputs ven that gi (a) A (X,Y, 2) = Zm (1,2,4) (b) B (x,Y, 2) = Em(3,5,7) O C(X,Truth Table 1 1

3 0
