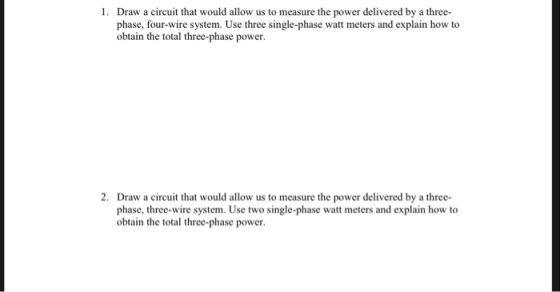

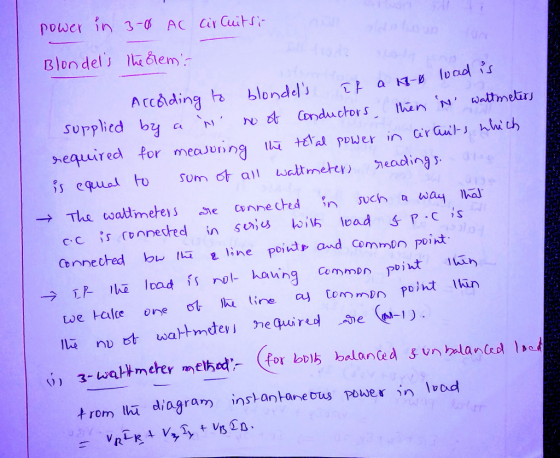

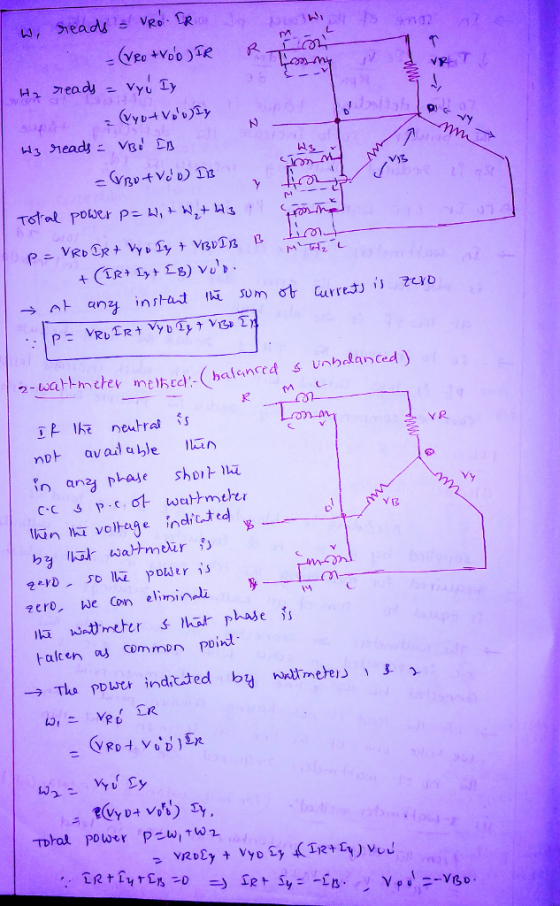

Draw a circuit that would allow us to measure the power delivered by a three- phase,...
A balanced 3 phase system is given with the following specifications: - The balanced system has...
A balanced 3 phase system is given with the following specifications: - The balanced system has a single delta-connected source and a single Y-connected load side. - Between the source and the load side there is the line_impedance = Rlinr+ jXline. - The average power and reactive power delivered form the source is Pin = 500 Watt and Qin = 500 VAR respectively. - The source side line voltage is Vline_source=100 Volt (rms). - The load side average and reactive...
Problem # 1: A three phase voltage source is supplying two three phase loads through a...
Problem # 1: A three phase voltage source is supplying two three phase loads through a transmission line as show in the following figure. The vab line to line voltage is given as vab 622cos(t30°)v a- Draw and carefully label the per phase equivalent circuit of the 3 phase system. b- Calculate total active and reactive power delivered by the three phase source 1+j10 2-j2Ω 646Ω 6-j6Ω 2-j2Ω 2-12Ω b 1+j10 6-j60 1+j10
52. In three-phase power systems, the delivered power a. falls to zero three times per cycle...
52. In three-phase power systems, the delivered power a. falls to zero three times per cycle b. falls to zero once per cycle c. never falls to zero d. none of the above 53. The three-phase connection in which one end of each of the windings are connected together is called the connection. a. delta b. wye c. open delta d. open wye 54. In a three phase connection, the voliage meaured direety across one of the winings is the...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two balanced three-phase loads that are connected in parallel. One of the loads is Y- connected with an impedance of (30 + j40) Ω per phase, and the other is delta- connected with an impedance of (60 + j45) Ω per phase. The line is energized at the sending end from a 60-Hz, three phase, balanced voltage source of 120√3 V (rms, line- to-line). Determine...
QUESTION 1 In the circuit shown below a three-phase, three-wire, Y-connected power system is driving a...
QUESTION 1 In the circuit shown below a three-phase, three-wire, Y-connected power system is driving a A-connected load. The generator line-to-line voltages are 150 V. The impedance of each phase of the load consists of a 6- resistance and a 8-inductive reactance. Determine the magnitude of the line current IA (in A). (Enter your answer as a decimal number without the units.) 3a, 3 wire Y-winacted generator Pane e ABC B! 150 V20
Explain how the switched reluctance motor (SRM) works. Draw the drive circuit for a three phase...
Explain how the switched reluctance motor (SRM) works. Draw the drive circuit for a three phase 12/8 SRM and explain the working states for one phase. Explain the operation of a current controlled SRM drive and propose a design for a suitable control system.
Consider the three-phase circuit below. Calculate the total active power, apparent power, S and the power...
Consider the three-phase circuit below. Calculate the total active power, apparent power, S and the power factor, PF points) a reactive power o. 480V ->/V2 W 302 12/A Active power: Reactive power: Apparent power: Power factor: VAR VA % - - 3 332 neutral Also draw a phasor diagram with is, ic and iz
The total instantaneous power in a balanced three phase circuit is a. Sinusoidal b. Dependent on...
The total instantaneous power in a balanced
three phase circuit is
a. Sinusoidal
b. Dependent on the configuration of the load (wye or delta)
c. 3 times the power in any 1 phase
d. Invariant with time
10) The total instantaneous power in a balanced three phase circuit is a) sinusoidal b) dependent on the configuration of the load (wye or delta) c) 3 times the power in any 1 phase d) invariant with time
Problem 3: The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit...
Problem 3: The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in Fig. 3 is 1200V. At this voltage, the load is absorbing 500kVA at 0.96 pf lag. a) Use Van as the reference and express Ina in the polar form. b) Calculate the complex power associated with the ideal three-phase source. c) Check that the total average power delivered equals the total average power absorbed. d) Check that the total magnetizing reactive power...
Need help solving the circuit with 120V 60Hz power network 21 Set up the circuit shown...
Need help solving the circuit with 120V 60Hz power network
21 Set up the circuit shown in Figure 3. + L1 11 + Ri E1 Xci R3. L2 X3 E2 Xc2 L3 12 XC1,XC2, XC3 R1,R2,R3 (O Local ac power network Frequency (Hz) Voltage (V) 240 171 60 120 880 629 50 220 960 686 50 240 Figure 3. Balanced, three-wire, delta-connected, three-phase circuit set up for power measurements using the two-wattmeter method. 22 in order to obtain the resistance...
Problem # 1: A three phase voltage source is supplying two three phase loads through a transmission line as show in the following figure. The vab line to line voltage is given as vab 622cos(t30°)v a- Draw and carefully label the per phase equivalent circuit of the 3 phase system. b- Calculate total active and reactive power delivered by the three phase source 1+j10 2-j2Ω 646Ω 6-j6Ω 2-j2Ω 2-12Ω b 1+j10 6-j60 1+j10
52. In three-phase power systems, the delivered power a. falls to zero three times per cycle b. falls to zero once per cycle c. never falls to zero d. none of the above 53. The three-phase connection in which one end of each of the windings are connected together is called the connection. a. delta b. wye c. open delta d. open wye 54. In a three phase connection, the voliage meaured direety across one of the winings is the...
QUESTION 1 In the circuit shown below a three-phase, three-wire, Y-connected power system is driving a A-connected load. The generator line-to-line voltages are 150 V. The impedance of each phase of the load consists of a 6- resistance and a 8-inductive reactance. Determine the magnitude of the line current IA (in A). (Enter your answer as a decimal number without the units.) 3a, 3 wire Y-winacted generator Pane e ABC B! 150 V20
Consider the three-phase circuit below. Calculate the total active power, apparent power, S and the power factor, PF points) a reactive power o. 480V ->/V2 W 302 12/A Active power: Reactive power: Apparent power: Power factor: VAR VA % - - 3 332 neutral Also draw a phasor diagram with is, ic and iz
The total instantaneous power in a balanced
three phase circuit is
a. Sinusoidal
b. Dependent on the configuration of the load (wye or delta)
c. 3 times the power in any 1 phase
d. Invariant with time
10) The total instantaneous power in a balanced three phase circuit is a) sinusoidal b) dependent on the configuration of the load (wye or delta) c) 3 times the power in any 1 phase d) invariant with time
Problem 3: The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in Fig. 3 is 1200V. At this voltage, the load is absorbing 500kVA at 0.96 pf lag. a) Use Van as the reference and express Ina in the polar form. b) Calculate the complex power associated with the ideal three-phase source. c) Check that the total average power delivered equals the total average power absorbed. d) Check that the total magnetizing reactive power...
Need help solving the circuit with 120V 60Hz power network
21 Set up the circuit shown in Figure 3. + L1 11 + Ri E1 Xci R3. L2 X3 E2 Xc2 L3 12 XC1,XC2, XC3 R1,R2,R3 (O Local ac power network Frequency (Hz) Voltage (V) 240 171 60 120 880 629 50 220 960 686 50 240 Figure 3. Balanced, three-wire, delta-connected, three-phase circuit set up for power measurements using the two-wattmeter method. 22 in order to obtain the resistance...
