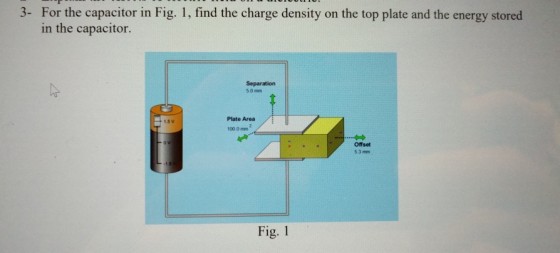

separation between plates is 5 mm, plate area 100m^2, offset is 5.3mm, assume dielectric constant of 2
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
separation between plates is 5 mm, plate area 100m^2,
offset is 5.3mm, assume dielectric constant of...
For a parallel-plate capacitor, the plate area is A = 110 mm2, the plate separation is...
For a parallel-plate capacitor, the plate area is A = 110 mm2, the plate separation is d = 2.5 mm, and the filling dielectric constant εr is 15. (A) Calculate the capacitance of the capacitor: (Unit: pF) (B) After connecting a 11 V battery across the capacitor, calculate E, D, Q, and the total stored electrostatic energy We. (B1) Find the electric filed intensity (E) inside the capacitor: (Unit: V/m) (B2) Find the electric flux density (D) inside the capacitor:...
A parallel plate, air filled capacitor, has plates of area 0.81 m2 and a separation of...
A parallel plate, air filled capacitor, has plates of area 0.81 m2 and a separation of 0.050 mm. (a) Find the capacitance in nF (b) If a voltage of 25 volts is applied to the capacitor, what is the magnitude of the charge on each plate in µC? (c) What is the energy stored in the capacitor in µJ? Now the plates are filled with water having a dielectric constant of 78.5. (d) What is the energy stored in the...
Two parallel plates, each having area A 3676cm are connected to the terminals of a battery of voltage V, 6 V A as shown...
Two parallel plates, each having area A 3676cm are connected to the terminals of a battery of voltage V, 6 V A as shown. The plates are separated by a distance d 0.42cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate + A 1) What is C, the capacitance of this parallel plate capacitor? 7.746E-4 uF Submit 2) What is Q, the charge stored on...
A parallel-plate capacitor has plates with an area of 1.0×10−2 m2 and a separation of 0.82...
A parallel-plate capacitor has plates with an area of 1.0×10−2 m2 and a separation of 0.82 mm . The space between the plates is filled with a dielectric whose dielectric constant is 2.1. A. What is the potential difference between the plates when the charge on the capacitor plates is 4.2 μC ? B. Will your answer to part A increase, decrease, or stay the same if the dielectric constant is increased?
Two parallel plates, each having area A- 2737cm are connected to the terminals of a battery...
Two parallel plates, each having area A- 2737cm are connected to the terminals of a battery of voltage Vb 6 V as shown. The plates are separated by a distance d 0.38cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate 1) What is C, the capacitance of this parallel plate capacitor? Submit 2) What is Q, the charge stored on the top plate of the...
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the...
A certain parallel plate capacitor has plate area A = 400 cm^2
and separation between the plates is d=0.1 mm. The space between
the plates is filled with a material that has dielectric constant k
=3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt
battery is connected across the capacitor. Draw circuit diagram.
Determine
(a) charge on the capacitor;
(b) resistance between the plates
( c ) current that leaks through the capacitor. (the leakage...
A parallel-plate capacitor (air-filled gap, dielectric constant = 1) is constructed with plates of area 0.028...
A parallel-plate capacitor (air-filled gap, dielectric constant = 1) is constructed with plates of area 0.028 m^2 and separation 0.550 mm. Find magnitude of the charge on each plate of this capacitor when the voltage difference between the plates is 20.1 V. a.) 3.5*10^(-9) C b.) 9.1*10^(-9) C c.) 6.6*10^(-9) C d.) 1.5*10^(-9) C
Two parallel plates, each having area A = 2082cm2 are connected to the terminals of a...
Two parallel plates, each having area A = 2082cm2 are
connected to the terminals of a battery of voltage Vb =
6 V as shown. The plates are separated by a distance d = 0.54cm.
You may assume (contrary to the drawing) that the separation
between the plates is small compared to a linear dimension of the
plate.
1)What is C, the capacitance of this parallel plate
capacitor?μF
2)What is Q, the charge stored on the top plate of the...
A parallel plate capacitor has square plates of dimensions 5 times 5 cm and separation 2...
A parallel plate capacitor has square plates of dimensions 5 times 5 cm and separation 2 mm. The space between the plates is filled with a material of dielectric constant K= 4. The charges on the plates are plusminus 5 times 10^-8 C. Find: the capacitance; the potential difference between the plates; the magnitude of the electric field between the plates; the electric energy density between the plates; and the total electric energy.
The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials
Problem 5 The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials. The slab at the top has thickness 2d and a relative dielectric constant of er1 = 3 and the one at the bottom has thickness d and a relative dielectric constant of er2 = 2. The capacitor plates have surface area S. a. Assume a total charge of +Q on the top plate and -Q on the bottom plate. Find...
Two parallel plates, each having area A 3676cm are connected to the terminals of a battery of voltage V, 6 V A as shown. The plates are separated by a distance d 0.42cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate + A 1) What is C, the capacitance of this parallel plate capacitor? 7.746E-4 uF Submit 2) What is Q, the charge stored on...
Two parallel plates, each having area A- 2737cm are connected to the terminals of a battery of voltage Vb 6 V as shown. The plates are separated by a distance d 0.38cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate 1) What is C, the capacitance of this parallel plate capacitor? Submit 2) What is Q, the charge stored on the top plate of the...
A certain parallel plate capacitor has plate area A = 400 cm^2
and separation between the plates is d=0.1 mm. The space between
the plates is filled with a material that has dielectric constant k
=3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt
battery is connected across the capacitor. Draw circuit diagram.
Determine
(a) charge on the capacitor;
(b) resistance between the plates
( c ) current that leaks through the capacitor. (the leakage...
Two parallel plates, each having area A = 2082cm2 are
connected to the terminals of a battery of voltage Vb =
6 V as shown. The plates are separated by a distance d = 0.54cm.
You may assume (contrary to the drawing) that the separation
between the plates is small compared to a linear dimension of the
plate.
1)What is C, the capacitance of this parallel plate
capacitor?μF
2)What is Q, the charge stored on the top plate of the...
A parallel plate capacitor has square plates of dimensions 5 times 5 cm and separation 2 mm. The space between the plates is filled with a material of dielectric constant K= 4. The charges on the plates are plusminus 5 times 10^-8 C. Find: the capacitance; the potential difference between the plates; the magnitude of the electric field between the plates; the electric energy density between the plates; and the total electric energy.
