{Please plot y(t) by matlab} y" -2y' + 10y=0 y(0)=1, y'(0)=0
{Please plot y(t) by matlab} y" -2y' + 10y=0 y(0)=1, y'(0)=0
Homework Answers
Hey,
Below is the code to your question
clc
clear all
syms y(t) sol(t)
eq = diff(y,t,2)-2*diff(y,t,1)+10*y == 0;
dify = diff(y,t);
condition = [y(0)==1, dify(0)==0];
sol(t) = dsolve(eq,condition);

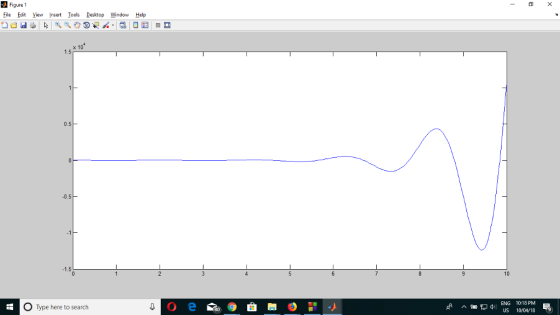

fplot(sol,[0 10]);
Kindly revert for any queries
Thanks
