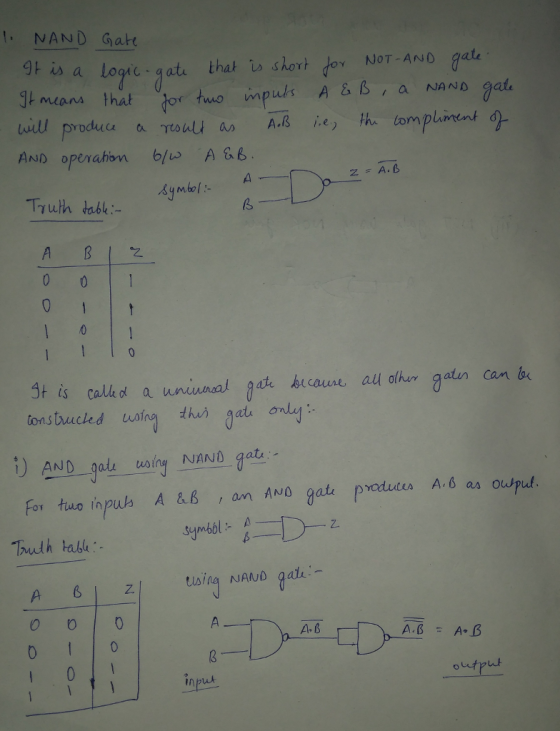

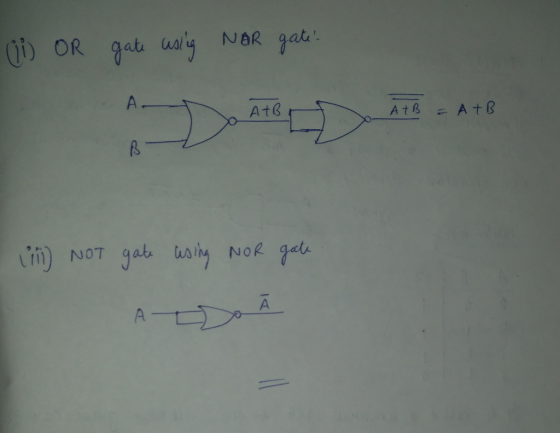

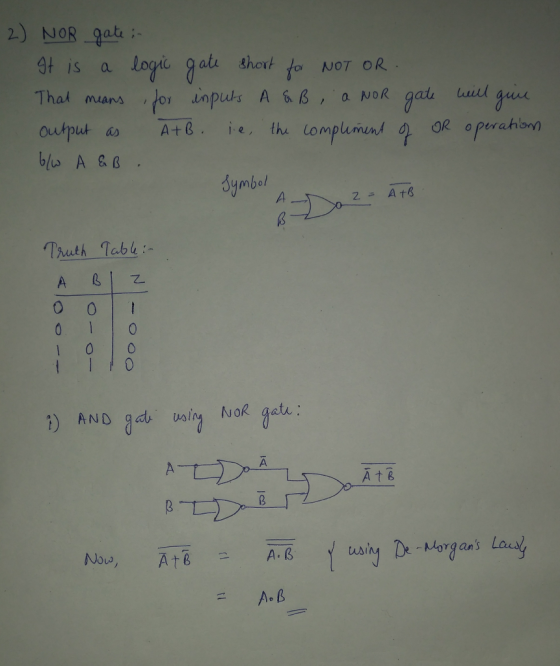

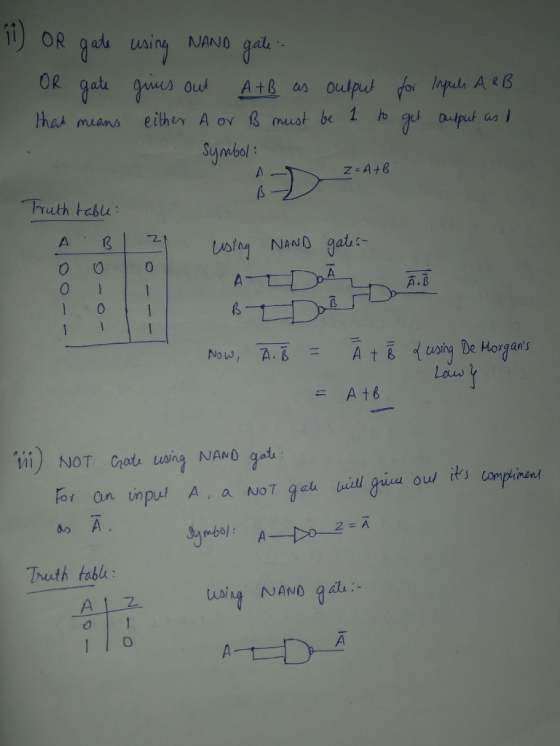

14. NAND and NOR are said to be universal gates because each and every gate can be made from these two gates Make AND, OR and NOT gates using just NAND gates. Make AND, OR and NOT gates using just NOR gates.
