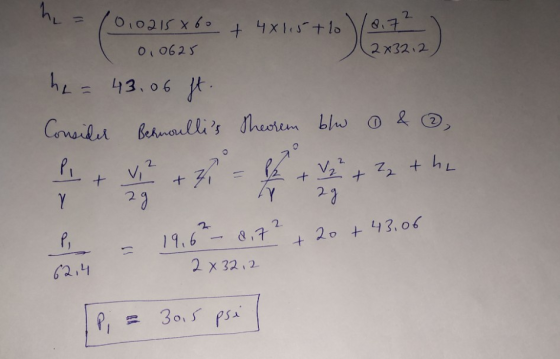

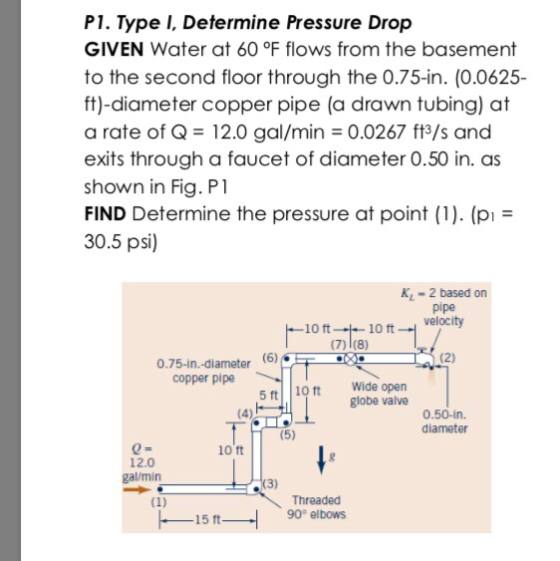

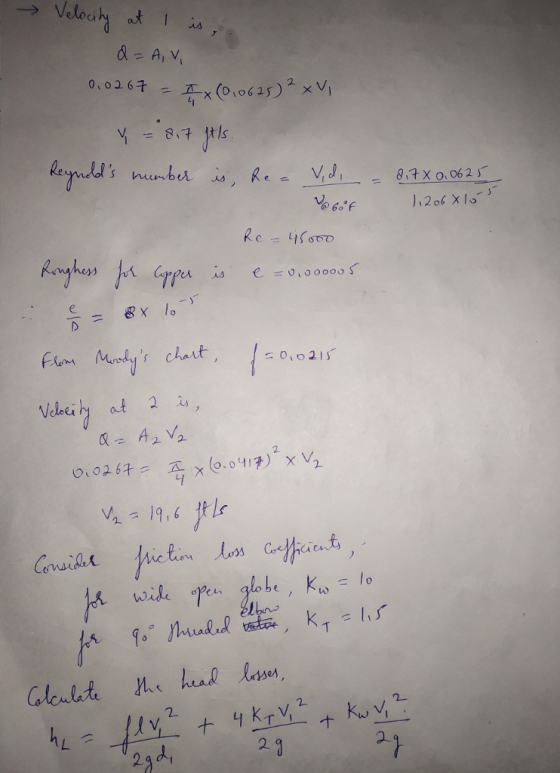

P1. Type I, Determine Pressure Drop GIVEN Water at 60 oF flows from the basement to...
Water with density of p=1.94 slug/ft3 and dynamic viscosity of 2.34X10-5 slug/ft.s flows from the basement...
Water with density of p=1.94 slug/ft3 and dynamic viscosity of 2.34X10-5 slug/ft.s flows from the basement to the second floor through the 0.75 in (0.0625 ft)-diameter copper pipe (a drawn tubing wit e=0.000005 ft) at a rate of Q=12.0 gal/min=0.0267 ft3/s and exits through a faucet of diameter 0.50 in. as shown in the figure K1 = 2 based on pipe velocity -10 ft- 10 ft (7)|(8) (2) (6) 0.75-in.-diameter copper pipe 5 ft 10 ft Wide open globe valve...
Optional- Quiz 12 Instructor Trung Bao Le, PhD, Dept. CEE, NDSU CE309-Fluid Mechanics-Fall 2018 November 17,...
Optional- Quiz 12 Instructor Trung Bao Le, PhD, Dept. CEE, NDSU CE309-Fluid Mechanics-Fall 2018 November 17, 2018 Due date: 9:00 AM Wednesday, November 21, 2018 Question Water flows from the basement to the second floor through the 0.75-in- diameter copper pipe (e 0.000005 ft) at a flow rate 12.0gal/min- 0.0267ft% and exits through a faucet of diameter 0.5 in as shown in Figure 1. The minor loss coefficients of the components are: K 1.5 for each elbow K10 for the...
The cold-water faucet in a house feeds from a water main where the pressure is 50...
The cold-water faucet in a house feeds from a water main where the pressure is 50 psig. The system consists of 200 ft of 0.5 inch ID galvanized pipe, three 90 degree standard elbows, a fully opened gate valve, and a faucet. The faucet can be modeled by considering it to be a conventional globe valve followed by a nozzle with an ID of 0.25 inch. If the water is at 60 degrees F, find the flow rate through the...
4. (25pts) A clothes dryer is installed in a basement. Air leaving the clothes dryer passes...
4. (25pts) A clothes dryer is installed in a basement. Air leaving the clothes dryer passes through an exhaust duct. The exhaust duct is made from a 4in diameter corrugated metal pipe which is 8ft long. Assume that relative roughness =0.015. The exhaust duct also contains two elbows, each with a K value of K=0.75. The outlet has a K value of K=0.50. Head loss in the elbows and the outlet is given by hq=K". Assume that the air flow...
(100 points) Water at 25°C is pumped at a rate of 0.075m's from a reservoir 20m above a pump to a free 1....
(100 points) Water at 25°C is pumped at a rate of 0.075m's from a reservoir 20m above a pump to a free 1. discharge (this means discharged to atmosphere) 35m above the pump. The pressure on the intake side of the pump is 150kPa and the pressure on the discharge side of the pump is 450kPa. The pipe between the reservoir and the pump is 3 meters of Sin diameter cast iron. From the pump to the discharge the pipe...
Water with density of p=1.94 slug/ft3 and dynamic viscosity of 2.34X10-5 slug/ft.s flows from the basement to the second floor through the 0.75 in (0.0625 ft)-diameter copper pipe (a drawn tubing wit e=0.000005 ft) at a rate of Q=12.0 gal/min=0.0267 ft3/s and exits through a faucet of diameter 0.50 in. as shown in the figure K1 = 2 based on pipe velocity -10 ft- 10 ft (7)|(8) (2) (6) 0.75-in.-diameter copper pipe 5 ft 10 ft Wide open globe valve...
Optional- Quiz 12 Instructor Trung Bao Le, PhD, Dept. CEE, NDSU CE309-Fluid Mechanics-Fall 2018 November 17, 2018 Due date: 9:00 AM Wednesday, November 21, 2018 Question Water flows from the basement to the second floor through the 0.75-in- diameter copper pipe (e 0.000005 ft) at a flow rate 12.0gal/min- 0.0267ft% and exits through a faucet of diameter 0.5 in as shown in Figure 1. The minor loss coefficients of the components are: K 1.5 for each elbow K10 for the...
4. (25pts) A clothes dryer is installed in a basement. Air leaving the clothes dryer passes through an exhaust duct. The exhaust duct is made from a 4in diameter corrugated metal pipe which is 8ft long. Assume that relative roughness =0.015. The exhaust duct also contains two elbows, each with a K value of K=0.75. The outlet has a K value of K=0.50. Head loss in the elbows and the outlet is given by hq=K". Assume that the air flow...
(100 points) Water at 25°C is pumped at a rate of 0.075m's from a reservoir 20m above a pump to a free 1. discharge (this means discharged to atmosphere) 35m above the pump. The pressure on the intake side of the pump is 150kPa and the pressure on the discharge side of the pump is 450kPa. The pipe between the reservoir and the pump is 3 meters of Sin diameter cast iron. From the pump to the discharge the pipe...
